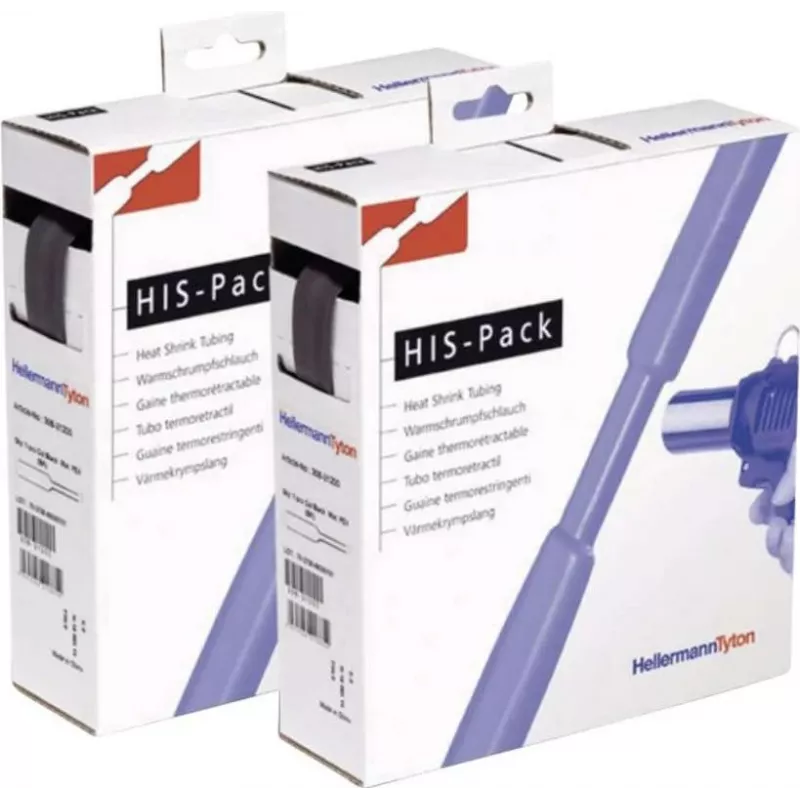

HellermannTyton 300-30320 kutistesukka - polyolefiini - musta - 3,0 mm sisähalkaisija - 100 m rulla

The HellermannTyton 300-30320 is a high-quality heat shrink tubing made from cross-linked polyolefin, designed for reliable insulation, protection, and strain relief of electrical connections and cables. With a 2:1 shrink ratio and a supplied inner diameter of 3.0 mm, it shrinks to 1.5 mm upon heating, providing a tight, secure fit. This black tubing is supplied in a 100-meter roll, making it ideal for bulk applications in electrical, automotive, and industrial environments.

Advantages

Excellent electrical insulation with dielectric strength of 20 kV/mm. Flexible and durable with good UV and chemical resistance. Flame retardant (UL94 V2) and compliant with UL 224 and CSA standards. Easy to install with a minimum shrink temperature of +90°C.

Suitable for

• Insulating and protecting wire splices and terminals
• Strain relief for connectors and cable assemblies
• Color-coding and identification of cables
• Bundling and organizing wires in control panels and harnesses

Key specifications

• Material: Cross-linked Polyolefin
• Shrink Ratio: 2:1
• Supplied Inner Diameter: 3.0 mm
• Recovered Inner Diameter: 1.5 mm
• Recovered Wall Thickness: 0.50 mm
• Colour: Black
• Length: 100 m
• Operating Temperature Range: -55 °C to +135 °C
• Minimum Shrink Temperature: +90 °C
• Dielectric Strength: 20 kV/mm
• Tensile Strength: 15 MPa
• Flammability Rating: UL94 V2
• Halogen-Free: No
• UV Resistance: Good
• Chemical Resistance: Good
• Standards/Approvals: UL 224 125°C VW-1, CSA C 22.2 No. 198.1 125°C OFT, RoHS Compliant
• Packaging Type: Roll

Recommendations

For best results, use a heat gun or infrared heater to shrink the tubing evenly. Ensure the tubing is fully recovered before cooling. Suitable for a wide range of applications including automotive, marine, and industrial electrical systems.
