HellermannTyton ACFM5W8PT4,5 nippusidepidike DIN-kiskoon, iskunkestävä PA66, musta, 25 kpl 151-03245

Impact-resistant cable tie mount for 35 mm DIN rails, built from halogen-free, impact-modified polyamide 6.6 and rated for continuous use from -40 °C to +105 °C.

Overview

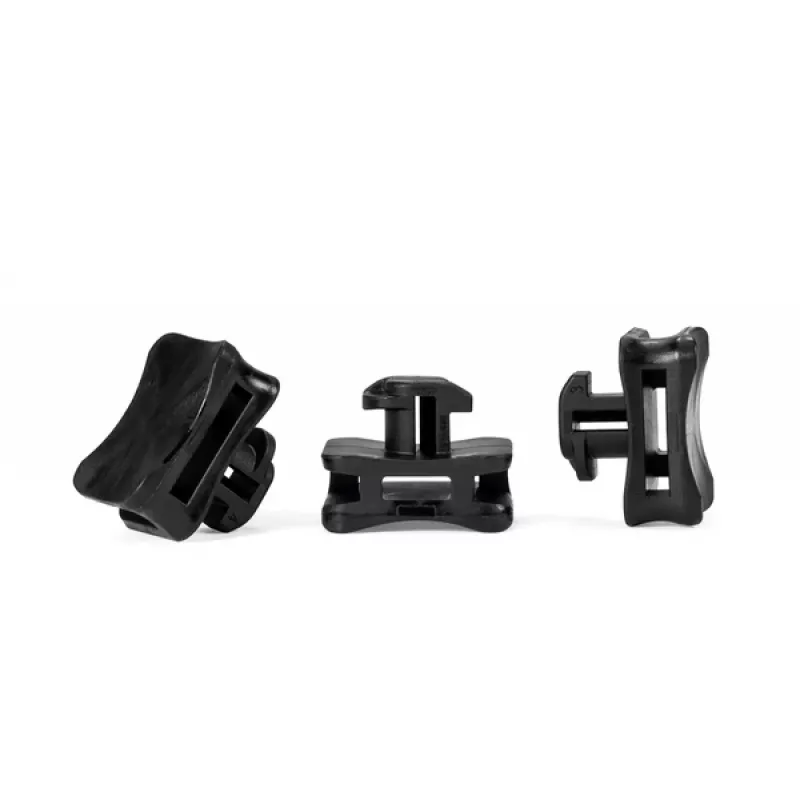

The HellermannTyton ACFM5W8PT4,5 is a clip-on cable tie mount designed for secure cable management in control cabinets and enclosures. It snaps directly onto EN 60715 TH35 (35 mm) profile rails, providing a stable anchor point for cable ties up to 8.1 mm wide. The black, high-impact PA66HIR material withstands mechanical stress and harsh industrial environments, while the halogen-free composition supports safer fire behaviour.

What stands out

• High impact resistance thanks to impact-modified polyamide 6.6
• Tool-free clip-on installation on standard 35 mm DIN rails
• Accepts cable ties up to 8.1 mm width
• Wide operating temperature range: -40 °C to +105 °C
• Halogen-free and UL94 V2 flammability rated
• Pack of 25 pieces for efficient stocking

Technical details

• Product type: Cable tie mount
• Mounting type: Profile rail (DIN rail)
• Rail compatibility: EN 60715 TH35 (35 mm DIN rail)
• Material: Polyamide 6.6, impact modified (PA66HIR)
• Colour: Black
• Max. cable tie width: 8.1 mm
• Operating temperature range: -40 °C to +105 °C
• Flammability rating: UL94 V2
• Halogen-free: Yes
• RoHS compliant: Yes
• Pack quantity: 25 pieces

Our verdict

A rugged, reliable DIN rail mount that simplifies cable routing in demanding electrical installations. The impact-modified material and broad temperature range make it a solid choice for industrial control panels.
