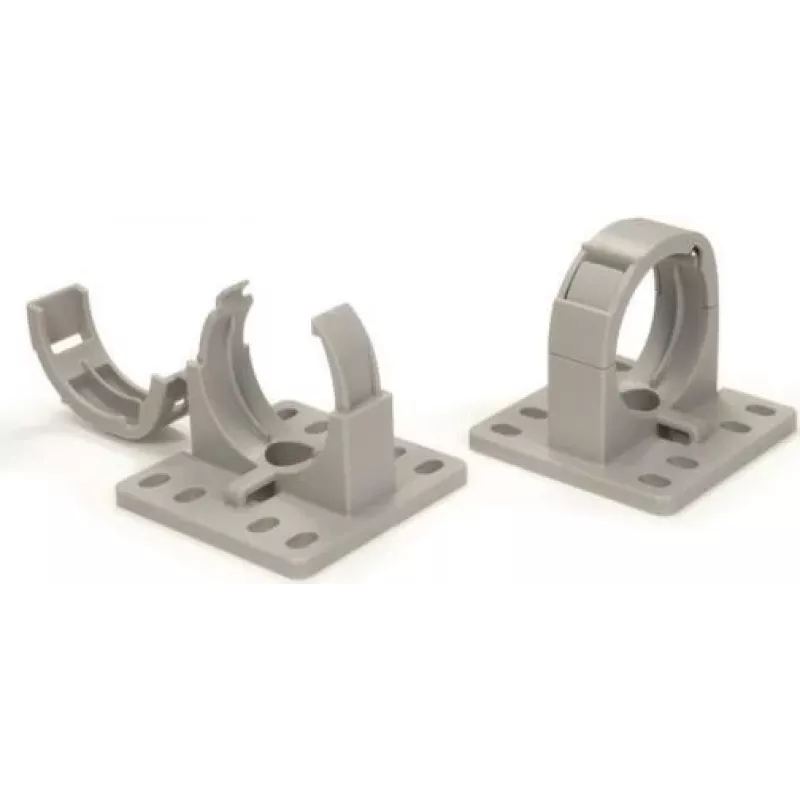

HellermannTyton CTCC-IWS17-MB43-PA66/6HIRHS-GY aaltoputkikiinnike, tarra-alusta, 17 mm, harmaa

The HellermannTyton CTCC-IWS17-MB43-PA66/6HIRHS-GY is a high-quality corrugated conduit holder designed for secure and reliable cable management. Featuring an adhesive base with synthetic rubber adhesive, it provides easy and quick installation on smooth surfaces. The holder is made from impact-modified, heat-stabilised polyamide 6.6 (PA66HIRHS), ensuring excellent durability and performance in demanding environments.

Advantages

This conduit holder offers a robust and cost-effective solution for routing and securing corrugated conduits. The adhesive mounting eliminates the need for drilling or additional hardware, saving time and labour. Its high-impact and heat-stabilised material ensures long-lasting performance even in harsh conditions. The holder is halogen-free and has a UL94 V2 flammability rating, contributing to safety in electrical installations.

Suitable for

• Industrial cable management systems
• Automotive wiring harnesses
• Electrical panel installations
• General building and construction applications

Key specifications

• Product Type: Corrugated Conduit Holder
• Mounting Type: Adhesive Base
• Compatible Conduit Nominal Width: 17 mm
• Compatible Conduit Outer Diameter: 17.0 mm
• Material: Polyamide 6.6 (PA66HIRHS), High Impact Modified, Heat Stabilised
• Colour: Grey
• Adhesive Type: Synthetic Rubber
• Base Dimensions (L x W): 43.0 x 43.0 mm
• Overall Height: 25.5 mm
• Operating Temperature Range: -40 °C to +105 °C
• Flammability Rating: UL94 V2
• Halogen-Free: Yes
• UV Resistance: No
• Recommended Application Temperature (Adhesive): +18 °C to +35 °C
• Series: CTCC-IWS

Recommendations

For optimal adhesion, ensure the mounting surface is clean, dry, and free of grease or dust. Apply the holder at the recommended temperature range for best results. This product is ideal for use with HellermannTyton corrugated conduits of NW17.
