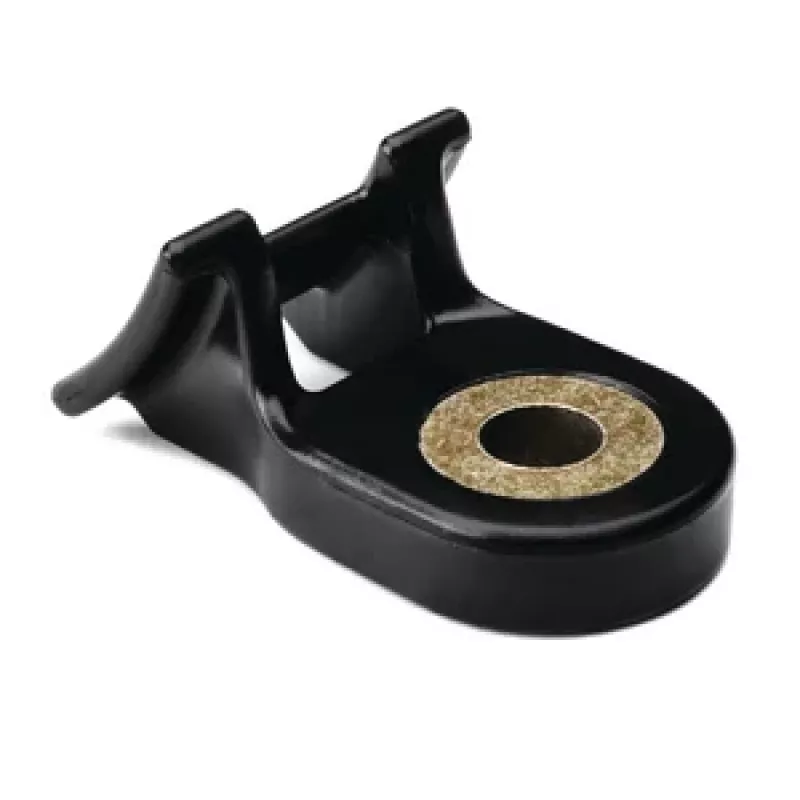

HellermannTyton HDM320-PA66HIRHSUV-BK ruuvattava asennusalusta, musta, 32x32 mm, PA66HIRHSUV, 1 kpl 151-02094

Built from high-impact resistant, heat-stabilized, UV-resistant polyamide 6.6, this screwable mounting base withstands temperatures from -40 °C to +105 °C, making it suitable for demanding indoor and outdoor cable management.

Overview

The HellermannTyton HDM320-PA66HIRHSUV-BK is a screwable mounting base designed for securing cable ties with a maximum width of 8.0 mm. Its compact 32 x 32 mm footprint and 6.7 mm height allow for discreet installation in tight spaces.

What stands out

• High impact resistant, heat stabilized, and UV resistant PA66HIRHSUV material
• Wide operating temperature range: -40 °C to +105 °C
• UL94 V2 flammability rating
• Halogen-free and RoHS compliant
• Accepts M5 screws through a 5.3 mm mounting hole

Technical details

• Material: Polyamide 6.6 (PA66HIRHSUV)
• Colour: Black
• Length: 32.0 mm
• Width: 32.0 mm
• Height: 6.7 mm
• Screw hole diameter: 5.3 mm
• Recommended screw size: M5
• Max. cable tie width: 8.0 mm
• Operating temperature: -40 °C to +105 °C
• Flammability rating: UL94 V2
• Material properties: High impact resistant, heat stabilized, UV resistant
• Application environment: Indoor/Outdoor
• Product series: HDM
• RoHS compliant: Yes
• Halogen-free: Yes
• Quantity per pack: 1 piece

Our verdict

A robust and reliable mounting base for professional cable fixing in harsh environments, offering excellent durability and ease of installation.
