Hellermann Tyton 435-01509 sinkkilankaliitin maadoitukseen, 1,5–16 mm², ruuviliitin

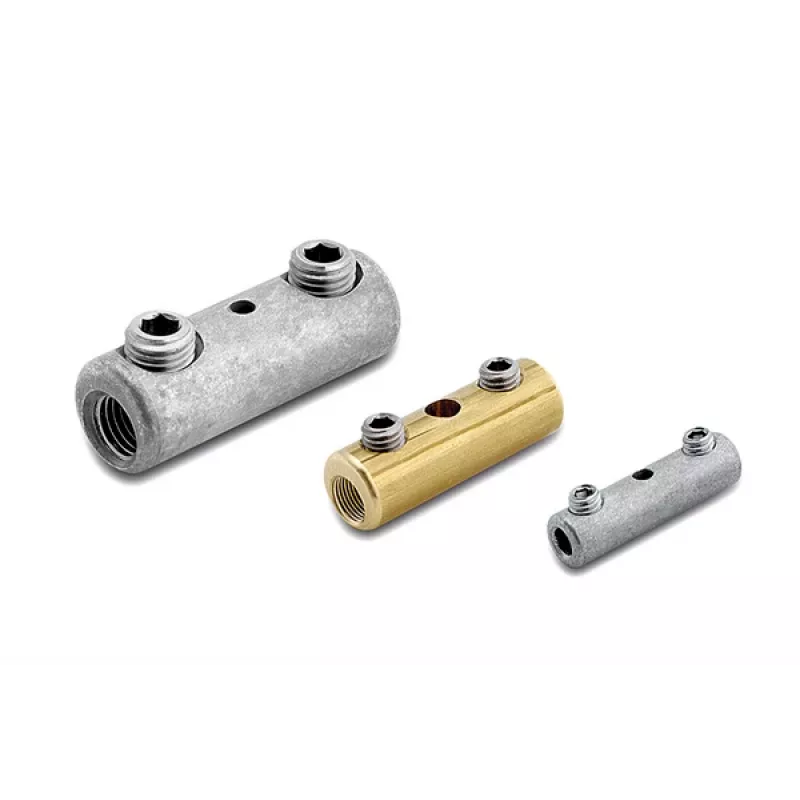

The Hellermann Tyton 435-01509 is a zinc wire connector engineered specifically for grounding and earthing applications. Unlike generic connectors, its solid zinc construction provides excellent corrosion resistance and reliable electrical continuity, making it suitable for both solid and stranded conductors from 1.5 mm² to 16 mm².

Highlights

• Material: Zinc – durable and corrosion-resistant
• Connection method: Screw terminal with M4 wire clamp screw
• Conductor compatibility: Solid and stranded, 1.5–16 mm²
• Operating temperature: -40 °C to +100 °C
• Surface mount / direct mounting

In daily use

This connector is intended for surface mounting or direct mounting in electrical installations where a secure grounding connection is required. The screw terminal ensures a firm mechanical and electrical bond, while the bare metal design (no insulation) allows for direct contact with grounding conductors.

Full specifications

• Product type: Wire connector
• Material: Zinc
• Application: Grounding / Earthing
• Minimum wire cross section: 1.5 mm²
• Maximum wire cross section: 16 mm²
• Conductor type compatibility: Solid and stranded
• Connection method: Screw terminal
• Wire clamp screw size: M4
• Mounting type: Surface mount / Direct mounting
• Operating temperature range: -40 °C to +100 °C
• Colour: Metallic grey
• Number of connections: 1
• Insulation material: None (bare metal)
• Packaging unit: 1 piece

Final note

A reliable zinc grounding connector for professional electrical installations.
