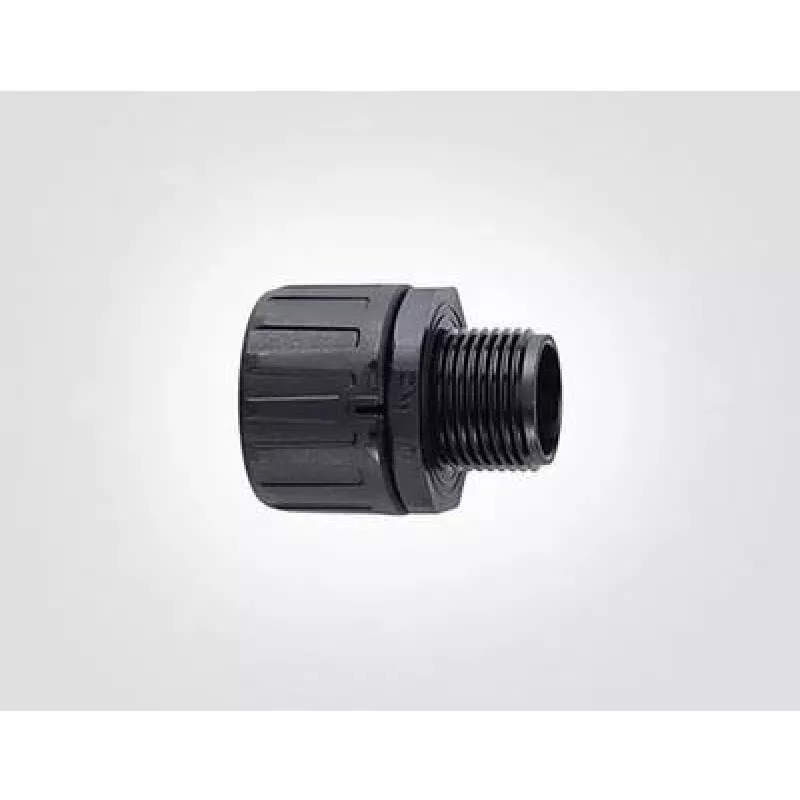

HellermannTyton HG25-S-M25 PA66 BK 10 suora liitäntä, M25 kierre, 25 mm kanava, musta

Straight connector for HellermannTyton HG series conduits, providing a secure metric M25 threaded connection with IP66, IP67, IP68, and IP69K protection when properly installed. Its robust polyamide 6.6 construction ensures reliable performance in demanding environments.

Advantages

Made from halogen-free, UV-resistant PA66, this connector withstands temperatures from -40 °C to +120 °C, with short-term exposure up to +150 °C. It offers good resistance to oils, greases, fuels, alkalis, and weak acids, and meets UL94 V2 flammability standards.

Suitable for

• Protecting cable runs in industrial machinery and control panels
• Outdoor installations requiring high IP protection and UV stability
• Applications with exposure to chemicals and temperature fluctuations

Key specifications

• Product type: Straight connector
• Conduit series: HellermannTyton HG
• Nominal conduit size: 25 mm
• Thread type: Metric M25
• Material: Polyamide 6.6 (PA66)
• Colour: Black
• IP rating: IP66, IP67, IP68, IP69K (when properly installed)
• Operating temperature: -40 °C to +120 °C
• Short-term temperature: +150 °C
• Flammability rating: UL94 V2
• Halogen-free: Yes
• UV resistant: Yes
• Chemical resistance: Good against oils, greases, fuels, alkalis, weak acids
• Connection design: Straight
• Mounting type: External thread

Recommendations

For optimal sealing and IP protection, pair with HellermannTyton HG conduits and ensure proper tightening of the metric thread.
