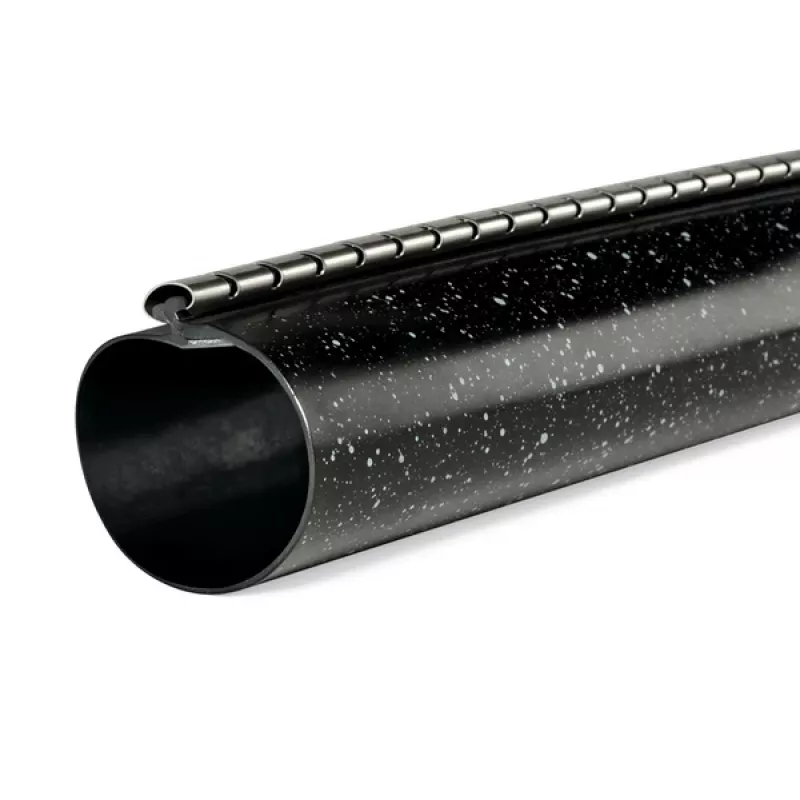

HellermannTyton HIS-3 kutistesukka 3:1 6 mm musta 200 mm pituus 250 kpl

The HellermannTyton HIS-3 heat shrink tubing offers reliable insulation and protection for electrical connections and cables. With a 3:1 shrink ratio, it fits a wide range of diameters and provides a tight, secure seal. Made from cross-linked polyolefin, this tubing is halogen-free, UV resistant, and self-extinguishing (UL224 VW-1). Each piece is 200 mm long, and the pack contains 250 pieces, making it ideal for professional and industrial applications.

Advantages

High shrink ratio (3:1) allows for versatile use on various cable sizes. Excellent dielectric strength (20 kV/mm) and tensile strength (15 MPa) ensure durable performance. Operating temperature range from -55 °C to +135 °C suits demanding environments. Halogen-free and UV resistant for long-term reliability.

Suitable for

• Insulating electrical connections and splices
• Protecting cables from moisture, abrasion, and chemicals
• Color-coding and bundling wires
• Repairing damaged cable insulation

Key specifications

• Product Type: Heat Shrink Tubing
• Series: HIS-3
• Shrink Ratio: 3:1
• Inner Diameter (before shrink): 6 mm
• Inner Diameter (after shrink): 2 mm
• Wall Thickness (recovered): 0.60 mm
• Material: Cross-linked Polyolefin
• Color: Black
• Length per Piece: 200 mm
• Quantity per Pack: 250 pieces
• Operating Temperature Range: -55 °C to +135 °C
• Minimum Shrink Temperature: +90 °C
• Dielectric Strength: 20 kV/mm
• Tensile Strength: 15 MPa
• Flammability Rating: UL224 VW-1 (Self-extinguishing)
• Halogen-free: Yes
• UV Resistant: Yes
• Chemical Resistance: Good
• Approvals: RoHS, UL224 VW-1

Recommendations

For best results, use a heat gun or hot air blower to shrink the tubing evenly. Ensure the tubing is fully recovered and adheres tightly to the substrate. Suitable for a wide range of applications in electrical, automotive, and industrial sectors.
