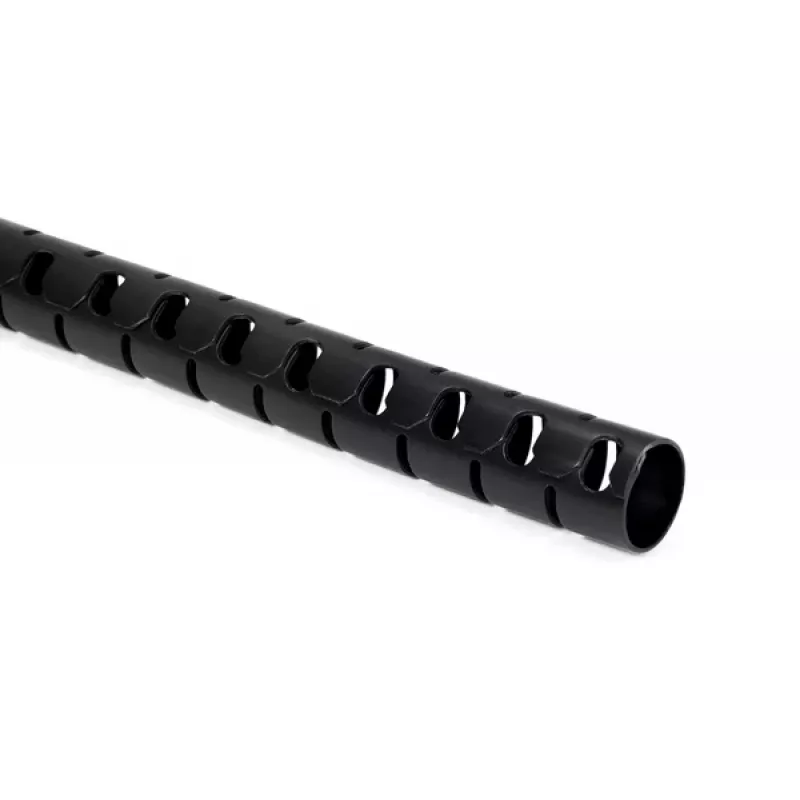

HellermannTyton HWPAV025-PA6V0-BK (25) uritettu aaltoputki, polyamidi 6, musta, 25 m 161-63401

The HellermannTyton HWPAV025-PA6V0-BK stands out with its high flexibility and UL94 V0 flame-retardant polyamide 6 construction, making it suitable for demanding cable protection and routing applications. Its corrugated, slit design allows for easy installation over existing cables or harnesses without disconnection.

Highlights

• Material: Polyamide 6 (PA6) with UL94 V0 flame retardancy
• Colour: Black
• Length: 25 m
• Nominal diameter: 25 mm; inner diameter 23.0 mm; outer diameter 28.5 mm
• Operating temperature: -40 °C to +120 °C, short-term up to +150 °C
• Halogen-free, UV-resistant, and highly flexible
• EN 45545-2 HL3 (R22, R23) approved

In daily use

This conduit provides robust protection for cables in industrial environments, bundling and shielding them from mechanical impact, oils, fuels, and common chemicals. The slit along its length enables quick retrofitting, while the corrugated profile maintains flexibility even in tight spaces.

Full specifications

• Conduit type: Corrugated, slit
• Material: Polyamide 6 (PA6)
• Flame retardancy: UL94 V0
• Colour: Black
• Length: 25 m
• Nominal diameter (NW): 25
• Inner diameter: 23.0 mm
• Outer diameter: 28.5 mm
• Operating temperature: -40 °C to +120 °C
• Short-term temperature: +150 °C
• Halogen-free: Yes
• UV resistance: Good
• Chemical resistance: Good against oils, fuels, and common chemicals
• Flexibility: High
• Self-extinguishing: Yes
• Standards/approvals: EN 45545-2 HL3 (R22, R23), UL94 V0
• Impact resistance: High
• Application: Cable protection, routing, and bundling in demanding environments

Final note

With its combination of flame retardancy, halogen-free composition, and high flexibility, the HWPAV025-PA6V0-BK is a reliable choice for cable management in challenging conditions.
