HellermannTyton IWS aaltoputkikiinnike CTCC-IWS29-MB43-PA66/6HIRHS-GY 20

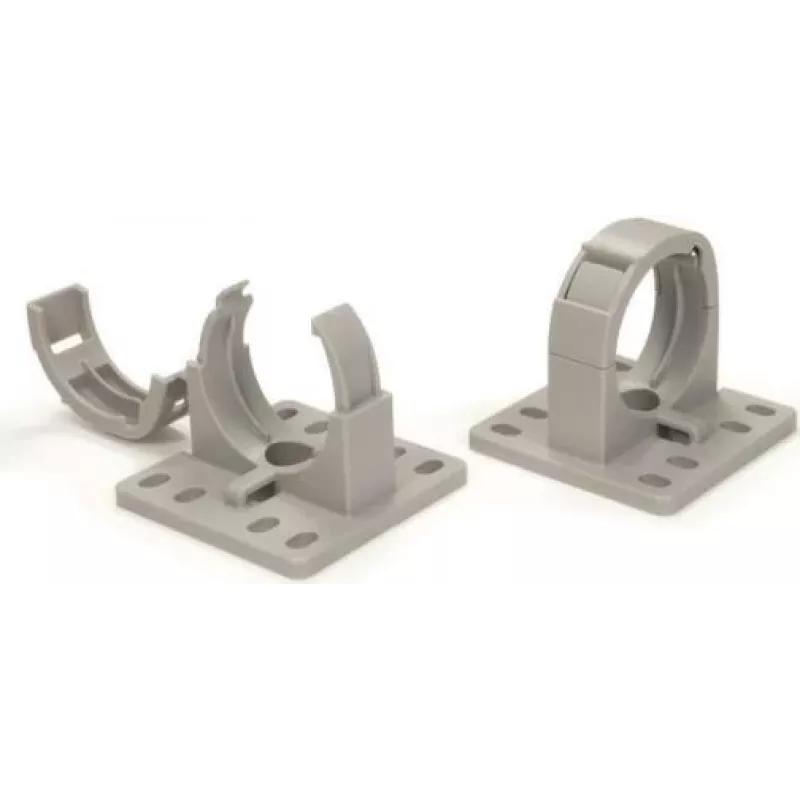

The HellermannTyton IWS Corrugated Conduit Holder CTCC-IWS29-MB43-PA66/6HIRHS-GY 20 is a high-quality screw-mount conduit holder designed for secure fastening of corrugated conduits with a nominal diameter of 29 mm. Manufactured from heat-stabilised, high-impact resistant polyamide 6.6, this holder offers excellent durability and performance in demanding industrial, automotive, and railway applications.

Advantages

This conduit holder provides reliable support and strain relief for corrugated conduits, ensuring long-term protection of cables and wires. Its robust construction and high impact resistance make it suitable for harsh environments. The screw-mount design allows for easy and secure installation on flat surfaces.

Suitable for

• Industrial machinery and equipment
• Automotive wiring systems
• Railway rolling stock and infrastructure
• Control cabinets and switchgear
• General cable management applications requiring secure conduit fastening

Key specifications

• Product Type: Corrugated Conduit Holder
• Series: IWS (Internal Wire Support)
• Conduit Nominal Diameter: 29 mm (NW29)
• Conduit Outer Diameter (Max): 34.5 mm
• Mounting Type: Screw Mount
• Mounting Base Dimensions (L x W): 43 x 43 mm
• Mounting Hole Diameter: 6.5 mm
• Material: Polyamide 6.6 (PA66)
• Material Properties: Heat Stabilised, High Impact Resistant
• Colour: Grey
• Operating Temperature Range: -40 °C to +105 °C
• Short-Term Temperature: +140 °C
• Flammability Rating: UL94 HB
• Halogen-Free: Yes
• Silicone-Free: Yes
• UV Resistance: Limited (Indoor use recommended)
• Chemical Resistance: Good against oils, greases, fuels, alkalis
• Impact Resistance: High
• RoHS Compliance: Yes
• Application: Secure fastening of corrugated conduits in industrial, automotive, and railway applications

Recommendations

For optimal performance, ensure the conduit outer diameter does not exceed 34.5 mm. This holder is designed for indoor use; for outdoor applications, consider additional UV protection. Always follow the manufacturer's installation guidelines.
