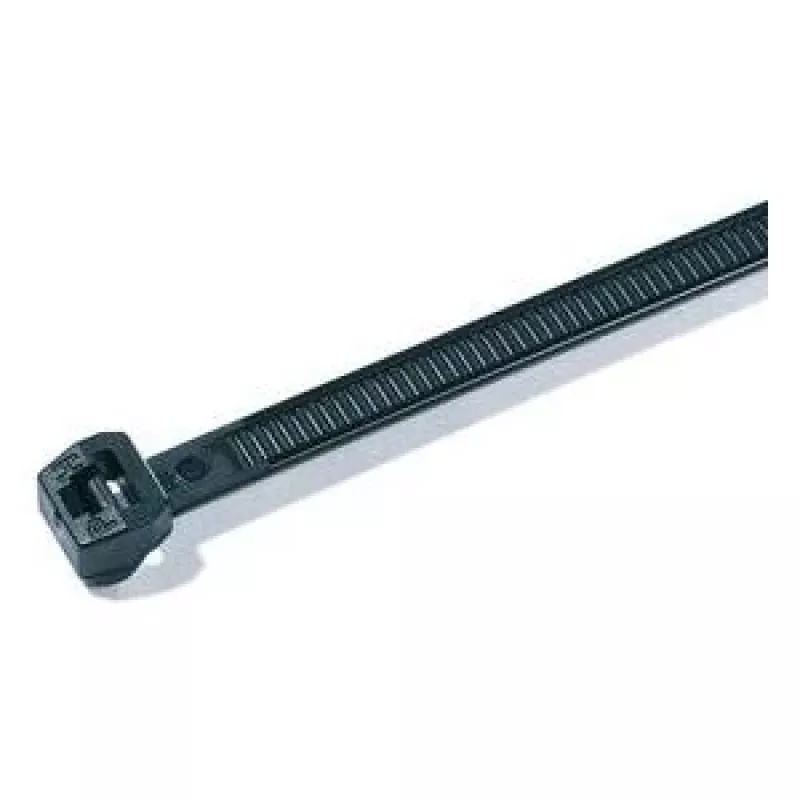

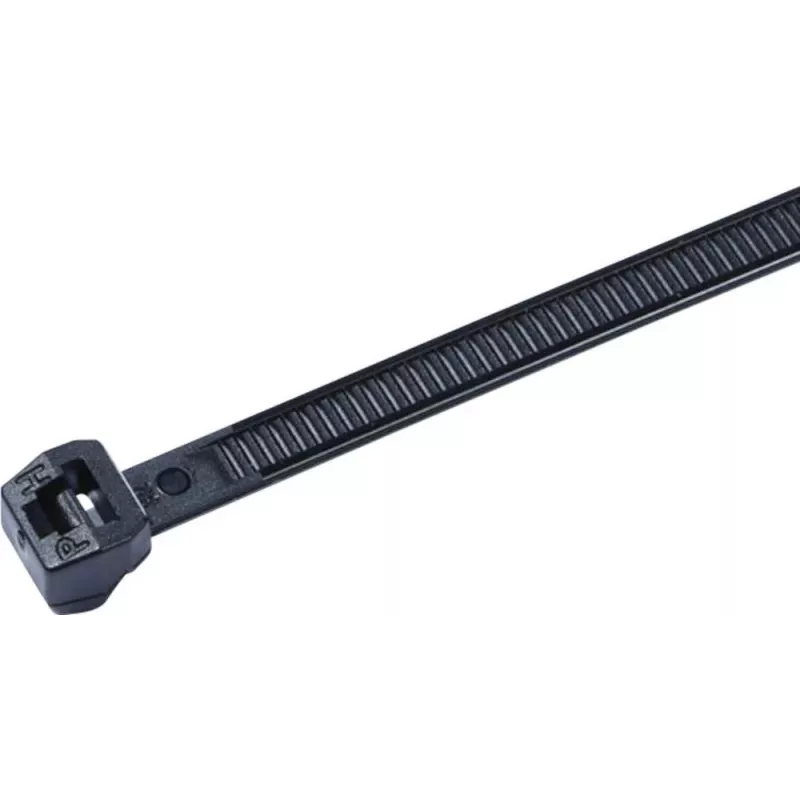

HellermannTyton OS-sarja ulkohampainen kaapelinippuside 200 x 4,6 mm musta 100 kpl 118-05060

Cable tie with outside serration, 200 mm length and 4.6 mm width, providing a secure hold for bundles up to 50 mm diameter. The black polyamide 6.6 construction withstands tensile loads up to 225 N and offers UV resistance for outdoor use.

Advantages

Outside serration ensures a strong, vibration-resistant grip on the bundle. The integrated plastic pawl locks reliably without metal parts, preventing corrosion. Halogen-free material reduces toxic emissions in case of fire. Operating temperature range from -40 °C to +85 °C suits harsh environments.

Suitable for

• Securing cables and wires in automotive, electrical, and industrial installations
• Outdoor applications requiring UV resistance and weather durability
• Bundling hoses, pipes, and components in machinery

Key specifications

• Length: 200 mm
• Width: 4.6 mm
• Material: Polyamide 6.6 (PA66)
• Colour: Black
• Tensile strength: 225 N
• Max. bundle diameter: 50 mm
• Min. bundle diameter: 1.5 mm
• Operating temperature: -40 °C to +85 °C
• Flammability rating: UL94 V2
• UV resistant: Yes
• Halogen-free: Yes
• Quantity per pack: 100 pieces

Recommendations

For consistent tension and long-term reliability, use a cable tie tensioning tool calibrated for 4.6 mm ties. Avoid exceeding the maximum bundle diameter to prevent premature failure.
