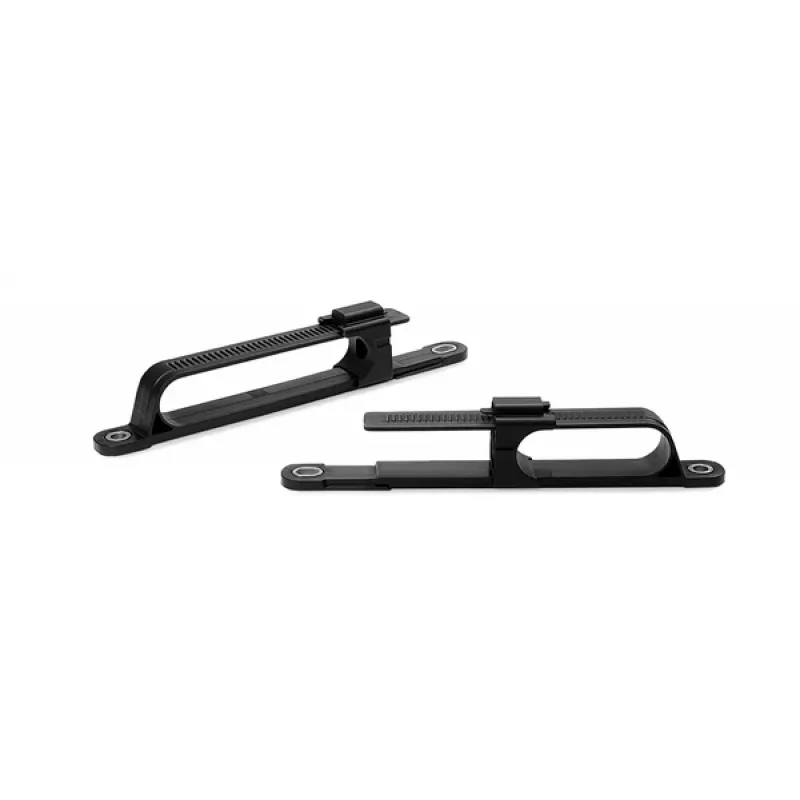

HellermannTyton SRC150M8-PA6GF30-BK ruuvattava kaapeliklipsi, musta, max. nippu 29 mm, M8-kierre 156-02742

Loose cables and wires can create safety hazards and make maintenance difficult. The HellermannTyton SRC150M8-PA6GF30-BK mounting clip provides a secure, screw-fastened solution for bundling and routing cables with a maximum diameter of 29 mm. Its robust construction from glass-fibre reinforced polyamide 6 (PA6GF30) ensures reliable performance in demanding environments.

Who is it for

This clip is ideal for electricians, panel builders, and maintenance technicians who need a durable, screw-mountable cable management component for industrial machinery, control cabinets, or building installations.

Main features

• Screw-mount design with M8 thread for secure fastening
• Accommodates cable bundles up to 29 mm in diameter
• Made from PA6GF30 (polyamide 6 with 30% glass fibre) for high strength and stiffness
• Black colour blends with standard wiring
• Operating temperature range from -40 °C to +105 °C
• Good resistance to oils, greases, and alkalis
• Halogen-free and RoHS compliant

Specifications

• Product type: Mounting clip
• Material: Polyamide 6 (PA6) with 30% glass fibre (GF30)
• Colour: Black
• Maximum bundle diameter: 29 mm
• Screw thread size: M8
• Operating temperature: -40 °C to +105 °C
• Flammability rating: UL94 V2
• Manufacturer series: SRC
• Part number: 156-02742

Tips

For best results, pre-drill a hole suitable for M8 screws and ensure the mounting surface is clean and flat. Use multiple clips spaced evenly along the cable run to prevent sagging and reduce stress on connections.
