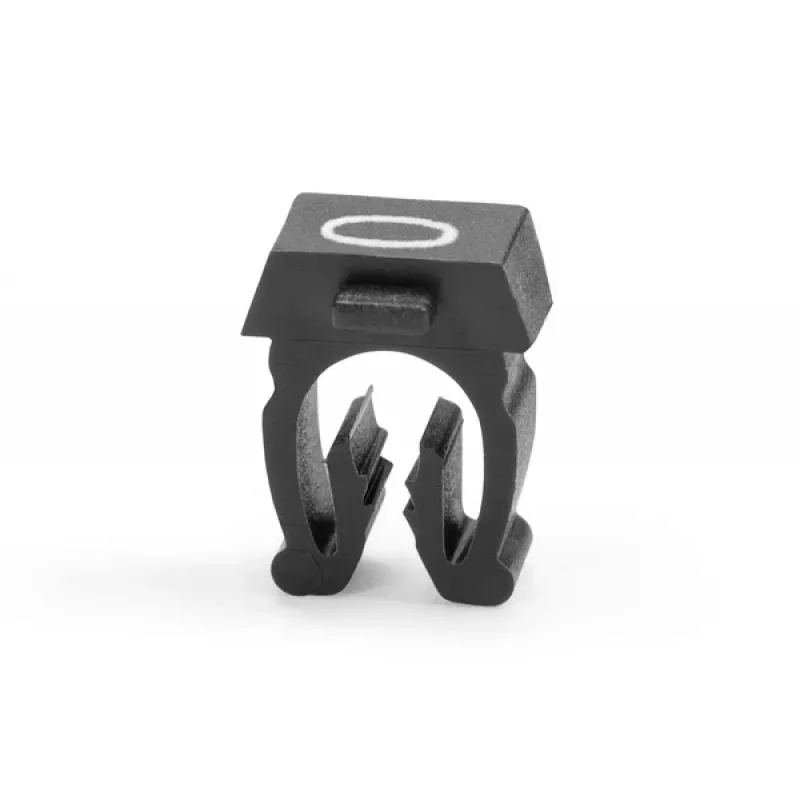

HELLERMANNTYTON WIC0-3-PA66-YE keltainen kaapelimerkitsin, PA66, 0,8-2,2 mm, 1000 kpl 561-00634

Identifying small wires and cables in control panels or harnesses is often messy: adhesive labels peel, sleeves slip, and ink fades. The HELLERMANNTYTON WIC0-3-PA66-YE marker solves this with a clip-on design that snaps securely onto conductors from 0.8 to 2.2 mm diameter, giving a permanent, legible identification point without tools or adhesives.

Who is it for

Panel builders, electrical installers, and maintenance technicians who need fast, reliable wire marking in industrial environments. The yellow colour provides high contrast on dark cables and is ideal for colour-coding circuits or phases.

Main features

• Clip-on / snap-on mounting – no adhesive, no heat shrink, no special tools
• Fits cable diameters 0.8–2.2 mm (conductor cross-section 0.5–1.5 mm²)
• Made from halogen-free polyamide 6.6 (PA66) – tough and dimensionally stable
• Yellow colour for high visibility and colour coding
• Blank surface for manual marking or printer application
• Supplied in a pack of 1000 pieces

Specifications

• Material: Polyamide 6.6 (PA66)
• Colour: Yellow
• Cable diameter range: 0.8–2.2 mm
• Conductor cross-section range: 0.5–1.5 mm²
• Operating temperature: -40 °C to +105 °C
• Flammability rating: UL94 V2
• Halogen-free: Yes
• Chemical resistance: Good against common oils, greases, alkalis
• Mounting type: Clip-on / snap-on
• Quantity per pack: 1000 pieces

Tips

For best results, use a permanent marker or dedicated cable marker printer. The clip design allows rotation after installation, so you can align the marking for easy reading even in tight spaces.
