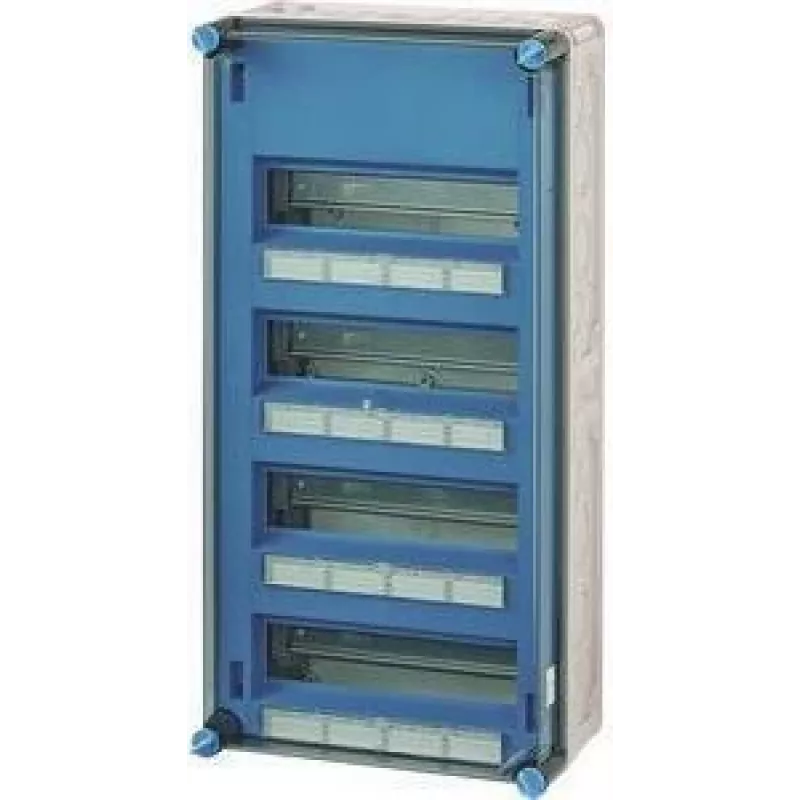

Hensel Mi automaattikotelo 48 Mi 1441 TLEen 1 20001546

The Hensel Mi Automatic Enclosure 48 Mi 1441 TLEen 1 stands out with its transparent door and 48 module units, offering a clear view of installed components while maintaining a robust, surface-mounted design. This distribution enclosure is engineered for demanding electrical installations, providing ample space and reliable protection.

Highlights

• 48 module units across 4 rows (12 modules per row)
• Transparent door for easy visual inspection
• Polycarbonate construction with high impact resistance (IK08)
• IP65 protection against dust and water jets
• Wide operating temperature range from -25 °C to +40 °C

In daily use

The enclosure's halogen-free and UV-resistant polycarbonate material ensures durability in various environments, while the grey RAL 7035 finish blends seamlessly into industrial and commercial settings. Its double-insulated design (Protection Class II) enhances safety, and the glow wire test rating of 960 °C adds fire resistance. With compliance to DIN EN 61439-2 and VDE 0660-600-2, it meets rigorous standards for low-voltage switchgear.

Full specifications

• Rated insulation voltage: 1000 V AC / 1500 V DC
• Rated operational voltage: 690 V AC / 1000 V DC
• Rated current: up to 250 A
• Material: Polycarbonate (PC)
• Colour: Grey (RAL 7035)
• Mounting type: Surface-mounted
• Protection class: II (double insulated)
• IP rating: IP65
• Impact resistance: IK08
• Glow wire test: 960 °C
• Ambient temperature range: -25 °C to +40 °C
• Halogen-free: Yes
• UV resistance: Yes
• Standards: DIN EN 61439-2, VDE 0660-600-2

Final note

Choose the Hensel Mi 1441 TLEen 1 for a reliable, transparent, and high-capacity distribution solution that meets stringent safety and performance requirements.
