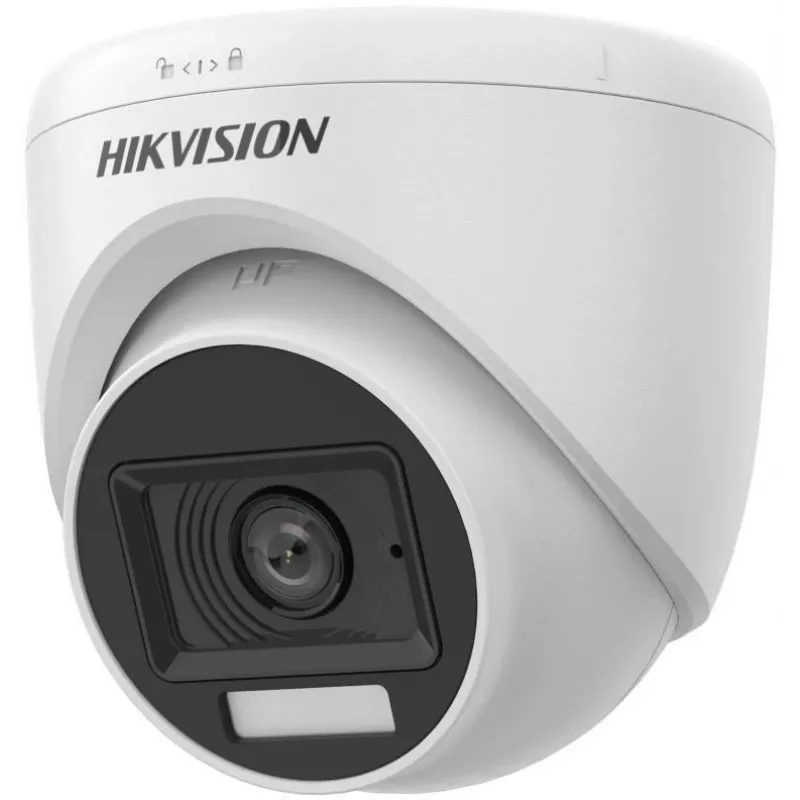

Hikvision DS-2CE76D0T-LPFS 2MP Turbo-HD turret-kamera (2,8 mm)

The Hikvision DS-2CE76D0T-LPFS is a high-performance 2MP Turbo-HD turret camera designed for reliable surveillance in both indoor and outdoor environments. Featuring a 2.8mm fixed lens with a 101° horizontal field of view, this camera delivers crisp 1080p resolution at up to 30fps. With 4-in-1 video output (TVI/AHD/CVI/CVBS), it offers flexible integration with existing systems. The built-in microphone enables audio capture over coaxial cable, while Smart IR technology provides up to 20m of night vision. Its IP67-rated housing ensures protection against dust and water, making it suitable for harsh conditions.

Advantages

This turret camera combines high-definition imaging with versatile connectivity and robust durability. The 2MP CMOS sensor ensures clear, detailed footage, while the 2.8mm lens provides a wide viewing angle ideal for monitoring open areas. The 4-in-1 output allows seamless switching between analog and HD standards, simplifying installation. Smart IR adjusts infrared intensity to prevent overexposure, delivering balanced night images. With low power consumption (max 2.2W) and wide operating temperature range (-40°C to 60°C), it performs reliably in extreme conditions.

Suitable for

• Retail stores and shops
• Office buildings and reception areas
• Warehouses and logistics centers
• Residential properties and apartments
• Parking lots and outdoor perimeters

Key specifications

• Image Sensor: 2 MP CMOS
• Max. Resolution: 1920 x 1080
• Frame Rate: 1080p @ 25fps/30fps
• Lens: 2.8mm fixed focal
• Field of View: 101° (horizontal)
• IR Range: Up to 20m (Smart IR)
• Video Output: 4-in-1 (TVI/AHD/CVI/CVBS)
• Audio: Built-in microphone
• Day & Night: IR cut filter
• Noise Reduction: 2D DNR
• WDR: Digital WDR (DWDR)
• Ingress Protection: IP67
• Power Supply: 12 VDC ± 25%
• Power Consumption: Max. 2.2 W
• Operating Temperature: -40°C to 60°C
• Material: Plastic
• Camera Type: Turret

Recommendations

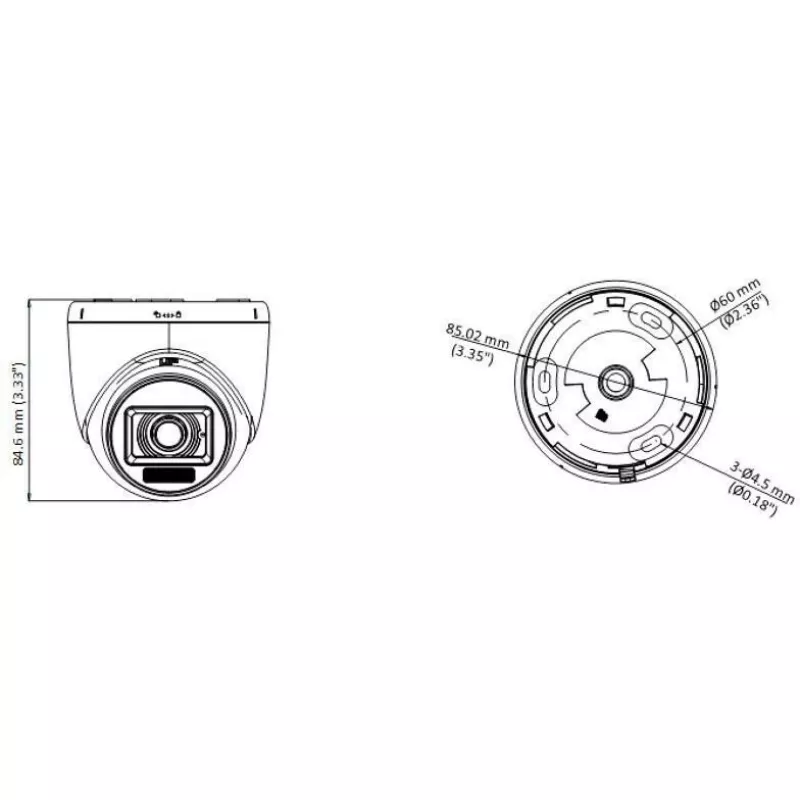

For optimal performance, pair this camera with a Hikvision DVR or NVR supporting 4-in-1 technology. Use a regulated 12VDC power supply. Ensure proper cable connections for audio transmission. The camera is wall-mountable; use the included mounting template for accurate installation.
