Hikvision DS-2DE5225W-AE T5 PL 2MP 25x IR verkkopohjainen PTZ-dome-kamera

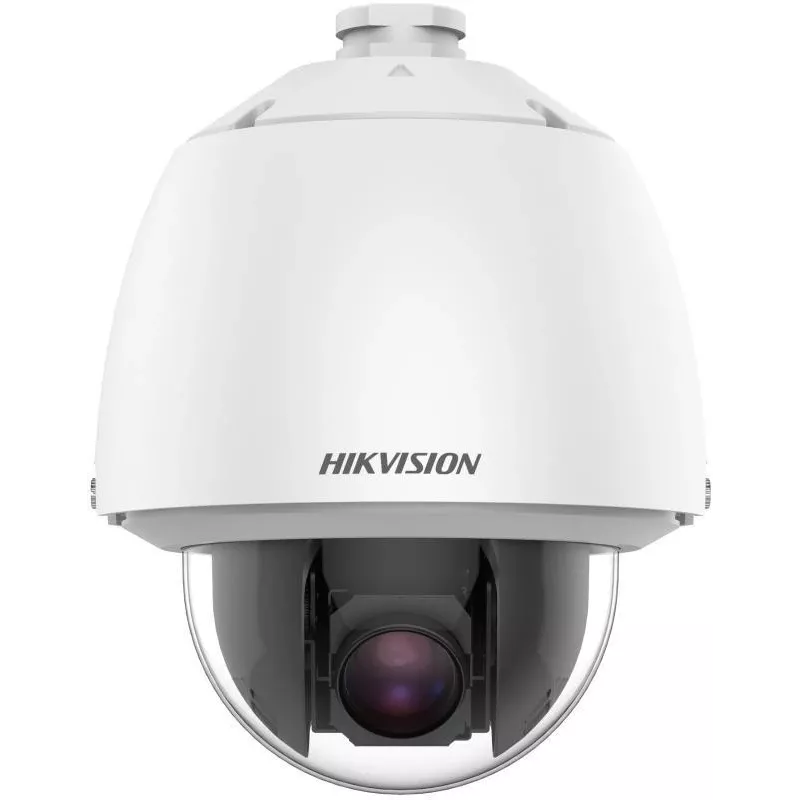

The Hikvision DS-2DE5225W-AE T5 PL is a high-performance 2MP IR network PTZ dome camera designed for outdoor surveillance. Featuring a 1/2.8" Progressive Scan CMOS sensor, 25x optical zoom, and up to 150m IR distance, it delivers clear images even in complete darkness. With 120 dB True WDR, H.265+ compression, and IP66/IK10 protection, this camera is ideal for demanding security applications.

Advantages

Exceptional low-light performance with 0.005 Lux color and 0 Lux with IR. Smart analytics including line crossing, intrusion detection, and region entrance/exit. Endless 360° pan and -15° to 90° tilt with auto flip for comprehensive coverage. Supports PoE+ for simplified installation.

Suitable for

• Perimeter security for commercial and industrial sites
• City surveillance and traffic monitoring
• Large area monitoring such as parking lots and campuses

Key specifications

• Image Sensor: 1/2.8" Progressive Scan CMOS
• Max Resolution: 1920 × 1080 (2MP)
• Optical Zoom: 25x
• Digital Zoom: 16x
• Focal Length: 4.8 mm to 120 mm
• IR Distance: Up to 150 m
• WDR: 120 dB True WDR
• Video Compression: H.265+/H.265/H.264+/H.264
• Network Interface: 1 RJ45 10M/100M Ethernet
• Power Supply: 24 VAC, PoE+ (802.3at)
• Storage: MicroSD/SDHC/SDXC card slot, up to 256 GB
• Ingress Protection: IP66
• Vandal Resistance: IK10
• Pan Range: 360° endless
• Tilt Range: -15° to 90° (auto flip)
• Minimum Illumination: Color: 0.005 Lux, B/W: 0.001 Lux (0 Lux with IR)
• Smart Features: Line crossing, intrusion, region entrance/exit detection, etc.
• Audio I/O: 1-ch audio in, 1-ch audio out
• Alarm I/O: 2-ch alarm in, 1-ch alarm out

Recommendations

For optimal performance, use a PoE+ switch or 24 VAC power supply. Ensure the mounting surface can support the camera's weight. Configure smart analytics via the Hikvision web interface or NVR.
