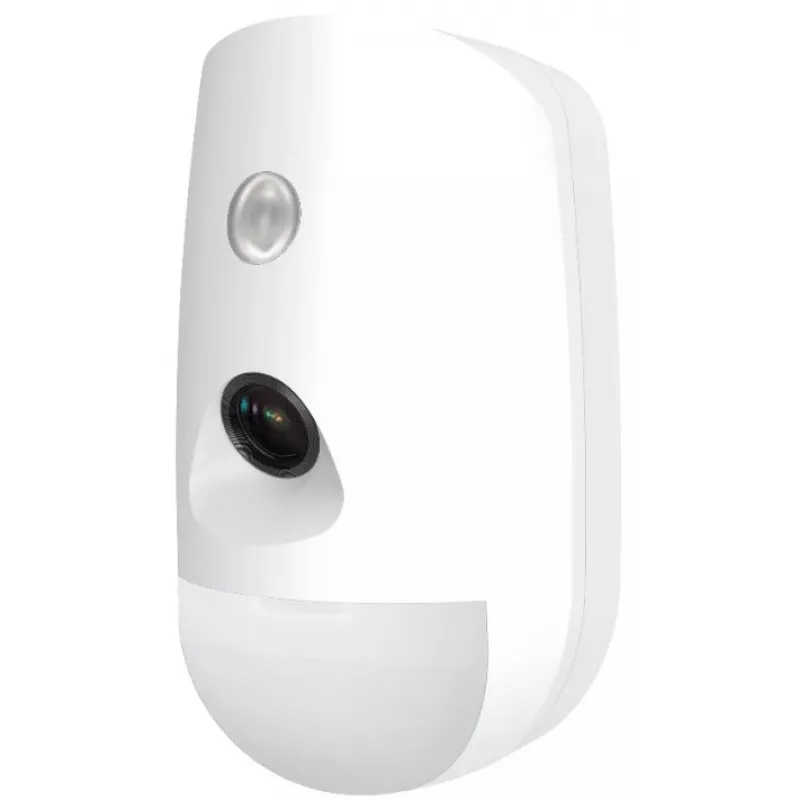

Hikvision DS-PDPC12P-EG2-WE(B) Tri-X langaton PIR-liiketunnistin kameralla

The Hikvision DS-PDPC12P-EG2-WE(B) is a professional-grade wireless PIR motion detector with an integrated VGA camera, designed for reliable intrusion detection in residential and commercial security systems. Combining passive infrared technology with image capture capabilities, this detector provides visual verification of alarm events, reducing false alarms and enhancing situational awareness.

Advantages

Integrated PIR and camera for visual alarm verification; pet immunity up to 30 kg; long-range Tri-X wireless communication up to 800 meters; long battery life up to 6 years; tamper protection front and rear; Grade 2 security certified.

Suitable for

• Residential security systems
• Small to medium commercial premises
• Areas requiring visual verification of alarms
• Integration with Hikvision alarm systems

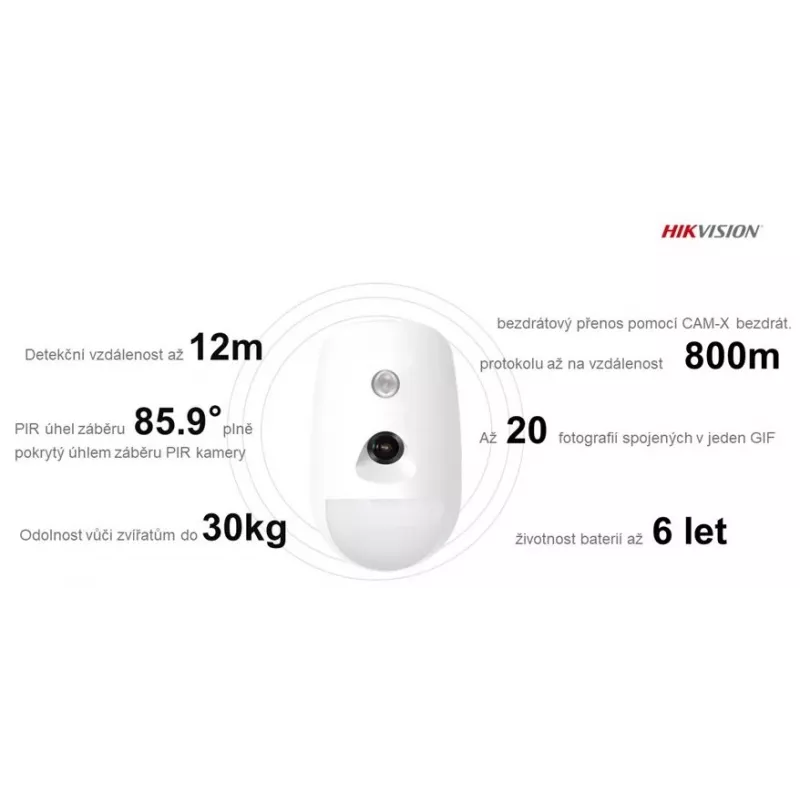

Key specifications

• Detection Method: PIR + Camera
• PIR Detection Range: 12 m
• PIR Detection Angle: 85.9°
• Pet Immunity: Up to 30 kg
• Camera Resolution: 640 x 480 (VGA)
• Image Capture: Up to 20 images
• Wireless Technology: Tri-X Wireless
• Wireless Frequency: 868 MHz
• Wireless Range: Up to 800 m (open area)
• Battery: 3 x CR123A (included)
• Battery Life: Up to 6 years
• Installation Height: 1.8 to 2.4 m
• Tamper Protection: Front and Rear
• Operating Temperature: -10°C to 55°C
• Security Grade: Grade 2 (EN 50131-1)
• Mounting: Wall

Recommendations

For optimal performance, install at the recommended height of 1.8 to 2.4 meters and avoid areas with direct sunlight or heat sources. Pair with a compatible Hikvision alarm control panel for full system integration.
