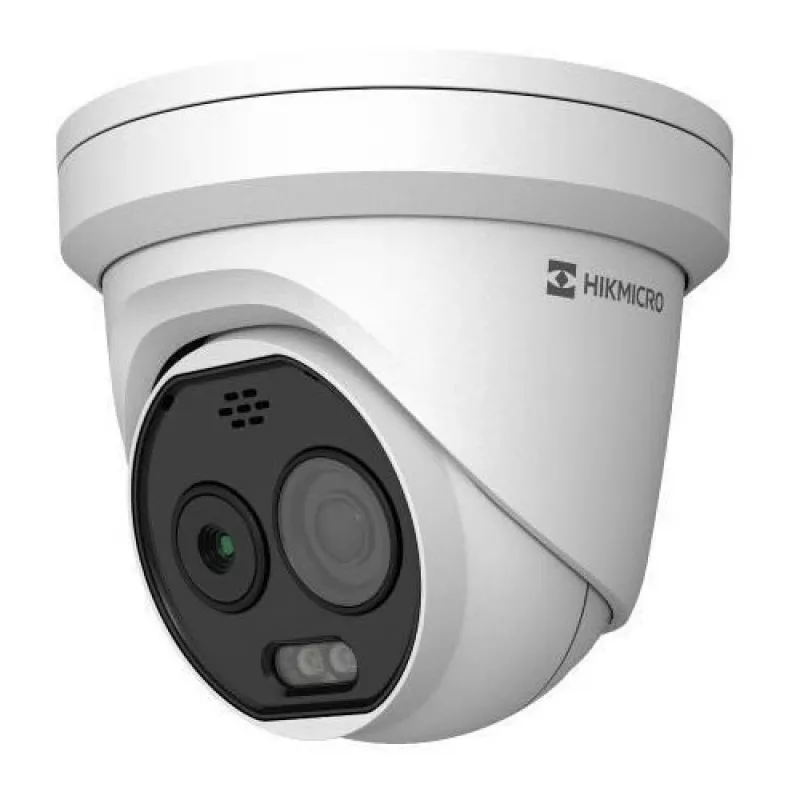

Hikvision HM-TD1218-3/G0/T1A kaksispektri-lämpökamera

The Hikvision HM-TD1218-3/G0/T1A is a bi-spectrum thermal network camera that combines a thermal sensor with a 4 MP optical sensor for 24/7 surveillance. It features fire detection, bi-spectrum image fusion, and Picture-in-Picture modes, making it ideal for critical infrastructure and perimeter protection.

Advantages

Dual-sensor technology provides both thermal and visual imaging, enabling early fire detection and reliable monitoring in complete darkness. The IP66-rated housing ensures outdoor durability, while PoE support simplifies installation.

Suitable for

• Industrial facilities and warehouses
• Perimeter security for commercial properties
• Fire prevention in high-risk areas
• Outdoor surveillance in harsh environments

Key specifications

• Thermal sensor: 160×120 resolution (output 320×240)
• Optical sensor: 4 MP (2688×1520)
• Thermal lens: 3.1 mm, FOV 50°×37.2°
• Optical lens: 4 mm, FOV 70.4°×43.1°
• Temperature measurement: -20°C to 150°C, accuracy ±8°C
• IR illumination: up to 15 m
• Video compression: H.265/H.264/MJPEG
• Max frame rate: 25 fps (both sensors)
• Storage: microSD slot up to 256 GB
• Network: 1× RJ45 10/100 Mbps
• Power: 12 VDC or PoE (802.3af), max 8 W
• Ingress protection: IP66
• Operating temperature: -20°C to 50°C

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the camera is mounted in a location with a clear field of view for both thermal and optical sensors.
