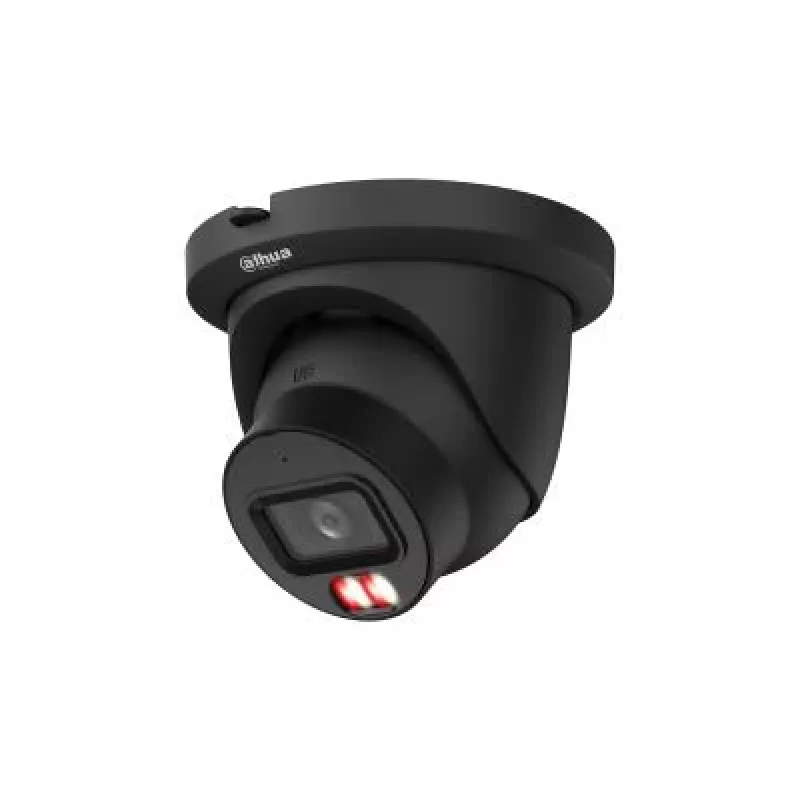

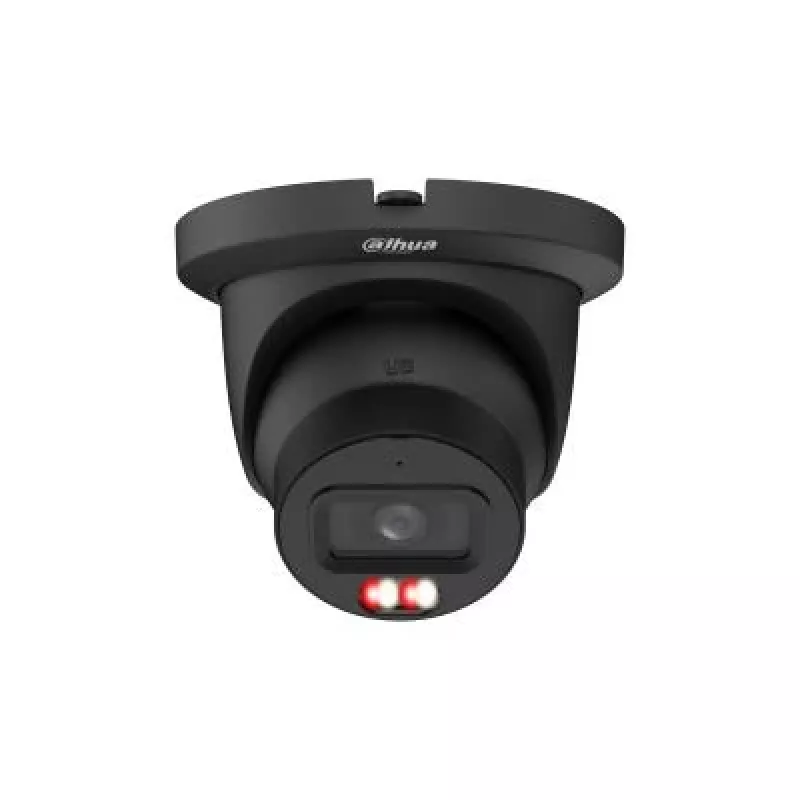

IP-dome-kamera DAHUA HDW5559TM-ASE-IL-0360B-B 5MP Eyeball IR-valaistuksella

5MP Smart Dual Light Fixed-focal Eyeball WizMind Network Camera
>5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
>Outputs max. 5 MP (2960 × 1668) @25/30 fps.
>Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m.
>ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
>Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
>Powered by the Xinghan Large-Scale AI Models-Vision, the camera outstandingly delivers on its object detection, recognition, and scene adaptation functions.
>With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc.
>Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card; built-in Mic
>12 VDC/PoE power supply; ePoE
>IP67 protection.
> Focal Length: 3.6 mm
> Field of View: 90.3°

Vendor Homepage: www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-5-Series/Smart-Dual-Light/5MP/IPC-HDW5559TM-ASE-IL | Form factor: Eyeball | Housing material: Metal | International Protection (IP) code: IP67 | Product colour: Black | Alarm input/output: Yes | Connectivity technology: Wired | Placement supported: Outdoor | Type: IP security camera | Wide Dynamic Range (WDR): Yes | Camera shutter speed: 1/3 s–1/100,000 | Field of view (FOV) angle: 90.3 | Number of sensors: 1 | Optical sensor size: 1/2.7 | Sensor type: CMOS | Fixed focal length: 3.6 | B/W night vision distance: 50 | LED type: IR | Night vision: Yes | 3D NR (Noise Reduction): Yes | Back Light Compensation (BLC): Yes | Highlight Compensation (HLC): Yes | Maximum resolution: 2960 × 1668 | Total megapixels: 5 | Built-in microphone: Yes | Compatible memory cards: MicroSD (TransFlash) | Maximum memory card size: 1000 | Alarm input channels: 1 | Alarm output channels: 1 | DC output voltage: 12 | Power source type: DC,PoE | Operating temperature (T-T): –40 °C to +60 °C | Storage temperature (T-T): –40 °C to +60 °C | Diameter: 122 | Height: 105.5 | Weight: 530 | Audio input: 1 | Audio output: 1 | Model: HDW5559TM-ASE-IL-0360B-B | Units per Pallet: 0 | Units per Shipping Box: 1 | Unit Calculated Volume: 0.002835 | Unit Calculated Weight: 0.77

How to use

Mount the DAHUA HDW5559TM-ASE-IL-0360B-B on a stable ceiling or wall within a suitable indoor or sheltered outdoor location. Orient the eyeball dome to achieve the required field of view and secure the housing following the manufacturer's mounting instructions. Connect the camera to the local IP network and integrate it with a compatible NVR or video management software to enable live viewing and recording. During commissioning, adjust focus and framing and verify IR activation and image quality under low-light conditions.

Recommendations

Place the camera where it is protected from direct weather exposure and extreme temperatures. Position the unit to avoid direct light sources in the frame that can reduce image clarity. Use a compatible IP recorder or management system to schedule continuous recording and archive footage according to your retention policy.
