Hilook IP-kamera IPC-B480HAD-LUF/SL panoraamallinen 8MP Smart Hybrid Light

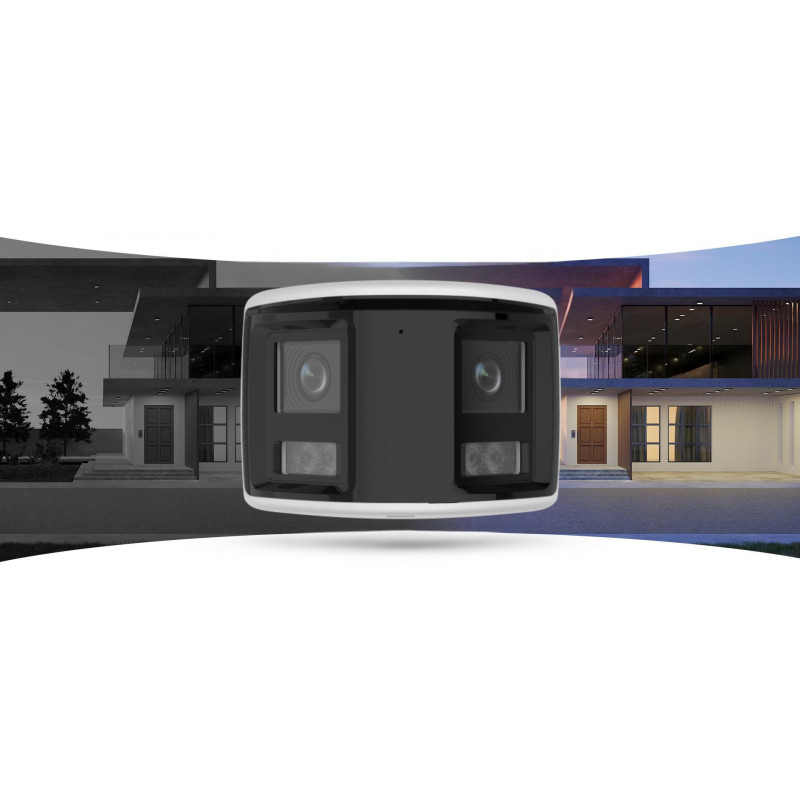

The Hilook IPC-B480HAD-LUF/SL is a panoramic IP security camera that uses two lenses to create a 180° image with 8 MP resolution. It features Smart Hybrid Light with IR and white light, two-way audio, and active deterrence with sound and light alarms. Designed for indoor and outdoor use, it offers reliable surveillance with a durable IP67-rated housing.

Key features

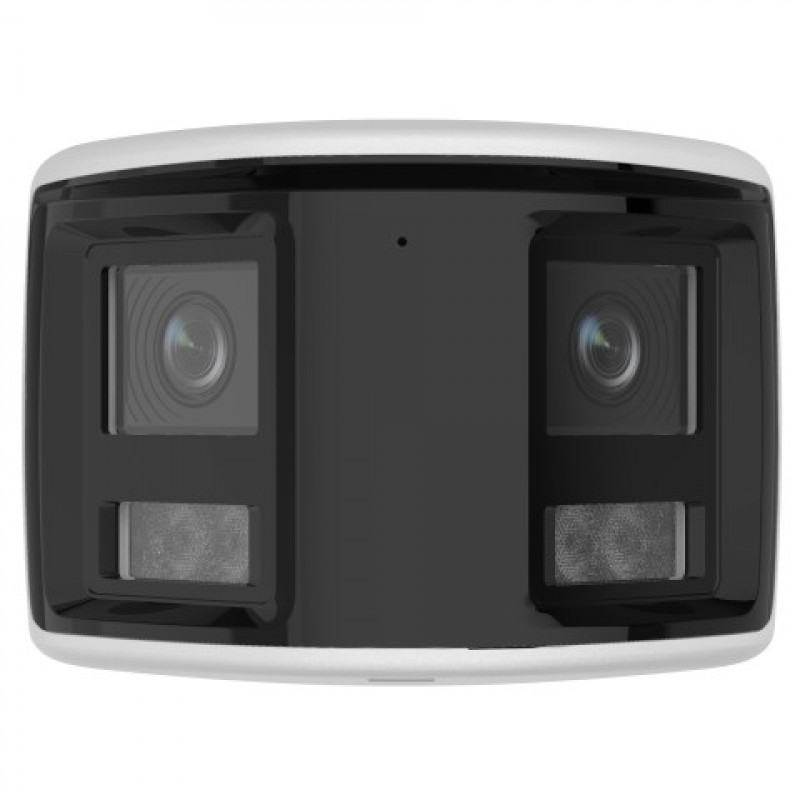

• Panoramic 180° image created by two lenses
• 8 MP resolution (max. 4256 × 1888 px)
• Smart Hybrid Light – IR and white light adapted to the event
• Human and vehicle silhouette recognition
• Two-way voice communication
• Sound and light alarm to deter intruders
• Efficient H.265+ compression reducing memory and network usage
• Local recording on microSD card up to 512 GB
• PoE power supply for easy installation with a single cable
• Housing designed for year-round outdoor monitoring

Specifications

• Brand: Hilook
• MPN: IPC-B480HAD-LUF/SL
• Product type: IP Security Camera
• Maximum resolution: 8 MP

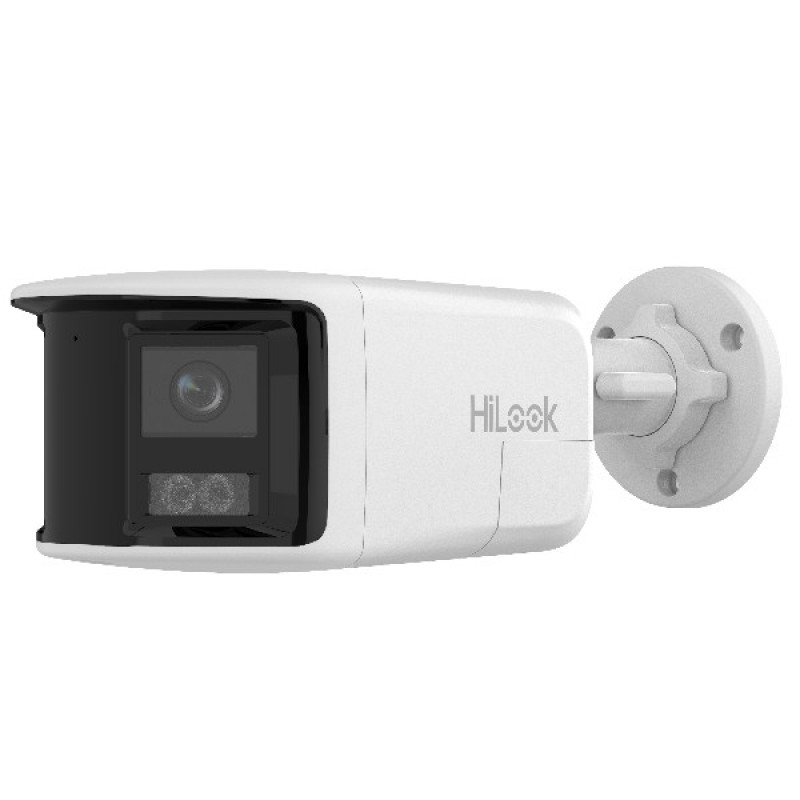

• Form factor: Bullet
• Placement supported: Indoor & Outdoor
• Connectivity technology: Wired
• Power source type: DC & PoE
• International Protection (IP) code: IP67
• Image sensor: 1/2.4" Progressive Scan CMOS
• Maximum frame rate: 20 fps at 4256 × 1888 px
• Panorama: 180°
• Minimum illumination: Color: 0.005 lx at F1.6, AGC on; 0 lx with IR on
• Day/Night mode: Auto IR-cut filter (ICR)
• Wide dynamic range: WDR 120 dB
• Signal-to-noise ratio: at least 52 dB
• White balance: Auto and manual
• Noise reduction: 3D DNR
• Image functions: BLC, HLC, distortion correction, mirror
• Privacy zones: Supported
• Lens construction: Two fixed lenses
• Focal length: 2 mm
• Aperture: F1.6
• Focus adjustment: Fixed
• Horizontal field of view: 180°
• Recommended observation distance: 8–12 m
• Recommended vertical camera angle: 68–75°
• Light type: IR and white light
• Light range: Up to 30 m
• Smart switching between IR and white light
• Color image recording when white light is on
• Smart Supplement Light: Supported
• Video compression: H.265+, H.265, H.264+, H.264
• Number of streams: 2
• Video bit rate: 32 kb/s to 16 Mb/s
• Bit rate control: CBR/VBR
• H.264 profiles: Baseline, Main, High
• Multi-stream transmission: Supported
• Motion Detection 2.0
• Object classification: Human and vehicle
• Alarm filtering by object type
• Classic motion detection
• Image tampering alarm
• Exception notifications (network or memory error)
• Active deterrence with strobe light
• Sound alarm via built-in speaker
• Built-in microphone: Yes
• Built-in speaker: Yes
• Two-way communication: Yes
• Maximum sound pressure level: approx. 97 dB at 10 cm
• Speaker power: 2 W
• Audio compression: G.711, G.722.1, G.726, MP2L2, AAC-LC
• Ambient noise reduction: Supported
• Memory card slot: microSD/microSDHC/microSDXC
• Maximum card capacity: 512 GB
• Memory card included: No
• Local recording: Supported
• Recording to compatible NVR: Supported
• Network interface: 1 × RJ-45
• Ethernet standard: 10/100 Mb/s
• Wi-Fi: No
• Mobile app support: HiLookVision
• PC software: iVMS-4200
• Remote viewing, playback, and notifications: Supported
• ONVIF: Supported
• Web browser access: Supported
• Simultaneous live view: Up to 6 channels
• Number of users: Up to 32
