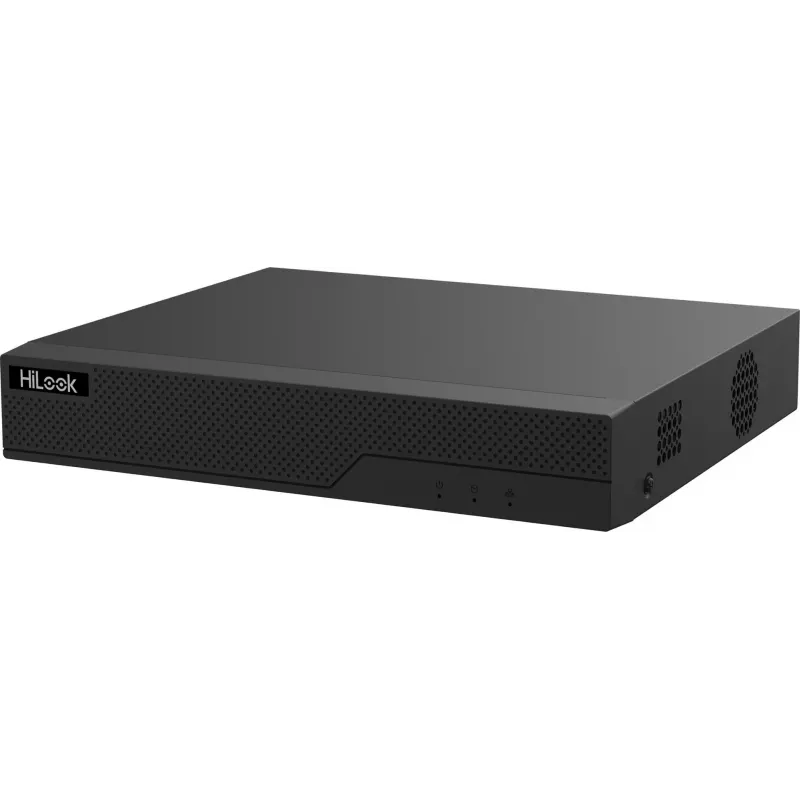

Hilook NVR-108MH-C/8P(E) 8-kanavainen 8MP PoE verkkotallennin

The Hilook NVR-108MH-C/8P(E) is a high-performance 8-channel network video recorder designed for small to medium-sized surveillance systems. With support for up to 8MP resolution recording and 8 integrated PoE ports, this NVR simplifies installation by powering cameras directly through the Ethernet cables. It features H.265+ compression for efficient storage and bandwidth usage, and offers a maximum PoE power budget of 120W.

Advantages

This NVR provides reliable 24/7 recording with smart encoding to save hard drive space. The built-in PoE switch eliminates the need for separate power supplies for each camera, reducing cabling and installation costs. HDMI output supports up to 4K resolution for crisp live viewing and playback.

Suitable for

• Small offices and retail stores requiring up to 8 IP cameras
• Home surveillance systems with PoE cameras
• Warehouses and workshops needing robust recording

Key specifications

• Video Input: 8 channels
• Max Recording Resolution: 8 MP (3840×2160)
• PoE Ports: 8 (IEEE 802.3af/at), total 120W
• Video Compression: H.265+/H.265/H.264+/H.264
• HDMI Output: Up to 4K
• VGA Output: Up to 1080p
• Synchronous Playback: 8 channels
• Audio: 1-ch RCA input, 1-ch RCA output
• SATA HDD Bay: 1 (up to 8TB)
• Network: 1× RJ45 10/100/1000 Mbps
• USB: 2× USB 2.0
• Power Supply: 48 VDC
• Operating Temperature: -10°C to +55°C

Recommendations

For optimal performance, pair this NVR with Hilook or compatible ONVIF IP cameras. Use a surveillance-grade hard drive (e.g., WD Purple or Seagate SkyHawk) for reliable 24/7 recording. Ensure the total PoE power consumption of connected cameras does not exceed 120W.
