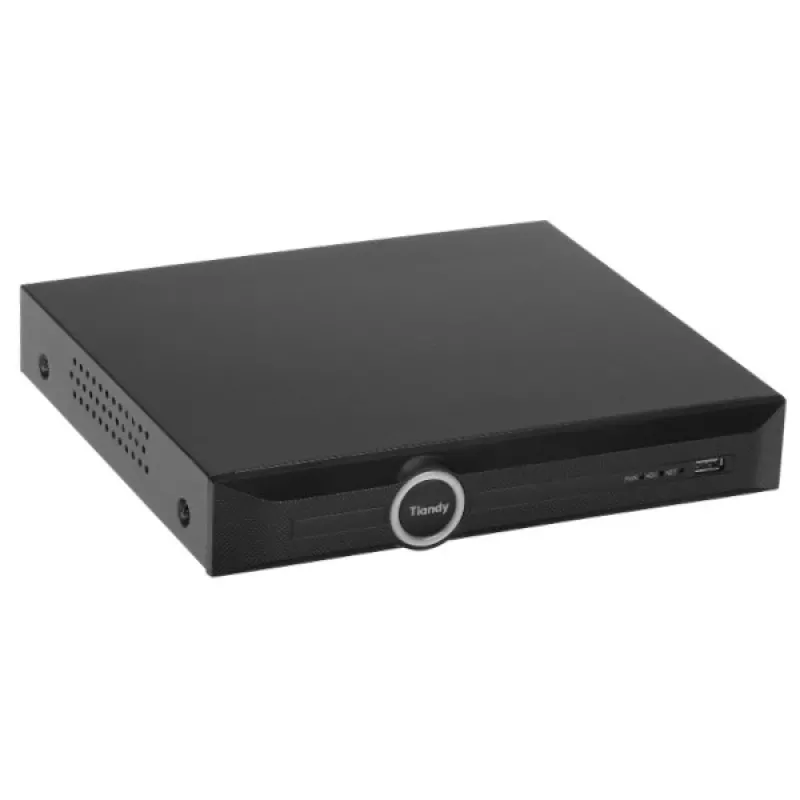

Tiandy TC-R3105 5-kanavainen IP NVR 4 PoE Lite -portilla, H.265+

The Tiandy TC-R3105 is a high-performance 5-channel IP network video recorder designed for small to medium surveillance systems. With 4 integrated PoE Lite ports (IEEE 802.3af/at) and a total PoE budget of 36W, it simplifies installation by powering cameras directly. Supporting H.265+ compression, it reduces bandwidth and storage requirements while maintaining excellent image quality up to 5MP resolution.

Advantages

Cost-effective solution with built-in PoE, eliminating the need for separate switches. Supports up to 10TB HDD for extended recording. Smart analytics including motion detection and privacy mask enhance security. Remote access via Tiandy View Pro app (P2P) allows real-time monitoring from anywhere.

Suitable for

• Retail stores
• Small offices
• Residential properties
• Warehouses

Key specifications

• Video Input: 5 IP channels
• PoE Ports: 4 (IEEE 802.3af/at, 36W budget)
• Max Recording Resolution: 5MP
• Video Compression: H.265+, H.265, H.264+, H.264
• HDD Support: 1 SATA up to 10TB
• Video Output: 1x HDMI, 1x VGA (simultaneous)
• Audio: 1x RCA In / 1x RCA Out
• Network: 1x RJ45 10/100Mbps
• USB: 2x USB 2.0
• Power Supply: DC 52V
• Operating Temperature: -10°C to 55°C

Recommendations

Pair with Tiandy IP cameras for seamless integration. Use a high-quality CAT5e/6 cable for optimal PoE performance. For extended storage, consider a surveillance-grade HDD.
