HISMART 5G / LTE / CBRS 2x2 MIMO antenni, 1,7-3,8 GHz, 2x 18 dBi

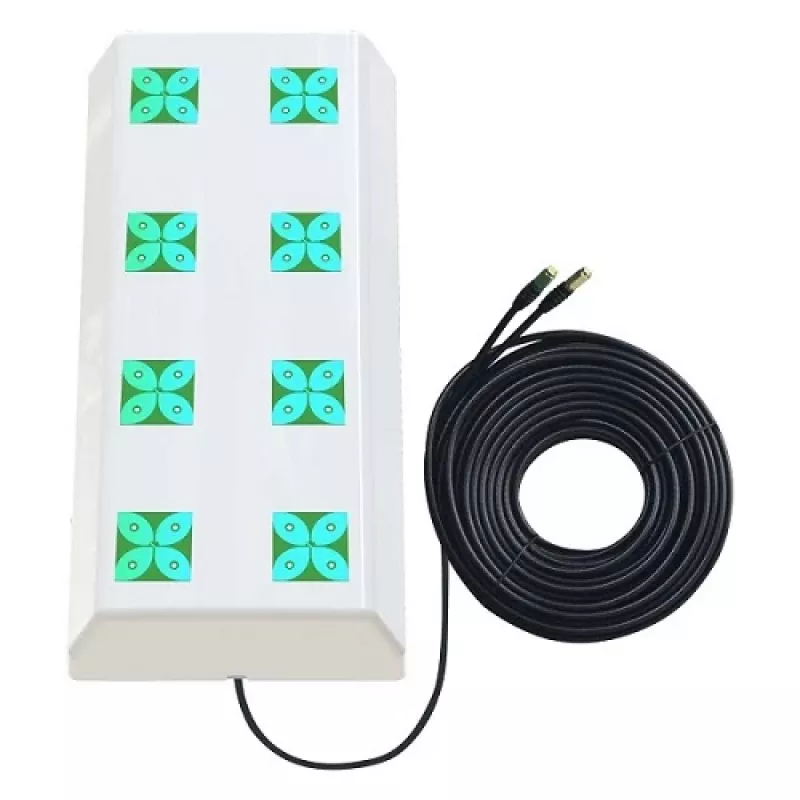

The HISMART TV992263 is a high-performance 5G / LTE / CBRS 2x2 MIMO antenna designed for reliable connectivity across a wide frequency range of 1.7-3.8 GHz. With a gain of 2x 18 dBi, this antenna ensures robust signal reception and transmission, making it ideal for demanding wireless applications.

Advantages

This antenna offers exceptional gain and MIMO technology, enhancing data throughput and signal stability. Its wideband coverage supports multiple cellular standards, including 5G, LTE, and CBRS, providing future-proof connectivity for various deployments.

Suitable for

• Outdoor and indoor cellular base stations
• Fixed wireless access (FWA) installations
• Industrial IoT and M2M communications
• Public safety and private LTE/5G networks

Key specifications

• Frequency Range: 1.7-3.8 GHz
• Gain: 2x 18 dBi
• MIMO: 2x2
• Polarization: Linear
• Connector: N-Type Female (typical)
• Impedance: 50 Ohms
• VSWR: <2.0
• Front-to-Back Ratio: >25 dB
• Wind Load: 120 km/h (operational)
• Operating Temperature: -40°C to +70°C
• Dimensions: 600 x 200 x 80 mm (approx.)
• Weight: 2.5 kg (approx.)

Recommendations

For optimal performance, pair this antenna with a compatible 5G/LTE router or modem. Ensure proper grounding and lightning protection for outdoor installations. Professional installation is recommended to achieve maximum gain and coverage.
