HISMART maadoituskaapeli liittimillä aurinkopaneeleille, kupari, 4 mm², 20 cm, 100 kpl

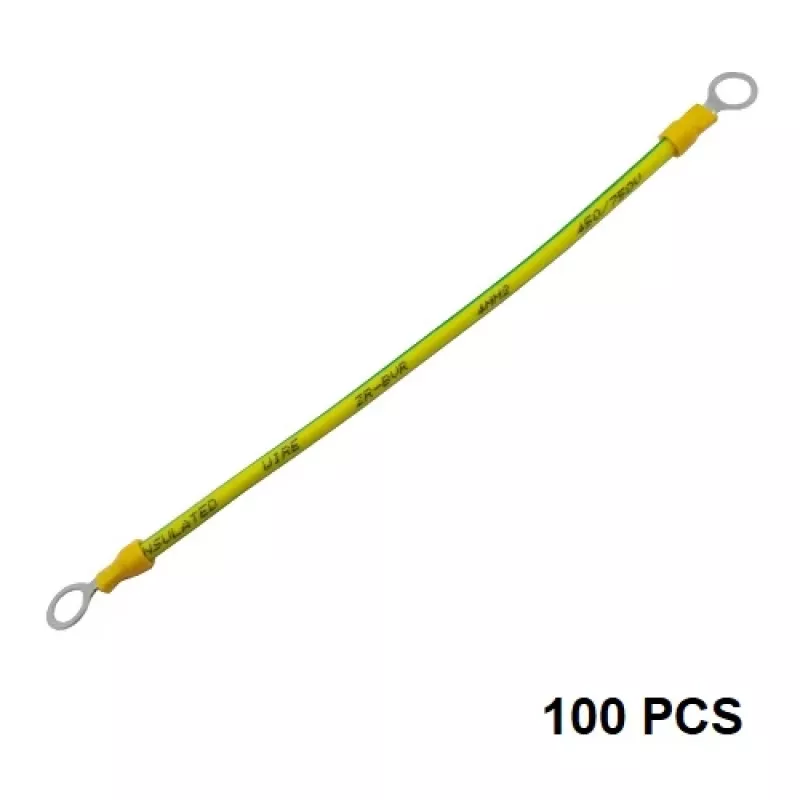

Ensure reliable earthing and lightning protection for your solar photovoltaic (PV) system with the HISMART grounding cables. These pre-terminated cables are designed for outdoor installation, offering excellent environmental resistance and compliance with RoHS standards.

Advantages

High-quality stranded copper conductors ensure optimal conductivity and flexibility. The PVC insulation is UV, ozone, weather, and abrasion resistant, guaranteeing long-lasting performance in harsh conditions. Each cable is pre-terminated with ring terminals on both ends for quick and secure connections.

Suitable for

• Solar PV system earthing and lightning protection
• Outdoor electrical installations requiring grounding
• Professional solar installers and DIY enthusiasts

Key specifications

• Product Type: Grounding Cable
• Application: Solar Photovoltaic (PV) Systems
• Cable Material: Copper
• Conductor Cross-Sectional Area: 4 mm²
• Cable Length: 20 cm
• Connectors Included: Yes
• Connector Type: Ring Terminal
• Quantity per Pack: 100 pieces
• Conductor Type: Stranded Copper
• Insulation Material: PVC
• Insulation Color: Green/Yellow
• Environmental Resistance: UV, Ozone, Weather, Abrasion
• Operating Temperature Range: -40°C to +90°C
• Termination: Pre-terminated on both ends
• Rated Voltage (Insulation): 1000V DC
• Compliance: RoHS Compliant
• Purpose: System Earthing and Lightning Protection
• Installation Environment: Outdoor

Recommendations

For optimal performance, ensure proper installation according to local electrical codes. These cables are ideal for connecting solar panel frames to the grounding system.
