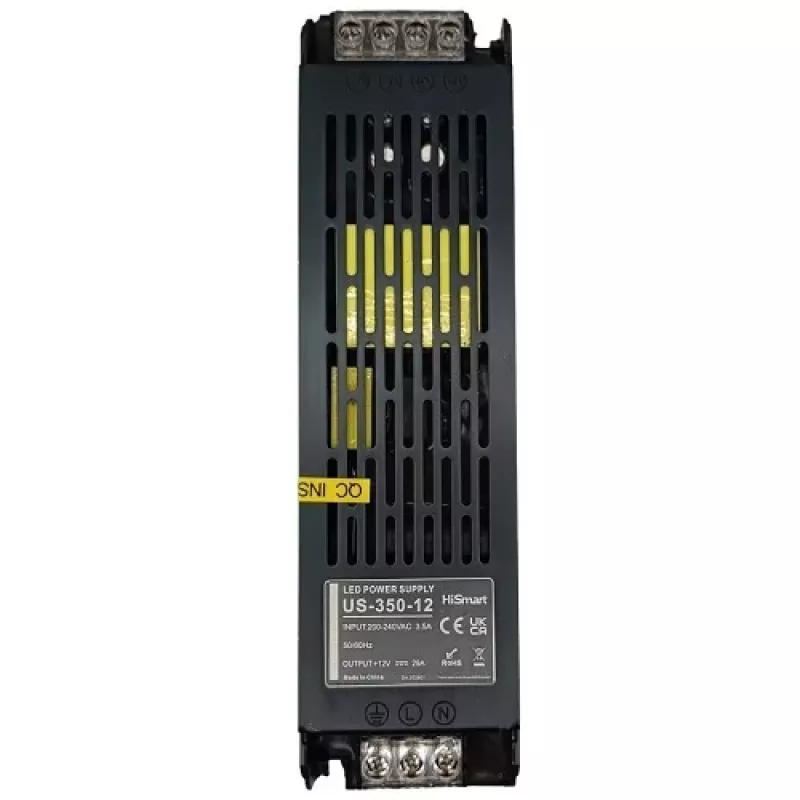

HISMART virtalähde 12V, 29A, 350W

The HISMART US-350-12 is a high-performance DC switching power supply delivering 12V DC output at 29A with a maximum power of 350W. Designed for industrial and commercial applications, this enclosed metal case unit ensures reliable operation with built-in protection features including overload, over-voltage, short-circuit, and over-temperature protection. With an efficiency greater than 85% and a built-in cooling fan, it maintains stable performance in demanding environments.

Advantages

This power supply offers a wide input voltage range (AC 100-240V) making it suitable for global use. The adjustable output voltage (10.8V - 13.2V) provides flexibility for various devices. Its compact design and screw terminal block connections simplify installation. CE and RoHS certifications guarantee compliance with safety and environmental standards.

Suitable for

• Industrial automation equipment
• LED lighting systems
• Security cameras and CCTV systems
• Communication devices
• Any application requiring a stable 12V DC power source up to 29A

Key specifications

• Power Type: DC Switching Power Supply
• Input Voltage: AC 100-240V, 50/60 Hz
• Output Voltage: DC 12V (adjustable 10.8-13.2V)
• Output Current: 29A
• Output Power: 350W
• Efficiency: >85%
• Ripple & Noise: <150mVp-p
• Protection: Overload, Over-voltage, Short-circuit, Over-temperature
• Cooling: Built-in fan
• Operating Temperature: -10°C to +50°C
• Input Connection: Screw Terminal Block (L, N, GND)
• Output Connection: Screw Terminal Block (V+, V-)
• Enclosure: Enclosed Metal Case
• Certifications: CE, RoHS
• MTBF: >50,000 hours

Recommendations

For optimal performance, ensure adequate ventilation around the power supply. Do not exceed the rated output current. This unit is not suitable for outdoor use without additional protection. Always follow local electrical codes during installation.
