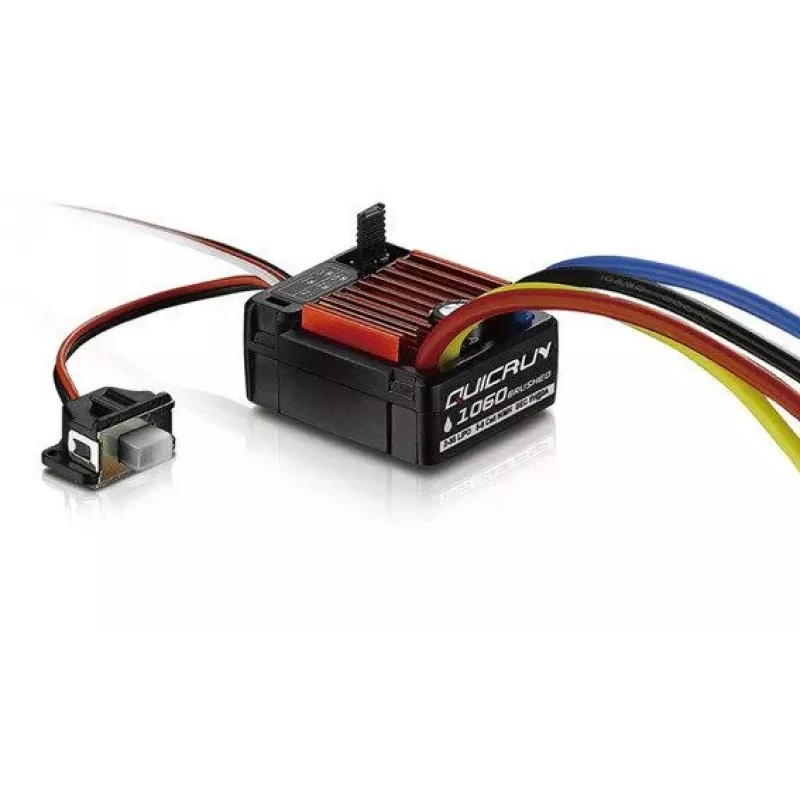

Hobbywing QuicRun WP 1060 harjallinen nopeudensäädin 60A

The Hobbywing QuicRun WP 1060 is a waterproof brushed electronic speed controller (ESC) designed for 1/10 scale RC vehicles. It delivers reliable performance with a continuous current of 60A and peak current of 360A, making it suitable for a wide range of brushed motor applications.

Advantages

Fully waterproof and dustproof design ensures operation in wet and dirty conditions. Switch-mode BEC provides stable 6V/3A output for servos and receivers. Multiple operating modes including forward/brake/reverse and crawler mode offer versatility for different driving styles.

Suitable for

• 1/10 scale RC cars, trucks, and buggies
• Rock crawlers and trail trucks
• Entry-level and sport brushed motor setups

Key specifications

• Continuous Current: 60A
• Peak Current: 360A
• Input Voltage: 2-3S LiPo or 5-9 cells NiMH
• BEC Output: 6V/3A (Switch Mode)
• Motor Limit (2S LiPo/6 cells NiMH): ≥12T (540/550 size)
• Motor Limit (3S LiPo/9 cells NiMH): ≥18T (540/550 size)
• Resistance: 0.001 Ohm
• Battery Connector: T-Plug (Deans Style)
• Motor Connectors: 4.0mm Bullet Connectors
• Waterproof/Dustproof: Yes
• Cooling: Passive Heat Sink

Recommendations

For optimal performance, use a 2S LiPo battery with a 12T or higher turn motor. Program the ESC using the SET button or optional LED Program Box. Ensure proper gearing to prevent overheating.
