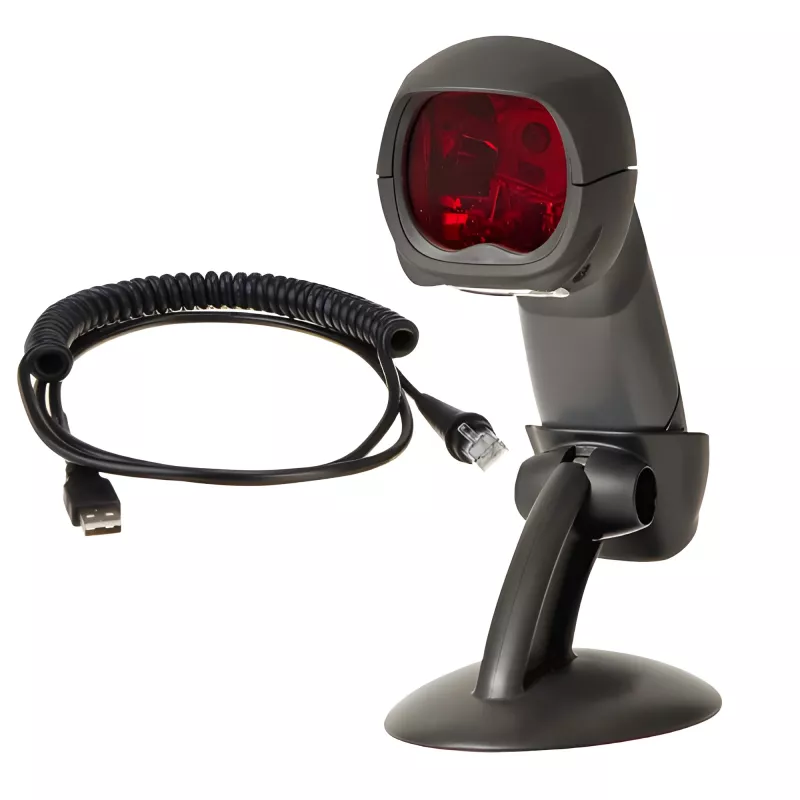

Honeywell MS3780 Fusion viivakoodilukija - käsikäyttöinen

The Honeywell MS3780 Fusion is a versatile handheld barcode scanner designed for high-performance retail and light industrial environments. Combining omnidirectional and single-line scanning capabilities, it offers exceptional flexibility for reading 1D barcodes on various surfaces, including paper and electronic displays. With its durable construction and ergonomic design, the MS3780 Fusion ensures reliable operation and user comfort throughout long shifts.

Advantages

Dual-mode scanning allows users to switch between omnidirectional presentation scanning and single-line handheld scanning, optimizing productivity for different tasks. The scanner's laser technology delivers fast and accurate reads, even on damaged or poorly printed barcodes. Its compact footprint and adjustable stand compatibility make it ideal for countertop use, while the IP30 rating protects against dust and debris.

Suitable for

• Retail point-of-sale (POS) environments
• Warehouse and logistics operations
• Light industrial manufacturing
• Healthcare and laboratory settings

Key specifications

• Scan Technology: Laser (650 nm visible laser diode)
• Scan Pattern: Omnidirectional (20 lines) / Single-line
• Decode Capability: 1D barcodes including GS1 DataBar, UPC/EAN/JAN, Code 39, Code 128
• Scan Speed: 1333 scan lines/sec (omnidirectional), 67 scan lines/sec (single-line)
• Minimum Bar Width: 5 mil (0.127 mm)
• Depth of Field (13 mil UPC-A): 0 mm - 210 mm
• Host Interfaces: USB, RS232, Keyboard Wedge, IBM 468x/469x
• Drop Specification: 1.5 m (5 ft) to concrete
• IP Rating: IP30
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Humidity: 5% to 95% non-condensing
• Power Consumption: 2.0 W (400 mA @ 5 VDC)
• Form Factor: Handheld / Presentation (Hybrid)
• Color: Black
• Indicators: Beeper, LED

Recommendations

For optimal performance, use the MS3780 Fusion with the optional stand for hands-free presentation scanning. Ensure the scanner is connected via a compatible interface cable (USB or RS232) and configured for your specific application. Regular cleaning of the scan window with a soft, lint-free cloth will maintain read accuracy.
