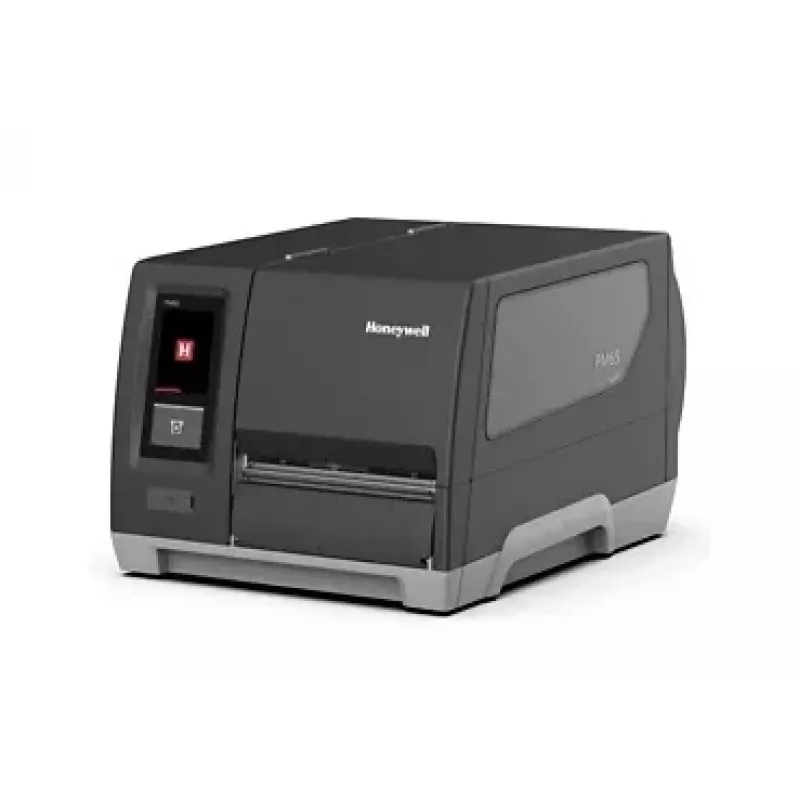

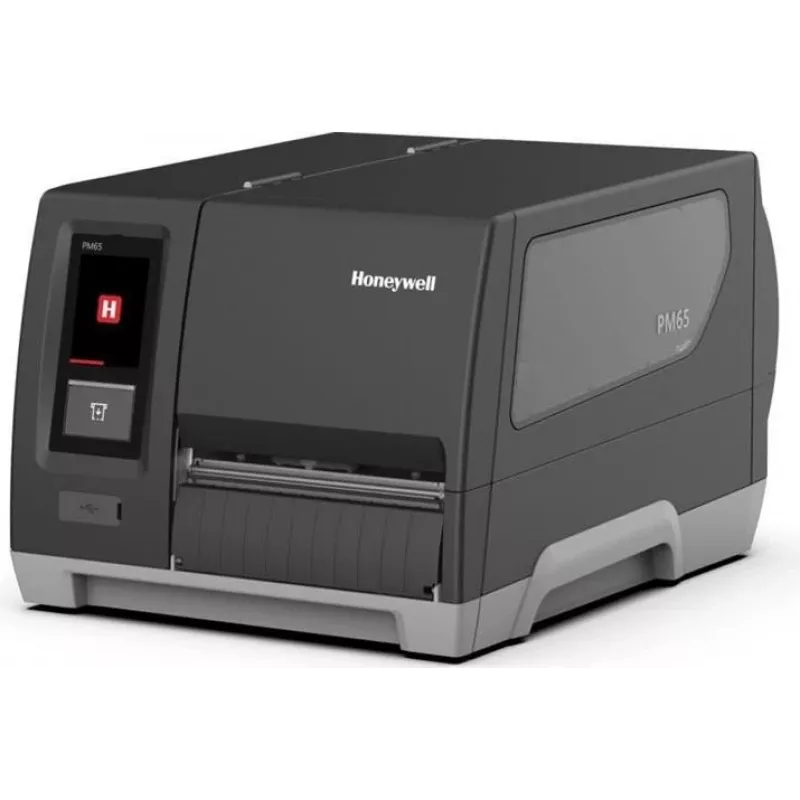

Honeywell PM65 teollinen lämpötulostin tarroille, 203 dpi, Rewind, LTS, syöttölaite, RTC, USB, RS232, Ethernet

With a 1 GHz ARM Cortex A9 processor and 128 MB each of Flash and SDRAM, the Honeywell PM65 delivers rapid label production at up to 300 mm/s, making it a powerful choice for high-volume industrial printing.

Overview

The PM65 is a thermal transfer label printer engineered for demanding environments. It features a 203 dpi print resolution and supports media up to 178 mm wide with a maximum print width of 167.4 mm. The printer handles large rolls up to 213 mm in diameter, reducing downtime for media changes.

What stands out

• Integrated rewind and label taken sensor (LTS) for efficient batch printing and applicator integration.
• Built-in dispenser (peel-off) for on-demand label application.
• Real-time clock for accurate time/date stamping on labels.
• Color touchscreen for intuitive configuration and monitoring.
• Connectivity options: USB, RS232, and Ethernet (10/100 Mbit).
• Supports multiple printer languages: Fingerprint, IPL, ZSim2, DPL, ESim, and XML-enabled.

Technical details

• Print technology: Thermal transfer
• Maximum resolution: 203 x 203 DPI
• Maximum print speed: 300 mm/s
• Maximum media width: 178 mm
• Maximum print width: 167.4 mm
• Maximum roll diameter: 213 mm
• Processor: ARM Cortex A9, 1 GHz
• Memory: 128 MB Flash, 128 MB SDRAM
• Display: Color touchscreen
• Connectivity: USB, RS232, Ethernet
• Media types: Labels, tags, tickets
• Sensor types: Gap, black mark, notch, continuous
• Housing material: Metal
• Power supply: Internal universal auto-sensing
• Operating temperature: 5°C to 40°C

Our verdict

The Honeywell PM65 is a robust industrial printer with advanced features like rewind, LTS, and dispenser, making it ideal for automated labeling applications. Its high-speed processing and versatile connectivity ensure reliable performance in demanding environments.
