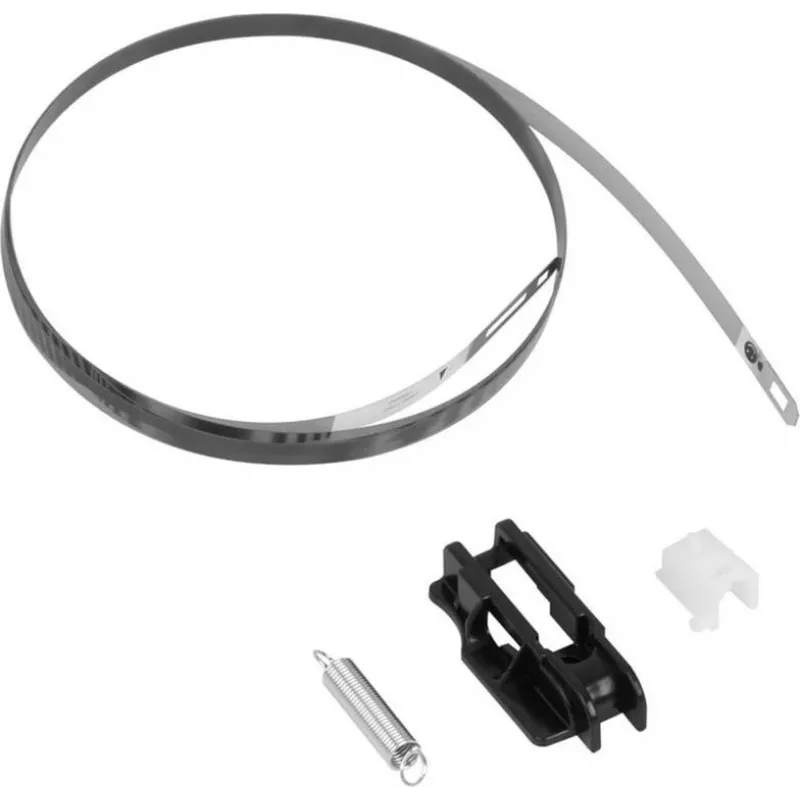

HP Ampxl 36 Encoder Strip Sv – vara-encoder-nauha suurkuvatulostimeen

HP Ampxl 36 Encoder Strip Sv is a replacement encoder strip designed for compatible HP large-format printers. The encoder strip supplies precise position feedback to the printer carriage, enabling accurate media movement and printhead alignment. It is intended for maintenance and repair to restore correct carriage positioning and reduce print banding and alignment errors, helping maintain consistent print quality in large-format applications.

Advantages

The encoder strip restores positional accuracy for the carriage drive system and improves repeatability of media movement without modifying printer mechanics. As a direct replacement component compatible with certain HP large-format printers, it provides the dimensional length and optical markings required for correct feedback signals. Installation can return the printer to factory-level carriage calibration, which reduces visible banding and misalignment that affect large-format prints.

Suitable for

• Maintenance and repair of compatible HP large-format printers
• Service centers performing routine carriage or print-quality diagnostics
• Technicians replacing worn or damaged encoder strips to restore alignment

Key specifications

• Function: optical encoder strip for carriage position feedback
• Form factor: long-format strip designed for large-format printer carriage systems
• Compatibility: intended for specific HP large-format printer models (verify model fit before purchase)
• Material: flexible, dimensionally stable film with printed optical reference markings

How to use

Power off the printer and follow the manufacturer service instructions for access to the carriage area. Remove the old encoder strip by releasing any retainers or clips, noting the routing and end-stop positions. Align the replacement encoder strip so its optical markings match the carriage sensor path, secure it with the original retainers or clips, and verify proper tension and flatness along the full travel path. Reassemble any removed covers, power on the printer, and run the printer’s calibration or head alignment routine to confirm restored positional accuracy.

Recommendations

Use genuine or manufacturer-specified replacement parts and perform installation in a static-free environment. Inspect the encoder strip for contamination or damage before installation, and clean carriage sensor windows if required. If alignment issues persist after replacement, consult service documentation or contact a qualified technician for further diagnostics.
