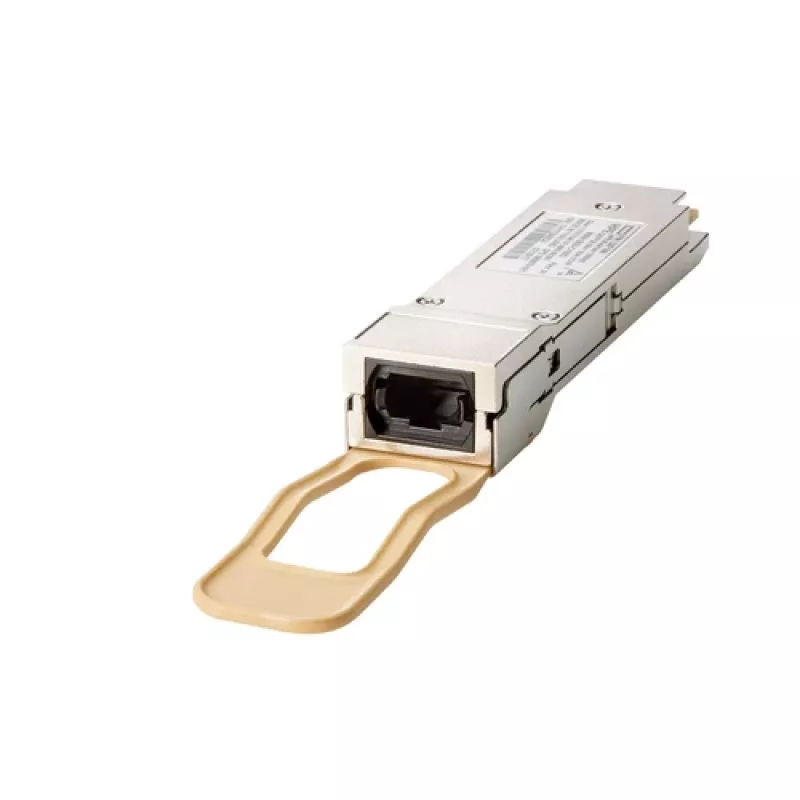

HPE 100GBE QSFP28 SR4 100m lähetin-vastaanotin

The HPE 100GBE QSFP28 SR4 100m Transceiver is a high-performance optical module designed for 100 Gigabit Ethernet connectivity in data centers and high-performance computing environments. It delivers reliable, high-speed data transmission over multi-mode fiber with MPO/MTP connectors.

Advantages

This transceiver offers exceptional data transfer rates of 100 Gbps, ensuring low-latency and high-bandwidth connections. It is hot-swappable and supports digital diagnostics monitoring (DDM) for real-time performance tracking. With a compact QSFP28 form factor, it maximizes port density and reduces power consumption to under 3.5 W.

Suitable for

• Data center interconnects
• High-performance computing clusters
• Enterprise networking upgrades
• HPE FlexFabric and compatible switches

Key specifications

• Data Transfer Rate: 100 Gbps
• Transceiver Type: QSFP28
• Connector Type: MPO-12 (MTP)
• Wavelength: 850 nm
• Max Distance (OM4 Fiber): 100 m
• Max Distance (OM3 Fiber): 70 m
• Fiber Type: Multi-mode Fiber (MMF)
• Optical Standard: 100GBASE-SR4
• Form Factor: Plug-in Module
• Interface: Ethernet
• Power Consumption: < 3.5 W
• Hot-Swappable: Yes
• Digital Diagnostics Monitoring (DDM): Yes
• Operating Temperature: 0 to 70 °C (32 to 158 °F)
• Number of Channels: 4 Transmit, 4 Receive
• Cable Requirement: MPO/MTP Multi-mode Fiber Cable
• Compatibility: HPE FlexFabric and compatible networking devices

Recommendations

For optimal performance, use with OM4 multi-mode fiber cables and ensure proper MPO connector alignment. This transceiver is ideal for 100G uplinks in top-of-rack switches and aggregation layers.
