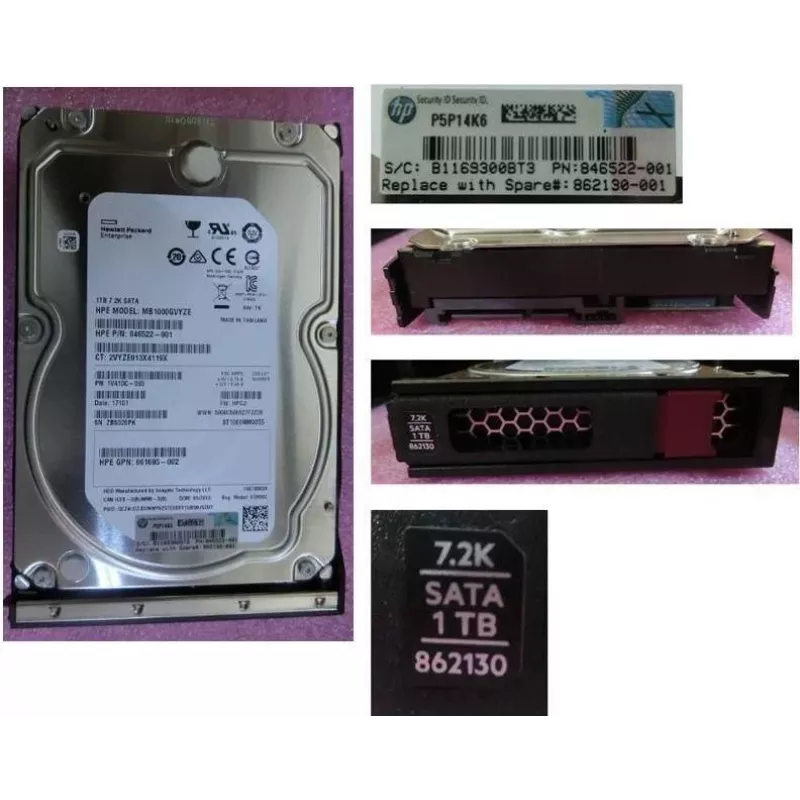

HPE 1TB SATA 6G 7.2K LFF LP kiintolevy (861686-S21)

With a 1TB capacity and 7200 RPM spindle speed, this HPE hard drive delivers 6Gb/s SATA throughput for demanding server workloads. The 3.5-inch LFF form factor with low-profile carrier fits a wide range of ProLiant and Apollo systems.

Overview

The HPE 861686-S21 is a midline-class hard drive engineered for read-intensive and general-purpose applications. It combines a 128MB cache with a 600MB/s external data transfer rate, ensuring consistent performance in virtualized and data-intensive environments.

What stands out

• 1TB storage capacity with 7200 RPM rotational speed
• SATA 6Gb/s interface for fast data transfers
• Low-profile digitally signed smart carrier for secure hot-swap
• 1.2 million hours MTBF for reliable operation

Technical details

• Form factor: 3.5-inch LFF
• Drive class: Midline (ML)
• Buffer size: 128MB
• External data transfer rate: 600MB/s
• Sector size: 512n (Native)
• Technology: Perpendicular Magnetic Recording (PMR)
• Operating temperature: 5°C to 60°C
• Power consumption (active): 7.5W
• Power consumption (idle): 4.5W
• Vibration (operating): 0.5G (RMS 5 to 500Hz)

Our verdict

A dependable 1TB SATA drive for HPE server environments, offering solid performance and hot-swap convenience with the digitally signed carrier.
