HPE Broadcom BCM57414 Ethernet 10/25Gb 2-Port SFP28 OCP3 sisäinen

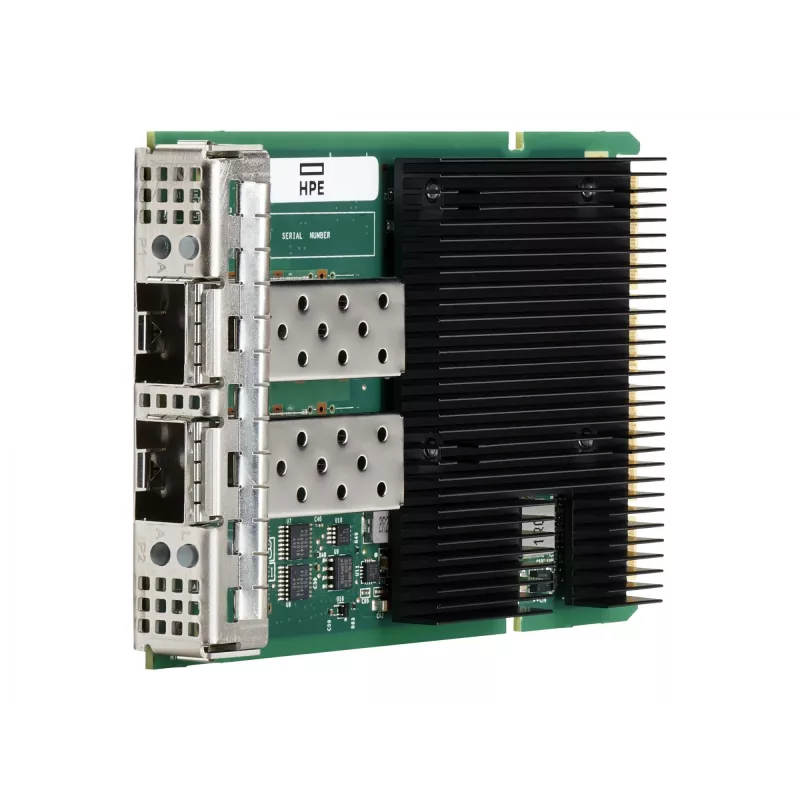

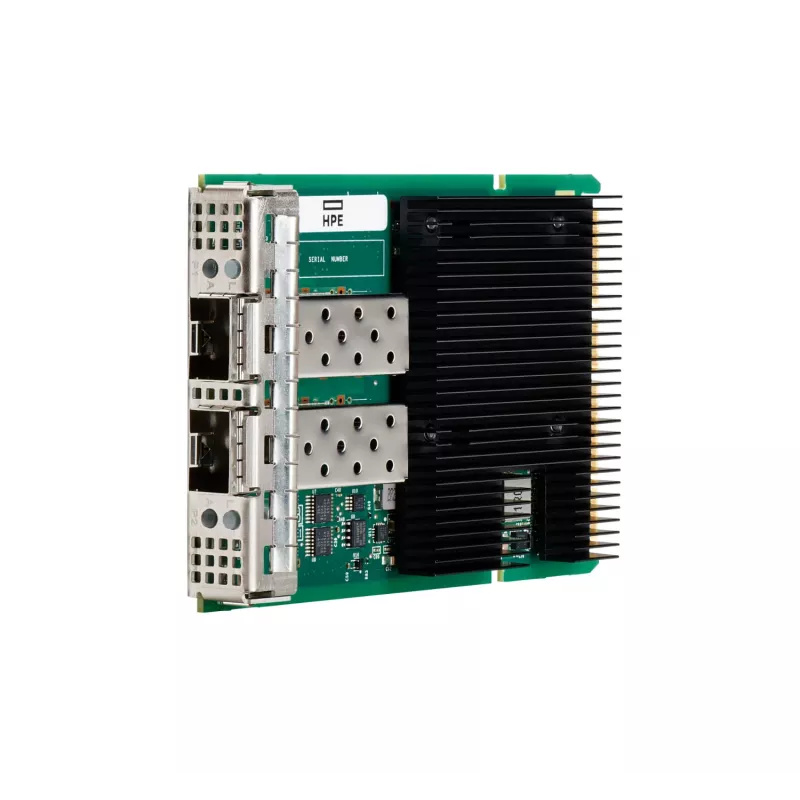

The HPE Broadcom BCM57414 Ethernet 10/25Gb 2‑port SFP28 OCP3 Internal is a dual‑port 10/25Gb Ethernet adapter designed for HPE Gen10 Plus servers. With two SFP28 ports and a PCI Express host interface, the adapter delivers up to 25 Gbit/s per port for high‑performance wired networking in data centers, hybrid cloud and streaming or mobile data environments. It integrates with HPE server and networking components to provide a scalable, interoperable solution for modern bandwidth and latency needs.

Advantages

The adapter supports multiple bandwidth profiles and is engineered to reduce CPU utilization through I/O offloads such as RDMA and tunneling. It uses signed firmware authentication and a root‑of‑trust architecture to help prevent unauthorized firmware installation, contributing to overall reliability and security. Compact dual SFP28 ports enable flexible fiber connectivity while maintaining high throughput.

Suitable for

• High‑performance server networking requiring 10Gb or 25Gb links
• Data center applications and hybrid cloud infrastructures
• Low‑latency workloads and RDMA‑enabled applications
• Fiber connectivity via SFP28 transceivers and cables

Key specifications

• Model: HPE Broadcom BCM57414
• Ports: 2 × SFP28
• Speeds: 10/25 Gb per port (maximum data rate 25000 Mbit/s)
• Host interface: PCI Express
• Connectivity technology: Wired (Ethernet / Fiber)
• Form factor: Internal, OCP3 compatible
• Brand: HP Enterprise
• MPN: P10115-B21-1
• EAN: 0190017325248

How to use

Install the adapter into an available PCI Express slot on a compatible HPE Gen10 Plus server or OCP3‑capable chassis following the server manufacturer's installation instructions. Populate each SFP28 port with compatible 10Gb or 25Gb SFP28 transceivers and connect appropriate fiber cables. Configure link settings and offload features in the server OS or management utility, and install vendor drivers and firmware updates authenticated by the platform to ensure proper operation and security.

Recommendations

Use vendor‑approved SFP28 transceivers and fiber cabling rated for 25Gb where required, verify driver and firmware compatibility with your HPE Gen10 Plus server model, and enable supported I/O offloads (for example RDMA) in software stacks to reduce CPU load for latency‑sensitive workloads.
