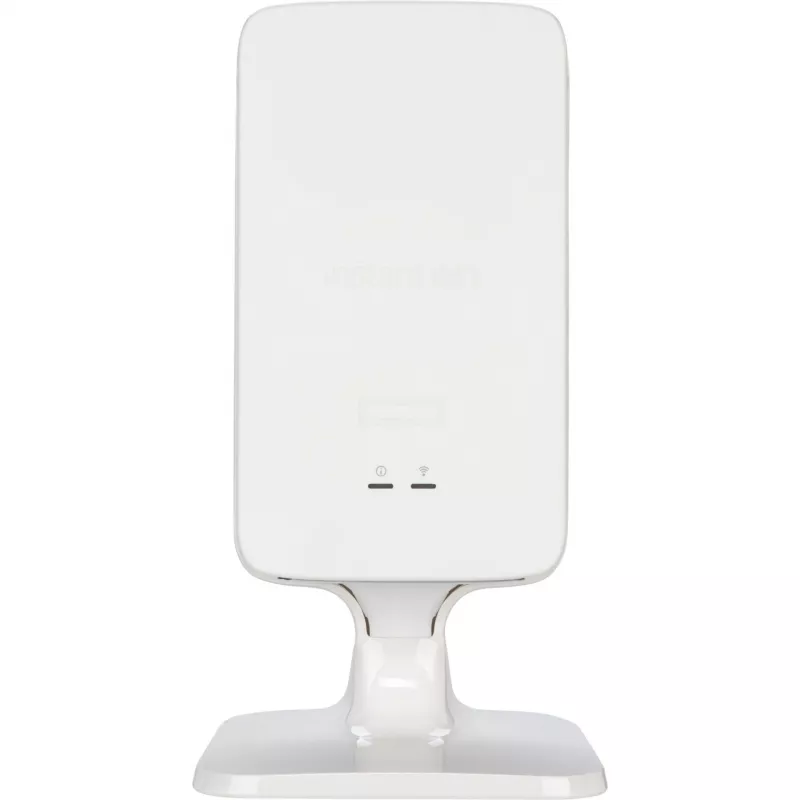

HPE Networking Instant On AP22D -tukiasemasarja virtalähteellä - Dual-Radio Wi-Fi 6

Small businesses and home offices often struggle with dead zones and sluggish Wi-Fi, especially in spaces where a single router can't reach every corner. The HPE Networking Instant On AP22D tackles this by delivering fast, reliable Wi-Fi 6 coverage in a compact form factor that can sit on a desk, mount on a wall, or attach to a ceiling. This set includes a power supply unit, so you can plug it directly into a standard outlet without needing Power over Ethernet infrastructure.

Who is it for

This access point is ideal for small offices, retail shops, clinics, and home professionals who need to support up to 75 active devices—laptops, smartphones, tablets, IoT sensors—without breaking the bank. It's perfect for those who want enterprise-grade performance with cloud-based simplicity, managed through the free Instant On mobile app or web portal.

Main features

• Wi-Fi 6 (802.11ax) technology for higher efficiency and capacity.
• Dual-band concurrent radios: 2.4 GHz and 5 GHz, each with 2x2 MIMO.
• Aggregate data rate up to 1.7 Gbps (574 Mbps on 2.4 GHz + 1200 Mbps on 5 GHz).
• Integrated omni-directional antennas with gains of 3.9 dBi (2.4 GHz) and 5.7 dBi (5 GHz).
• One Gigabit Ethernet port with PoE support (802.3af) for flexible power options.
• Included 12V DC power supply for non-PoE installations.
• Cloud-managed via Aruba Instant On app or web portal—no extra hardware or licenses.
• Advanced security: WPA2, WPA3, and Enhanced Open (OWE).
• Supports access point and mesh modes for extended coverage.
• Desktop, wall, or ceiling mounting options with included kit.

Specifications

• Wireless standard: Wi-Fi 6 (802.11ax)
• Radio design: Dual-band, dual-concurrent 2x2 MIMO
• Frequency bands: 2.4 GHz and 5 GHz
• Max data rate (2.4 GHz): 574 Mbps
• Max data rate (5 GHz): 1200 Mbps
• Aggregate peak data rate: 1774 Mbps
• Ethernet ports: 1 x Gigabit Ethernet (RJ-45)
• PoE support: 802.3af (Class 3)
• Antenna type: Integrated omni-directional
• Antenna gain: 3.9 dBi (2.4 GHz), 5.7 dBi (5 GHz)
• Power options: PoE (802.3af) or 12V DC (PSU included)
• Management: Cloud-based (Aruba Instant On app/web portal)
• Security protocols: WPA2, WPA3, Enhanced Open (OWE)
• Mounting: Desktop, wall, ceiling (kit included)
• Operating modes: Access point, mesh
• Recommended clients: Up to 75 active devices
• Processor: Dual-core ARM Cortex A53 @ 1 GHz
• Memory: 1 GB DDR3L

Tips

For best coverage, place the AP22D in a central location away from large metal objects and thick walls. If you have multiple AP22D units, you can create a mesh network to eliminate dead zones without running Ethernet cables. Use the Instant On app to monitor client usage and adjust settings remotely. The included power supply makes it easy to deploy in areas without PoE switches, such as reception desks or meeting rooms.
