HT Instruments EV-TEST100 EV-latausaseman testisovitin Type 2 Mode 3 1010960

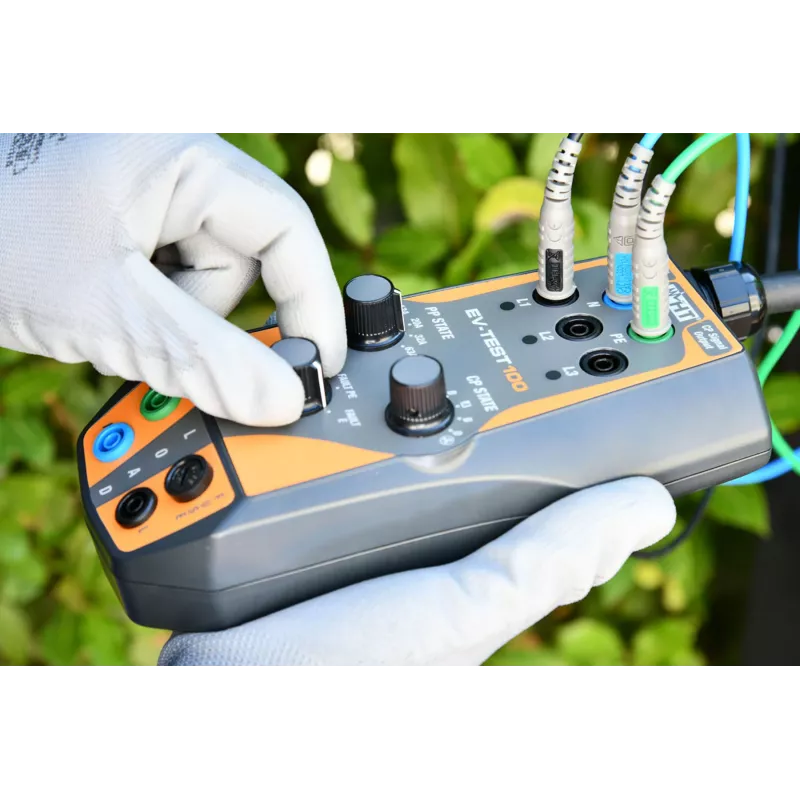

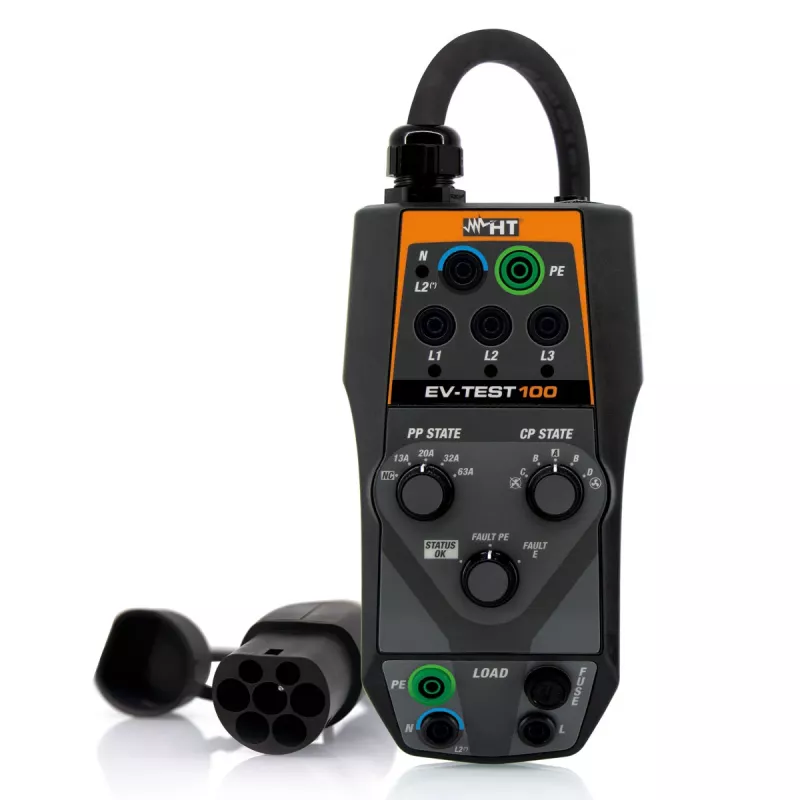

Electricians and EV charging station installers use the HT Instruments EV-TEST100 to verify that Mode 3 charging stations with Type 2 connectors are wired correctly and operating safely. The adapter plugs directly into the charging station and simulates vehicle states, cable coding, and PE faults, allowing you to test RCD trip times and measure voltages without a vehicle.

Key specifications

• Compatible with Mode 3 EV charging stations (IEC 61851-1)
• Type 2 connector (IEC 62196-2)
• Simulates vehicle states A, B, C, D
• Simulates cable coding 13A, 20A, 32A, 63A
• PE error simulation (interrupts PE conductor)
• RCD trip test with settings 30mA, 100mA, 300mA, 500mA, 650mA
• Phase presence indication for L1, L2, L3, N, PE via LEDs
• 4mm safety sockets for external measurements
• Power supply from the EVSE under test
• Safety rating CAT II 300V
• IP40 protection
• Operating temperature 0°C to 40°C
• Storage temperature -10°C to 60°C
• Includes soft carrying bag and user manual

Why choose it

The EV-TEST100 is a compact, self-powered adapter that eliminates guesswork when commissioning or troubleshooting EV charging stations. Its dedicated buttons for RCD testing and PE fault simulation speed up safety verification, while the clear LED indicators give immediate confirmation of phase presence.

Ideal use cases

• Commissioning new EV charging stations
• Periodic inspection and maintenance
• Troubleshooting charging faults
• Verifying RCD protection

Good to know

The adapter is designed for use by qualified electricians and must be used in accordance with local safety regulations. It does not include a built-in measurement display; use external test instruments via the 4mm sockets for detailed analysis.
