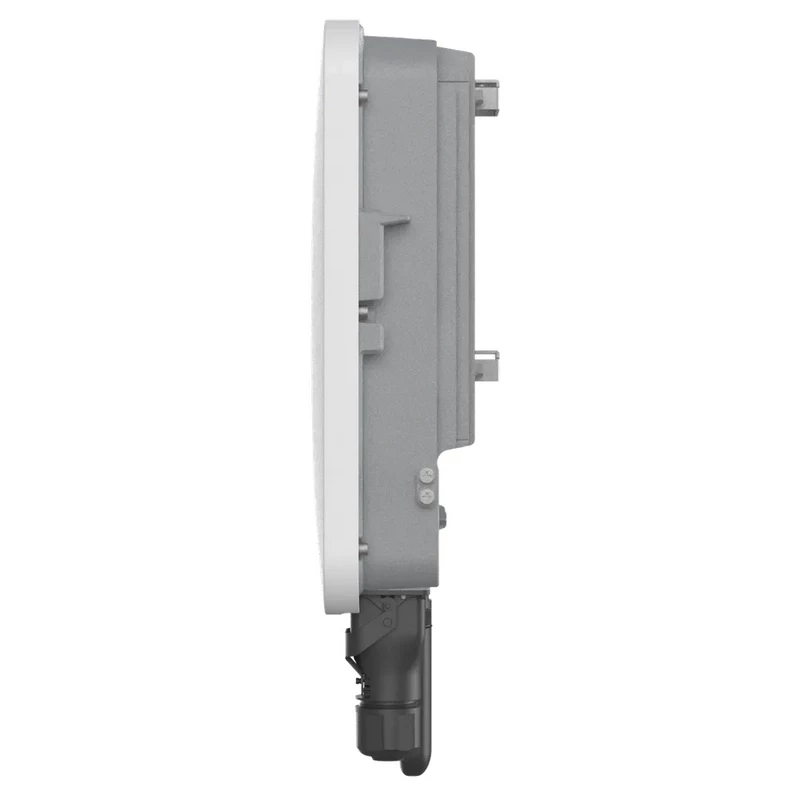

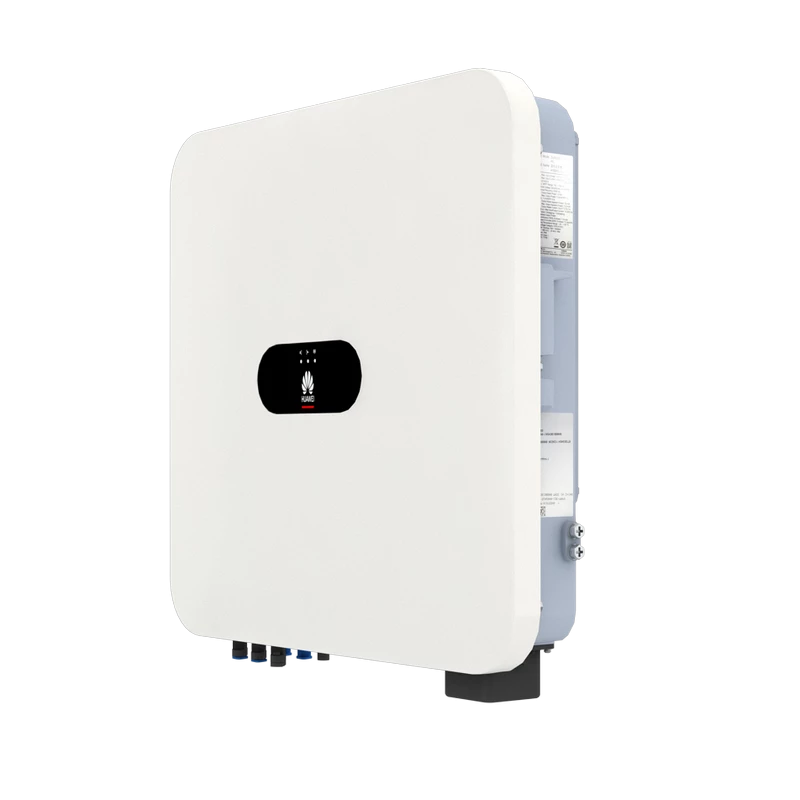

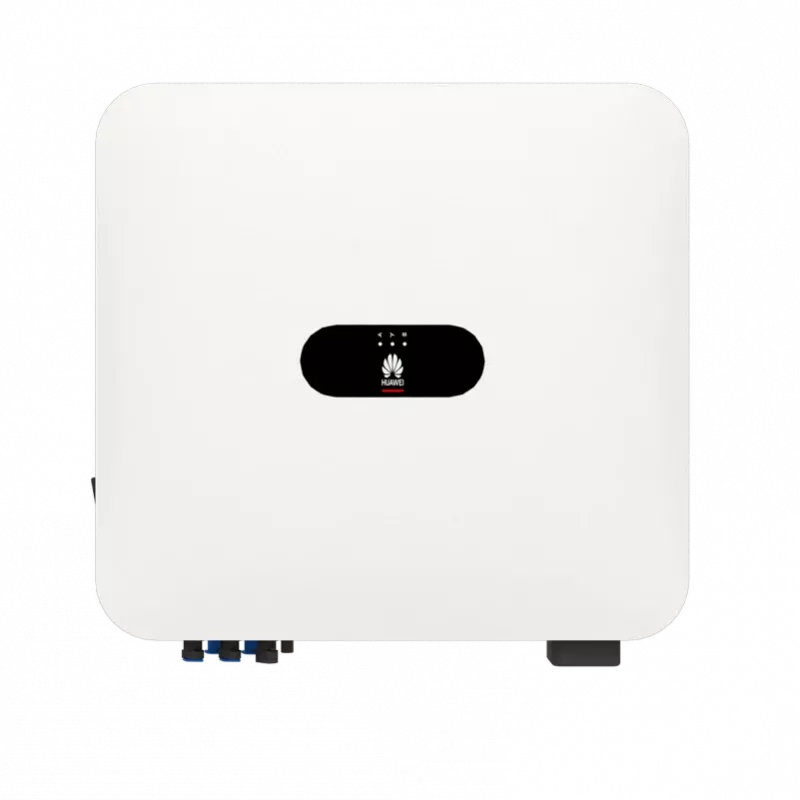

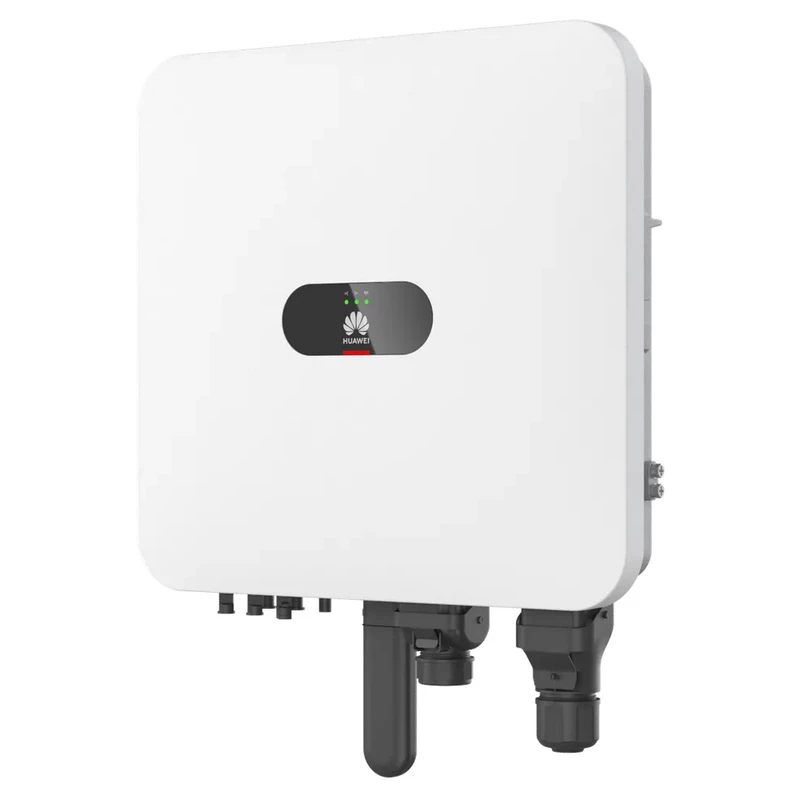

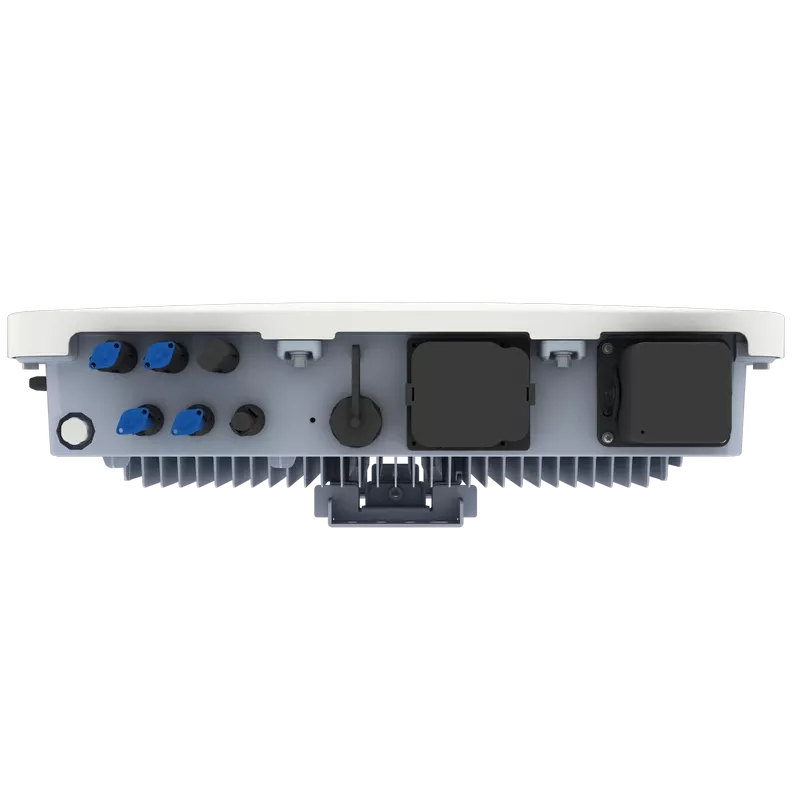

Huawei FusionSolar invertteri 3-vaiheinen, 2-MPPT, 10kW

The Huawei FusionSolar Inverter 3-Phase, 2-MPPT, 10kW is a high-performance grid-tied inverter designed for commercial and residential solar installations. With a maximum efficiency of 98.6% and European efficiency of 97.9%, it ensures optimal energy yield. The inverter features two MPPTs, each with a maximum input current of 12.5A, and supports a wide MPPT voltage range of 160V to 950V. It is compatible with Huawei LUNA2000 battery series for hybrid operation.

Advantages

High efficiency, natural convection cooling (no fans), IP65 protection for outdoor installation, integrated WLAN for easy monitoring, and comprehensive protection features including AFCI and RCMU.

Suitable for

• Three-phase commercial and residential solar systems
• Systems requiring high efficiency and reliability
• Integration with Huawei LUNA2000 battery storage

Key specifications

• Rated AC Output Power: 10 kW
• Max AC Apparent Power: 11 kVA
• Number of MPPTs: 2
• Max DC Input Voltage: 1100 V
• MPPT Operating Voltage Range: 160 V - 950 V
• Max Input Current per MPPT: 12.5 A
• Rated AC Output Voltage: 230 V / 400 V (3-Phase)
• Max Efficiency: 98.6%
• European Efficiency: 97.9%
• Protection: DC Reverse Polarity, AC Overcurrent, AC Short Circuit, Surge Type II DC & AC, AFCI, RCMU
• Communication: WLAN (integrated), Ethernet/4G (optional), RS485
• Operating Temperature: -25°C to +60°C
• Cooling: Natural Convection
• IP Rating: IP65
• Topology: Transformerless

Recommendations

For optimal performance, pair with Huawei LUNA2000 battery modules and use the FusionSolar monitoring app. Ensure proper ventilation and mounting according to installation manual.
