InLine 17910X HDMI-kaapeli 10 m HDMI tyyppi A (Standard) musta

High transmission quality over long distances:Hybrid cable technology combines fibre optics and copper for loss-free 8K/4K signal transmission up to 50 m.
Future-proof thanks to HDMI 2.1 support:Transmits up to 48 Gb/s and supports 3D, Dynamic HDR, eARC and 240 Hz - ideal for current and upcoming AV standards.
Rugged aluminium connectors:High-quality workmanship with gold-plated contacts for stable, long-lasting connections in professional installations.
Compact cable diameter:With an outer diameter of just 4.8 mm, it can be laid flexibly, even in tight cable ducts and wall openings.

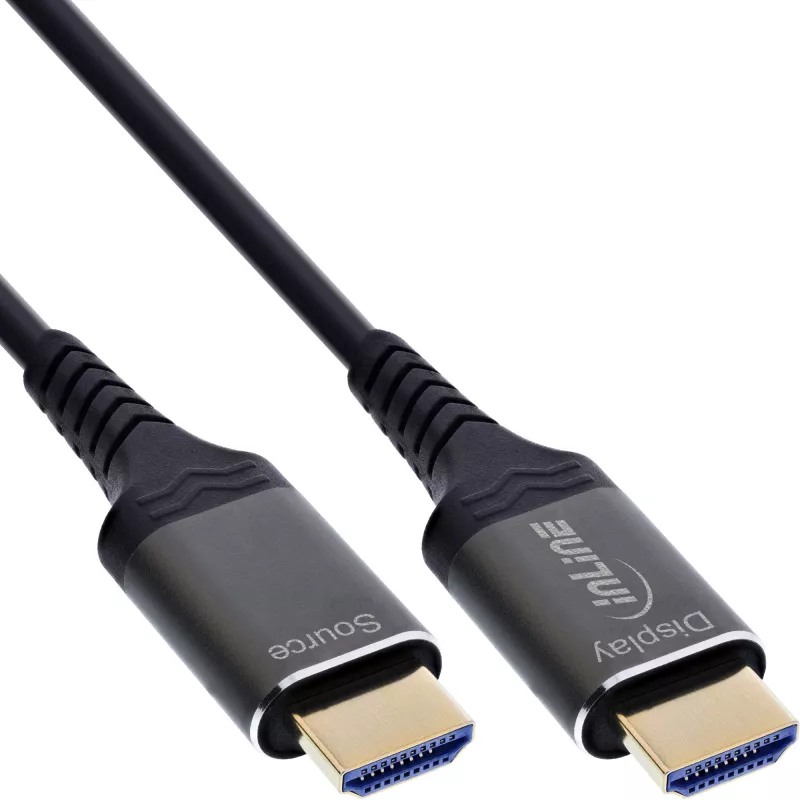

Directional for stable signal quality:Clear labelling of the signal direction ensures error-free installation and maximum performance.

The InLine® HDMI AOC cable series is the ideal solution for professional applications where the highest signal quality is required, even over long distances. Thanks to the combination of four fibre optic cores and seven copper strands, these hybrid cables offer uncompromising transmission of 8K/4K video signals with a bandwidth of up to 48 Gb/s. All current HDMI 2.1 standards such as Dynamic HDR, eARC, 3D or 240 Hz are reliably supported.
The cables are designed to be directional to ensure maximum signal stability - clearly indicated by the labelling on the connectors (source/display). Robust aluminium connectors with gold-plated contacts ensure long-lasting connections in demanding AV installations. Thanks to the narrow cable diameter of just 4.8 mm and the flexible PVC sheathing, the AOC cables can be laid easily and save space - ideal in conference rooms, digital signage applications or technical centres.
Rely on modern connection technology that makes no compromises, even over longer distances.

Hybrid cable consisting of 4 fibre optic and 7 solid copper strands
Directional signal cable: HDMI plug (source) to HDMI plug (display)
Cable: Ø 4.8 mm, PVC-sheathed
Max. Data transfer rate: 48 Gb/s (12 Gb/s per channel)
Supports 3D, HDCP, EDID, CEC, DDC, Dynamic HDR, eARC, ARC and other specifications according to HDMI

InLine 17910X. Cable length: 10 m, Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, Connector contacts plating: Gold, HDMI version: 2.1, 3D, Data transfer rate: 48 Gbit/s, Audio Return Channel (ARC), Product colour: Black

How to use

Connect one end of the InLine HDMI AOC cable to the HDMI output of the source device and the other end to the HDMI input of the display. Ensure both source and display are powered and set to the correct HDMI input. The active optical functionality is self-powered through the HDMI connector; no external power supply or inline repeaters are required. If the display does not automatically select the correct resolution or audio format, adjust settings in the source device's display and audio menus to match the desired output.

Recommendations

For optimal performance, avoid sharp bends or excessive twisting of the cable along its length, and route the cable away from high-power electrical equipment to minimize potential interference. Verify HDMI settings on both source and display to ensure 8K and high-sample-rate audio modes are enabled where supported. Use certified Ultra High Speed HDMI devices and cables throughout the signal path for best results.
