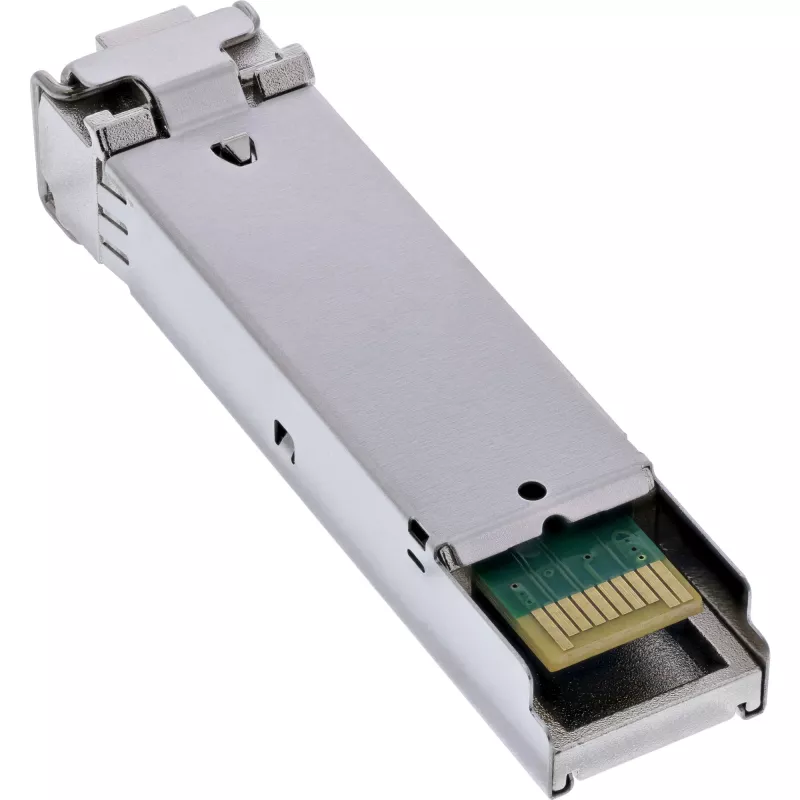

InLine 32335Y verkkolähetin-vastaanotinmoduuli kuitu 100 Mbit/s SFP 1310 nm

Efficient connection over short distances:Ideal for multimode fibre optic links up to 2 km – perfect for internal networks or data centres.
100BASE-FX standard for legacy compatibility:Supports 100Mb/s applications and is ideal for existing infrastructures.
Reliable transmission at 1310 nm:FP laser technology ensures stable performance on multimode fibres.
MSA standard compliant for broad compatibility:Easy to use in devices with SFP slots thanks to SFF-8472 compliance.
Hot-plug capable for uninterrupted maintenance:Installation and replacement possible during operation without system interruption.

The InLine® SFP Module 32335Y is a cost-effective solution for multimode fibre optic connections over short distances. With a range of up to 2 km and a data rate of 100 Mb/s, the module is ideal for classic 100BASE-FX applications in enterprise networks, industrial environments or data centres.
The integrated FP laser technology at 1310 nm and the PIN receiver with TIA amplifier guarantee reliable data transmission. Thanks to MSA SFF-8472 compliance, the module can be easily integrated into all common SFP slots.
With an LC duplex connection and hot-plug capability, the module is particularly user-friendly and flexible in use. The temperature range of 0 °C to +70 °C enables reliable use in professional IT environments.

Form factor: SFP (Small Form Factor Pluggable)
Transmission rate: 100 Mb/s (100BASE-FX)
Fibre type: Multimode
Range: up to 2 km
Transmitter wavelength: 1310 nm FP
Receiver wavelength: 1260–1620 nm

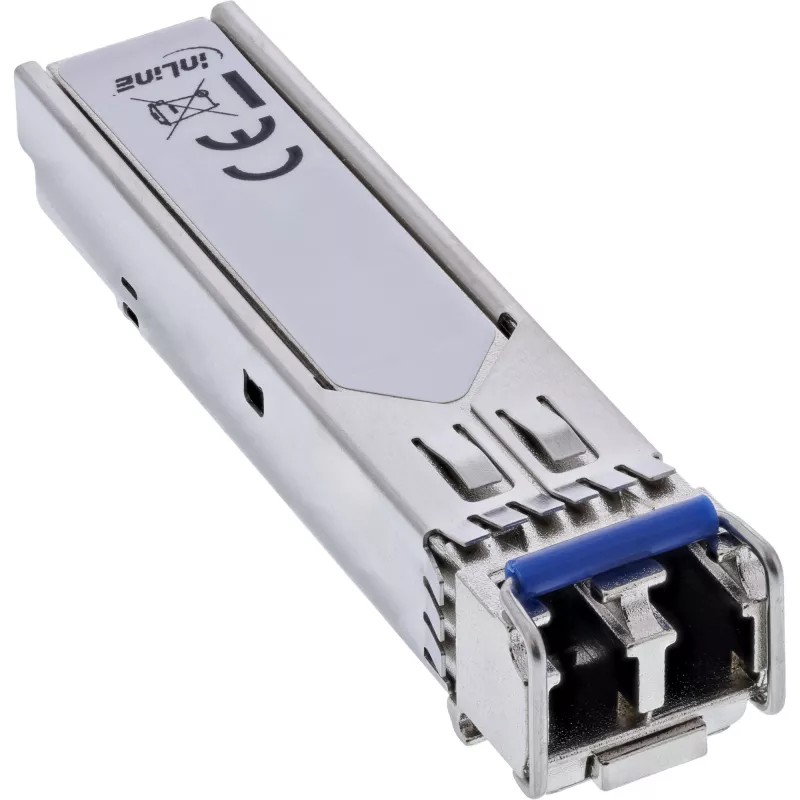

Connection: LC duplex
Compatibility: MSA SFF-8472, ITU-T G.957
Laser class: Class 1, IEC-60825
Extinction ratio: typ. 8.2 dB
Supply voltage: 3.3 V ±5 %
Current consumption: max. 300 mA
Power consumption: max. 1.0 W
Operating temperature: 0 °C to +70 °C

Note on coding:
Our SFP modules are factory-coded – whether for Cisco, Intel or other systems, which may limit your choice.
For maximum compatibility, we now programme individually according to customer requirements.
Please contact your sales representative.

InLine 32335Y. SFP transceiver type: Fiber optic, Maximum data transfer rate: 100 Mbit/s, Interface type: SFP. Input voltage: 3.3 V, Power consumption (typical): 1 W. Compliance certificates: CE, TÜV mark. Width: 57 mm, Depth: 0.17 mm, Height: 13 mm. Package width: 60 mm, Package depth: 90 mm, Package height: 20 mm

How to use

Insert the SFP module into an available SFP slot on your switch, router or media converter until it seats securely. Attach the appropriate multimode fiber patch cable with compatible connectors to the transceiver port. Verify link activity and speed through the device management interface or status LEDs. If necessary, configure the connected network ports for the desired duplex and speed settings; most devices negotiate 100 Mb/s automatically when supported. To remove the module, follow the equipment manufacturer’s hot-swap procedure to avoid signal interruption or hardware damage.

Recommendations

Use quality multimode fiber cabling and matched connectors to maintain signal integrity. Keep fiber ends clean and inspect them before connection. Observe bend radius limits for multimode fiber and perform link tests after installation to confirm expected performance.
