InLine 60604I USB-C-jakokytkin ja 4-porttinen USB-keskitin

Efficient device management on two computers simultaneously:The USB-C switch enables central control of up to four USB devices with easy switching via a button.
Reliable data transfer at up to 5 Gb/s:The integrated USB 3.2 Gen.1 hub ensures fast and stable connection of all connected devices.
Space-saving solution for IT workstations and test environments:Compact design and easy integration for changing computer assignments in professional IT scenarios.
LED status indicator for active device assignment:Clear visual feedback on the currently connected source minimises the risk of confusion during system operation.
Power supply via DC input possible:Supports optional power supply for power-hungry USB peripherals such as external hard drives.

The InLine® 4-to-2 USB-C Switch with integrated 4-port USB hub based on USB 3.2 Gen.1 is the ideal solution for professional applications where two computers need to access a shared USB infrastructure. With a single switch button, IT users, technicians or system houses can quickly switch between two computers while the connected USB devices (e.g. mouse, keyboard, printer or external storage) remain automatically connected to the active system.
Supporting data transfer rates of up to 5 Gb/s, the switch ensures a high-performance connection. The integrated LED indicator provides clear feedback on the currently active source and reduces operating errors in everyday work. The compact design is ideal for locations with limited space, such as server rooms, test stations or training environments.
An additional power supply can be provided via the DC connection – particularly relevant for peripheral devices with higher energy requirements. Thanks to the included USB-C and power cables, the switch is ready for immediate use and can be integrated into existing systems without driver installation.

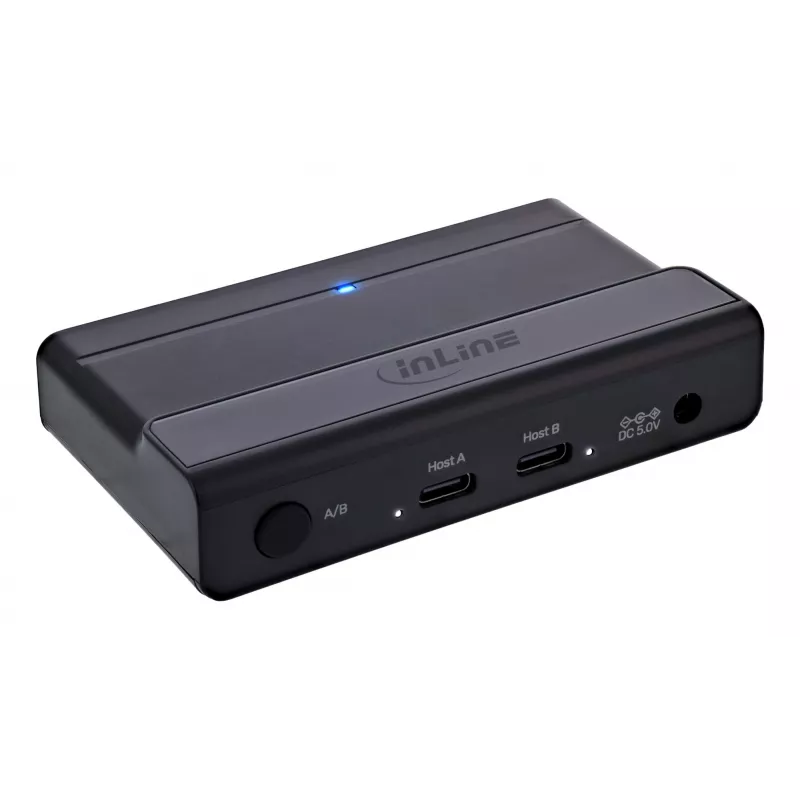

Input: 2x USB-C 3.2 Gen.1 socket

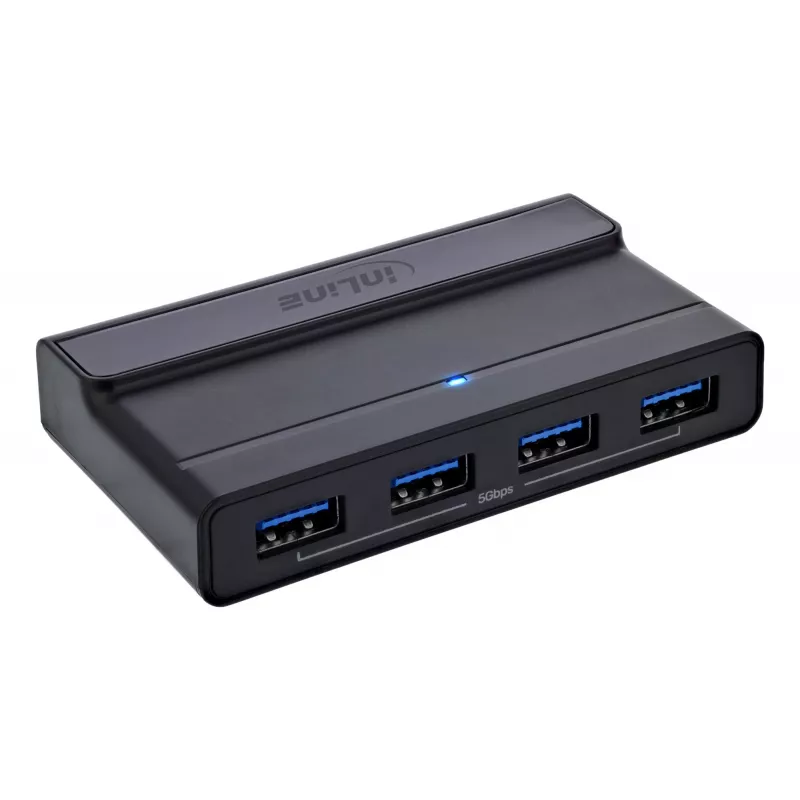

Output: 4x USB-A 3.2 Gen.1 socket
Toggle switch for selecting the source
LED indicator for active source
DC power socket (3.5x1.35mm)
Dimensions (LxWxH): approx. 92 x 54 x 19 mm
Colour: black
Bootable
Operating temperature: 0°C to +40°C

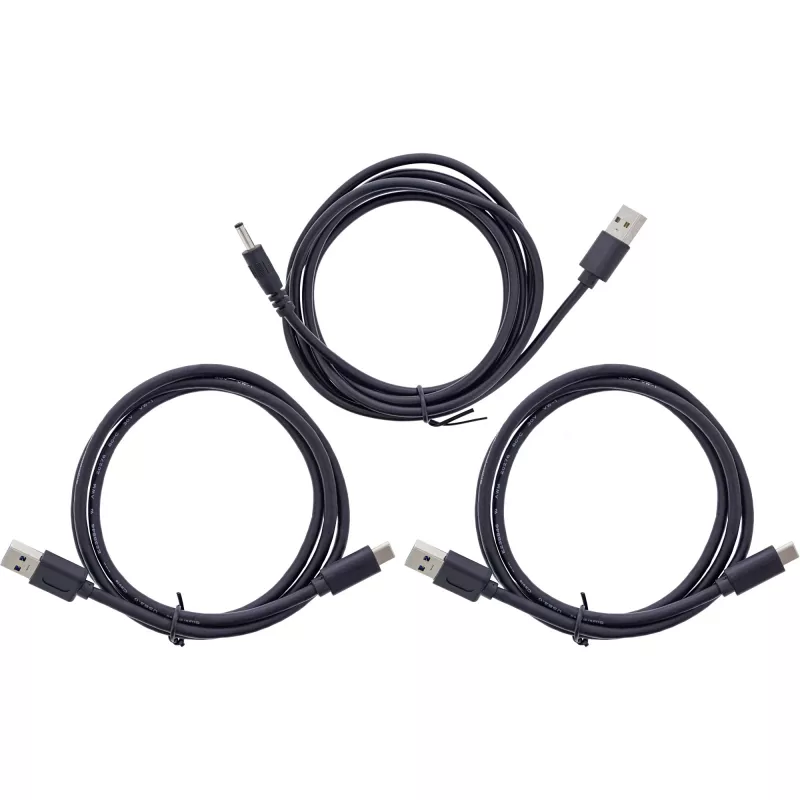

Scope of delivery: Switch, 2x USB-C to USB-A cables, 1x DC to USB-A cable, manual (DE/EN)

InLine 60604I. Output interface: USB Type-A, USB version: 3.2 Gen 1 (3.1 Gen 1). Maximum data transfer rate: 5 Gbit/s, Product colour: Black. Width: 55 mm, Depth: 93 mm, Height: 20 mm. Cables included: USB Type-A - USB Type-C. Package type: Hanging box

How to use

Connect the two host computers to the device via the supplied USB-C cables and plug your USB peripherals into the four USB-A ports. If connected peripherals require additional power, attach an appropriate DC adapter to the 3.5×1.35 mm power socket. Use the toggle button on the unit to switch the active host; the LED indicator will show which computer currently has control of the connected devices. No driver installation is required for standard USB devices, and the switch supports bootable devices when connected.

Recommendations

For stable operation with power-hungry devices such as external HDDs or SSDs, use the optional DC power supply. Place the switch in a ventilated area and avoid exposure to temperatures outside the specified 0°C to +40°C range. Ensure USB cables are fully inserted to maintain reliable data transfer at up to 5 Gb/s.
