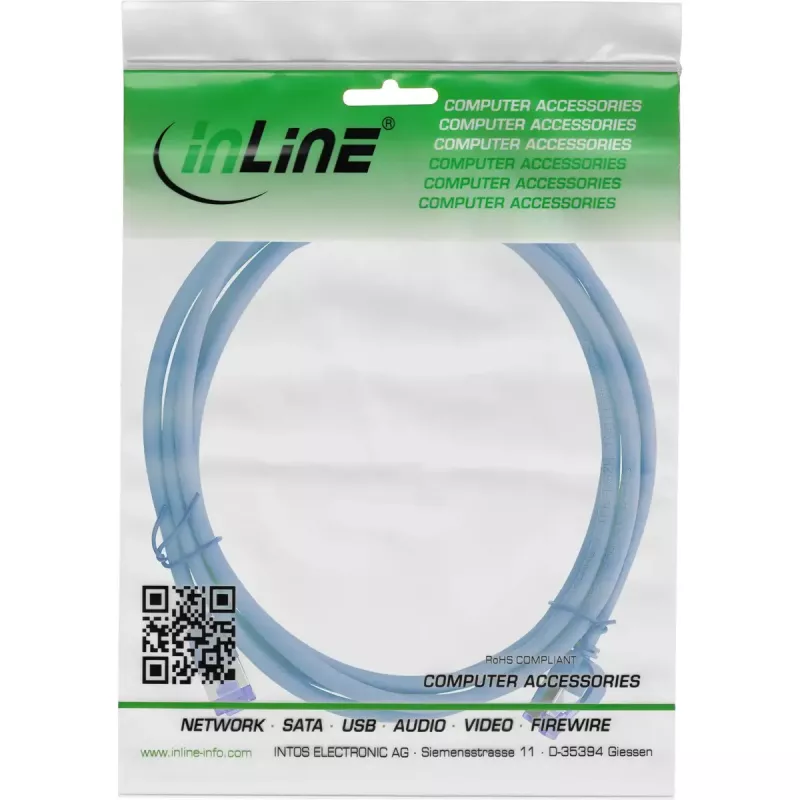

InLine 74925B verkkokaapeli sininen 25 m Cat6a S/FTP RJ-45 10000 Mbit/s

InLine 74925B Networking Cable Blue 25 m Cat6a S/FTP RJ-45 10000 Mbit/s

Space-saving design for maximum port density: about 40% less space than conventional AWG26 patch cables, ideal for network cabinets and server rooms. High-quality copper conductors for maximum performance: full Cat.6A transmission quality with up to 10 Gbit/s over lengths up to 30 metres. PoE support up to 87 W (4PPoE) for energy-efficient operation of IP cameras, access points or VoIP phones without separate power supplies. Sustainable and economical: roughly 25% material saving reduces transport and manufacturing costs and improves the carbon footprint. A flexible, safe TPE (LSZH) jacket that is flame-retardant, halogen-free and highly flexible for tight cable runs. The InLine Slim Cat.6A S/FTP patch cable series combines top network performance with maximum space and energy efficiency; the slim AWG28 conductors allow higher port density and better airflow for improved cooling. Unlike thinner AWG32 cables it supports full Cat.6A quality at up to 500 MHz and 4PPoE up to 87 W. The high-quality copper conductors minimise signal loss for a reliable connection even at lengths up to 30 metres, while the S/FTP double shielding protects against electromagnetic interference. The TPE (LSZH) jacket combines flexibility with fire safety: halogen-free, flame-retardant and low-smoke. Additional specifications: conductor material pure copper; construction S/FTP (pair and overall shielding); jacket TPE (LSZH, Low Smoke Zero Halogen); wire gauge AWG28; operating temperature -20 to +75°C; outer diameter 4.5 mm; wiring 1:1 to T568B; PoE support yes, up to 87 W (4PPoE). InLine 74925B: cable length 25 m, standard Cat6a, shielding S/FTP (S-STP), connectors RJ-45 to RJ-45 with gold-plated contacts, data rate 10000 Mbit/s, colour blue. How to use: connect the RJ-45 plugs to the matching Ethernet ports following T568B wiring, route the slim cable through the cabinet or rack for high port density and good airflow, verify your switch or injector supports 4PPoE and the required power budget for PoE devices, and avoid sharp bends and stress at the connectors to preserve signal integrity.

Specifications

• Country of origin: Taiwan
• Depth: 25000 mm
• Height: 12 mm
• Operating temperature (T-T): -20 - 75 °C
• Package depth: 345 mm
• Package height: 52 mm
• Package weight: 560 g
• Package width: 260 mm
• Product colour: Blue
• Storage temperature (T-T): -20 - 75 °C
• Weight: 540 g
• Width: 15 mm
• Compliance certificates: CE, REACH, RoHS
• Package type: Polybag
• Quantity per pack: 1 pc(s)
• Package volume: 4700 cm³
• Data transfer rate: 10000 Mbit/s
• Cabling technology: 10GBase-T
• Plug and Play: Yes
• Cable length: 25 m

Genuine Inline product — MPN: 74925B · EAN: 4043718335336.
