InLine 76662D liitäntäkortti/adapteri sisäinen Molex 4-pin, USB 3.2 Gen 1 (3.1 Gen 1)

Expands your PC with four additional USB 3.2 Gen.1 ports– three external and one internal USB-A port
Supports USB Super-Speed (up to 5 Gb/s)for fast data transfers
Backward compatible with older USB standards (USB 2.0, USB 1.1)
Molex compatible 4-pin connectorfor additional power supply for high power requirements
Plug & Play – No external drivers required

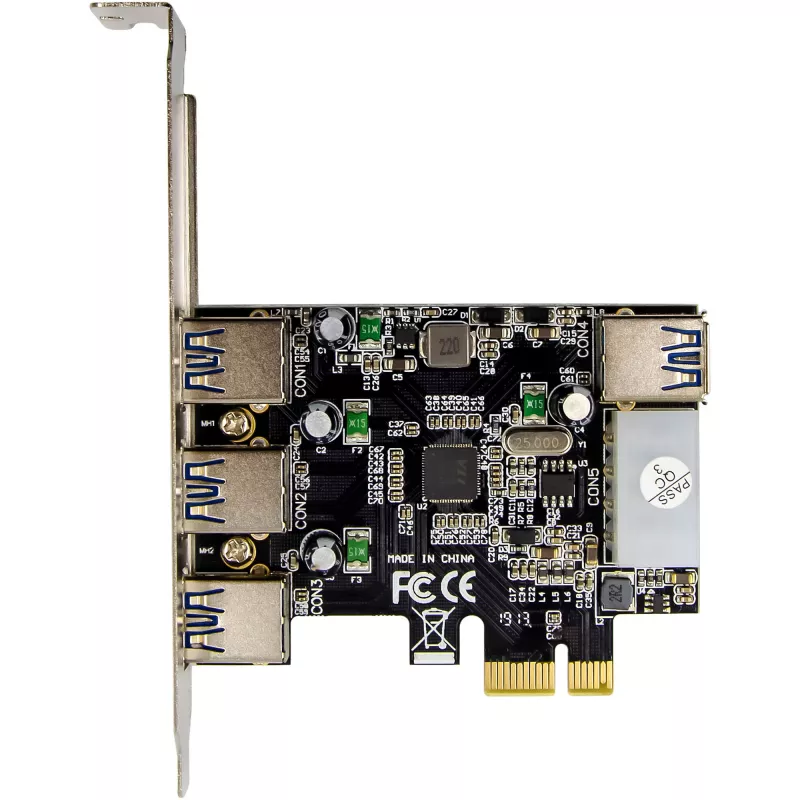

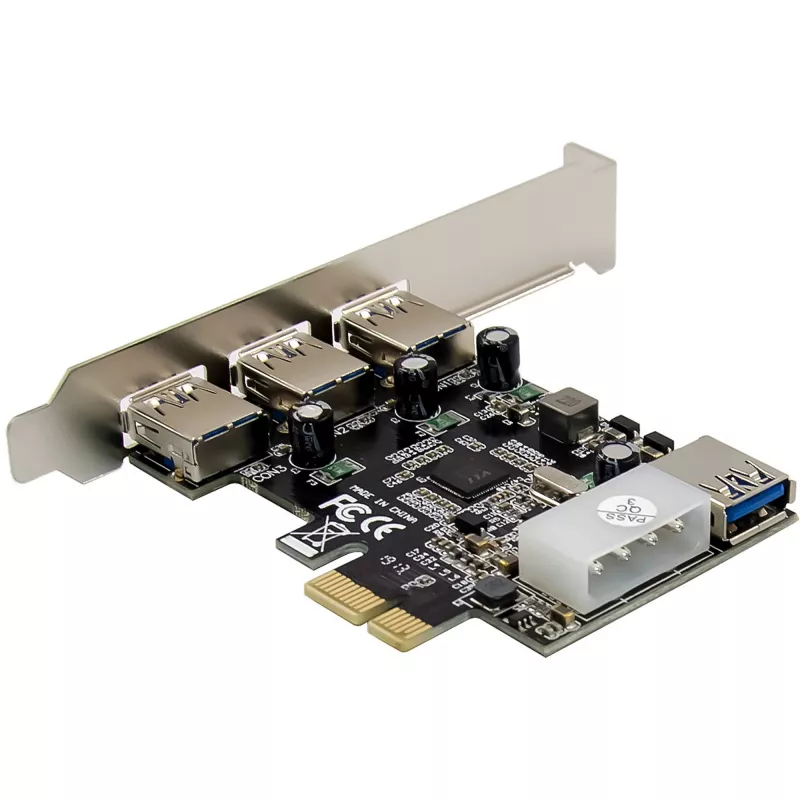

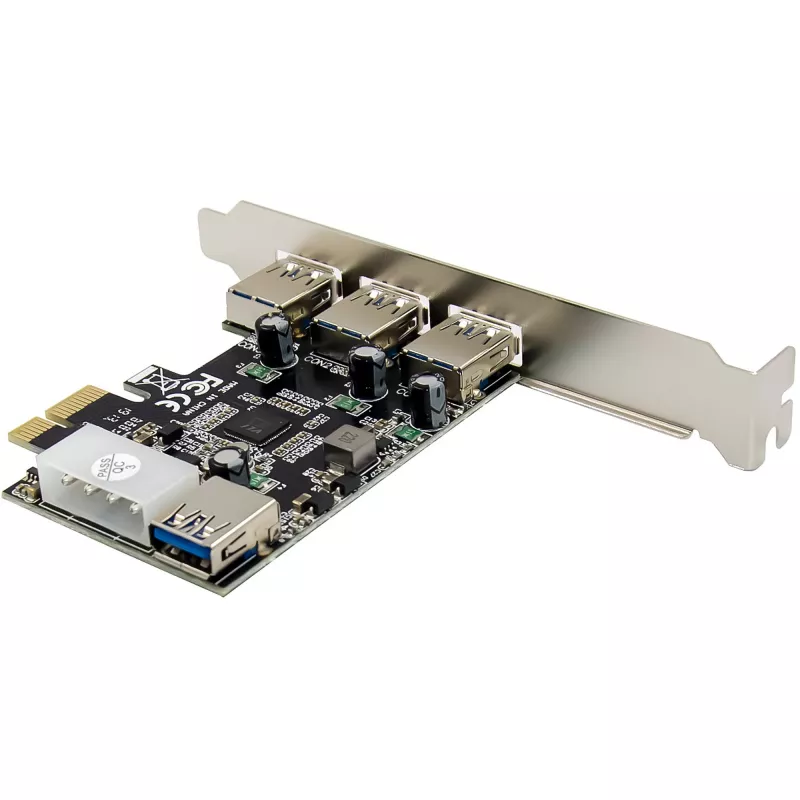

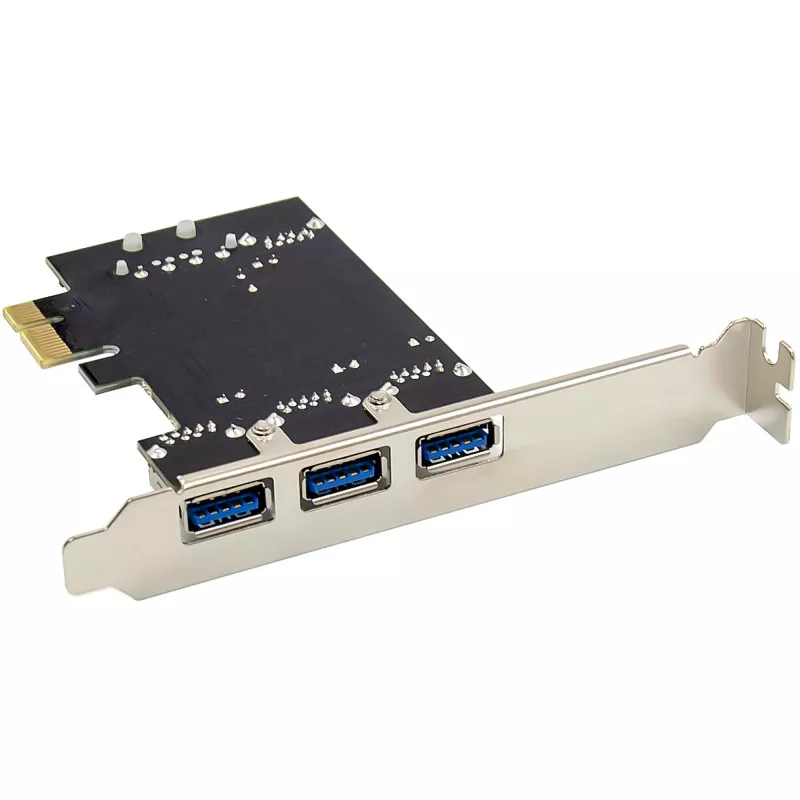

This InLine® PCI Express card enables the simple expansion of a PC by three external and one internal USB 3.2 Gen.1 port. Thanks to the VIA VL805 host controller, the card offers USB super speed with up to 5 Gb/sand is completely backwards compatiblewith older USB standards.
For the stable operation of external devices with higher power consumption, the card has a Molex-compatible 4-pin power connector, which ensures an additional power supply if required. The card supports Plug & Play and Hot Plugand is ready for immediate use.

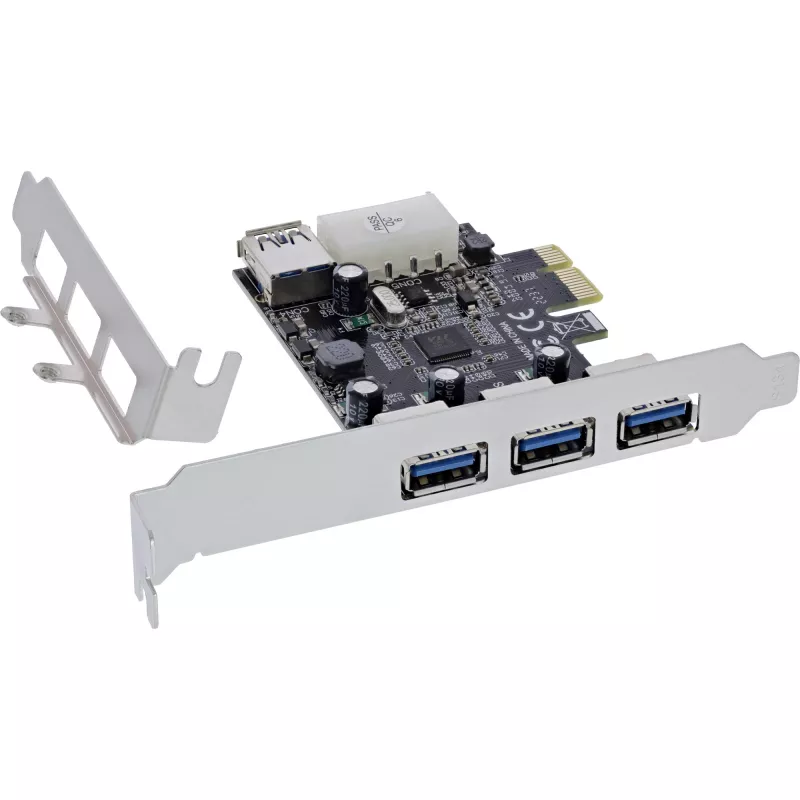

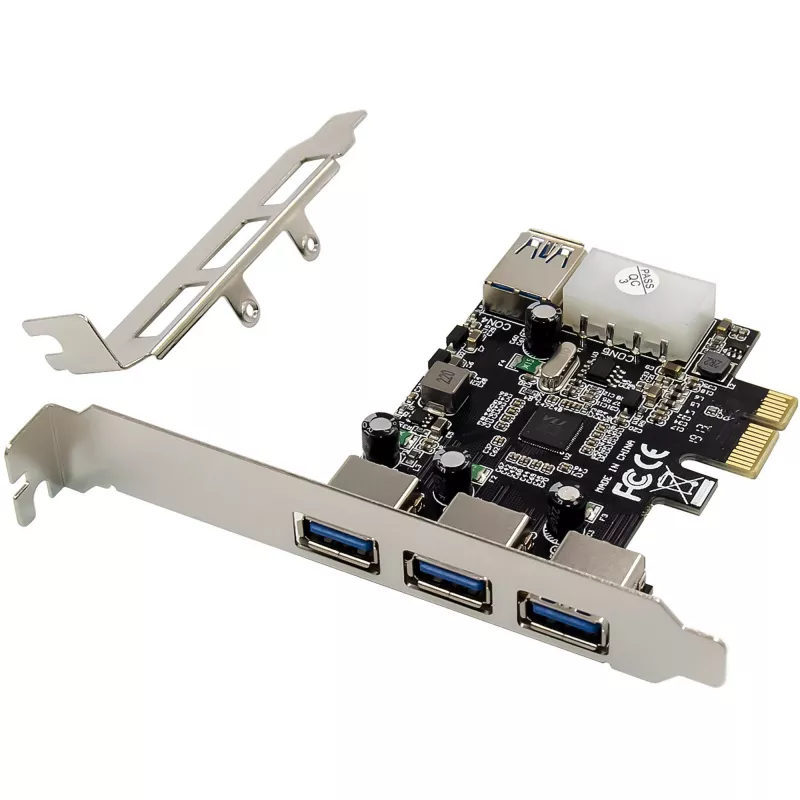

The compact designand the supplied low-profile slot bracketenable installation in both standard PCs and compact cases.
Technical data:

Bus type & PCIe: PCIe v2.0
Chipset: VIA VL805 (USB)
Ports – interfaces:
3 x external USB 3.2 Gen.1 A sockets
1 x internal USB 3.2 Gen.1 A port
1 x Molex compatible 4-pin power connector

Data rates:
Super-Speed: up to 5 Gb/s
High speed: 480 Mb/s
Full speed: 12 Mb/s
Low speed: 1.5 Mb/s

Dimensions: 80 mm x 60 mm (PCIe board)

Operating conditions:

Operating temperature: -40 °C to +85 °C

Functions:

Supports legacy USB functions
Plug & play and hot plug compatible
No external drivers required

System requirements:Hardware:

PC with one free PCIe slot (x1, x4, x8 or x16)
Motherboard with support for PCI Express Base Specification 1.0 or higher
If required: a free Molex compatible 4-pin connector

Operating system support:

Windows: 11, 10, 8.1, 8, 7, Vista, XP
Linux: from kernel 2.6.31

Scope of delivery:

1 x InLine® PCI Express card, 3x+1x USB 3.2 Gen.1
1 x low-profile slot bracket
1 x CD with driver
1 x instruction manual (German/English)
Operating temperature: 0° C – 55° C
Storage temperature: -40° C – 70° C
Humidity: 10% - 90% non-condensing

InLine 76662D. Host interface: PCIe, Output interface: Molex 4-pin, USB 3.2 Gen 1 (3.1 Gen 1), Host interface gender: Male. Country of origin: Taiwan. Chipset: VIA VL805, Data transfer rate (max): 5 Gbit/s. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP, Linux operating systems supported: Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel.... Width: 80 mm, Depth: 60 mm, Weight: 45 g

How to use

Power off the PC and install the card into an available PCIe slot (x1, x4, x8 or x16). If external devices require additional power, connect a free Molex-compatible 4-pin cable from the system power supply to the card. Replace the slot bracket if needed for low-profile cases using the supplied bracket. Boot the system and connect USB devices to the external or internal Type-A ports. The card supports Plug & Play and Hot Plug; on supported operating systems no extra driver installation is normally required.

Recommendations

For reliable performance with high-current devices (external drives, some USB hubs, or devices with high peak draws), connect the Molex-compatible 4-pin power cable. Ensure the motherboard supports PCI Express Base Specification 1.0 or higher and that a suitable free PCIe slot is available. For legacy systems, verify OS compatibility: Windows 11/10/8.1/8/7/Vista/XP or Linux kernel 2.6.31 and later.
