InLine 92502I kaapeliliitin riviliitin / D-Sub 25 vihreä

Time savings during installation:Quick wiring via screw terminals for 18–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Stable connection thanks to screw lock:The 2-row D-Sub-25 connector is equipped with a mounting thread (UNC #4-40) and enables secure mechanical fixation with matching sockets.
Standard-compliant DIN rail mounting: The robust DIN rail housing allows direct mounting on mounting rails – saving time, ensuring safety, and saving space in the control cabinet.

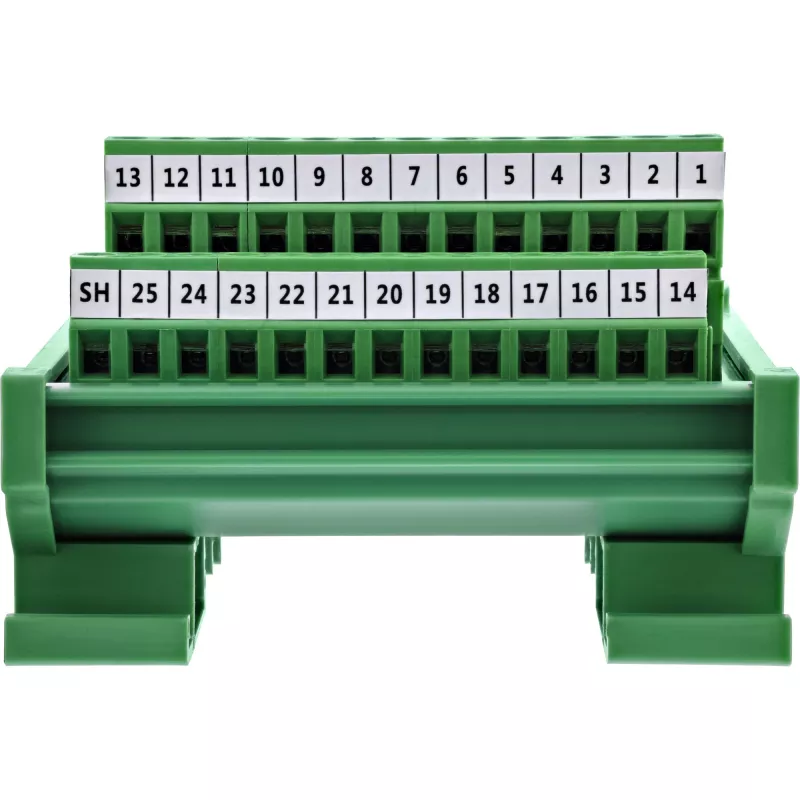

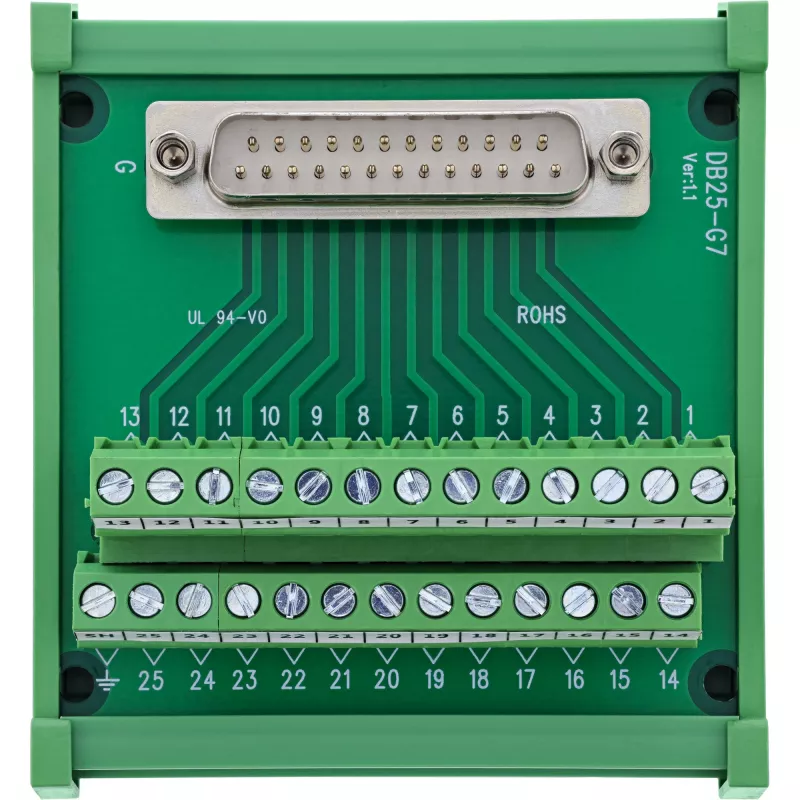

Clear terminal strip thanks to numbering: Each of the 25 terminal connections is clearly numbered – ideal for structured wiring, troubleshooting, or temporary test setups.
High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.7 A per pin ensure reliable signal transmission – even under continuous load.

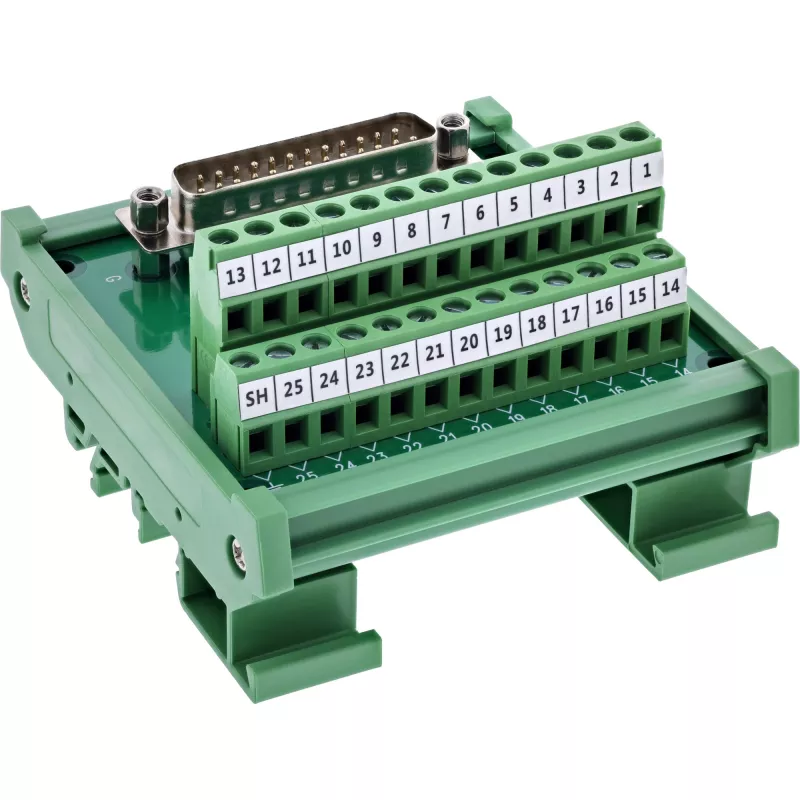

The InLine® D‑Sub 25 terminal block with connector in a 2-row design is specially designed for structured installations on DIN rails. The screw terminals with pressure plate enable quick and secure connection of single wires in the 18–26 AWG range – tool-assisted with a flat-head screwdriver ≤ 2.5 mm.
The integrated screw lock (UNC #4-40) ensures a vibration-proof connection to matching sockets. The compact housing with integrated DIN rail clip is ideal for control, test, and distribution applications. The numbered terminal positions greatly facilitate service, documentation, and rewiring.

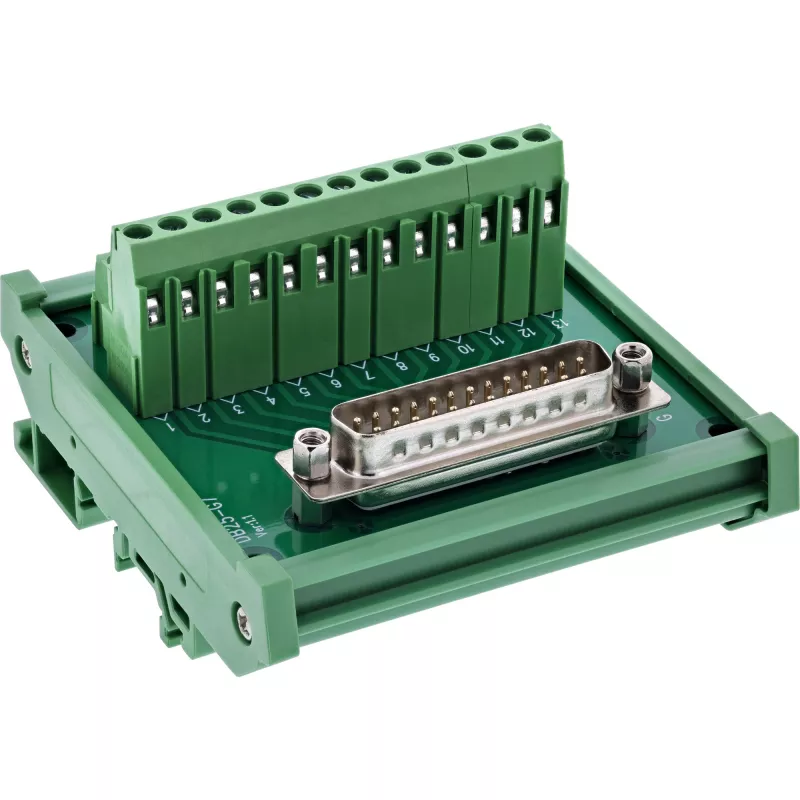

D-Sub 25 connector:2-row, with mounting thread for connector locking (UNC #4-40)
Connection technology:Screw terminal with pressure plate, numbered
Connection range:18–26 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current: 0.7 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–20 °C to +105 °C
Insulation layer:EVA insulation on underside

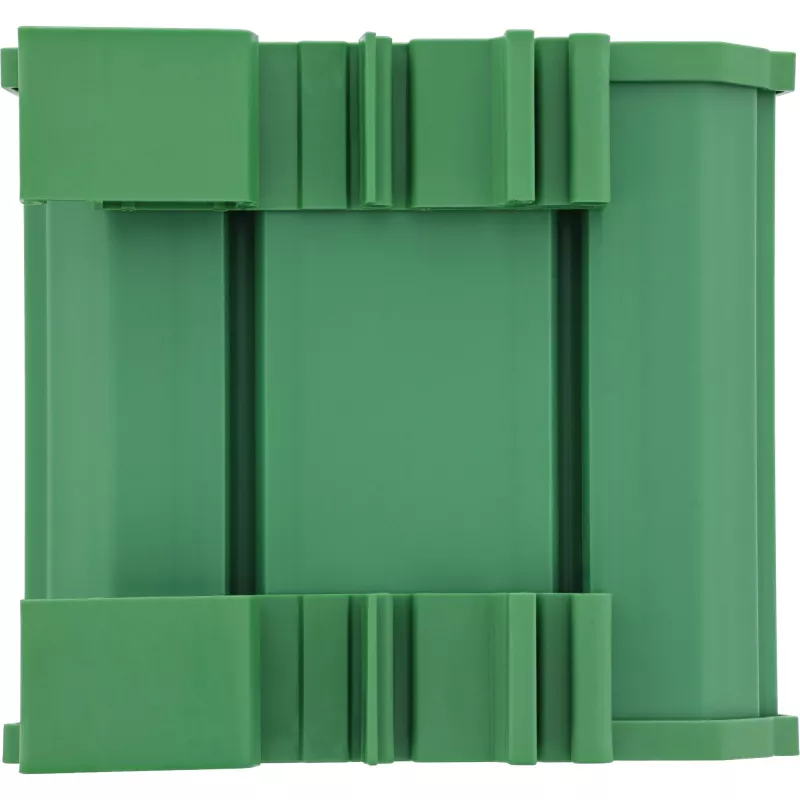

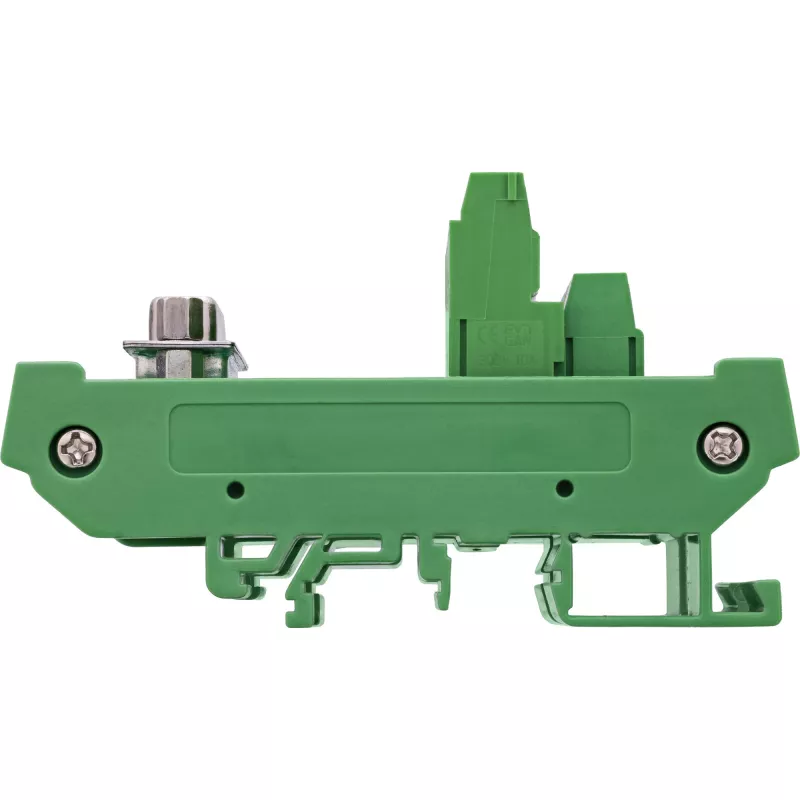

Mounting:Housing for direct mounting on DIN rail
Dimensions:approx. 87 × 79 × 51 mm (H × W × D)

InLine 92502I. Connector(s): Terminal block / D-Sub 25, Product colour: Green, Connector gender: Female/Female. Compliance certificates: RoHS, TÜV mark. Dimensions (WxDxH): 79 x 87 x 51 mm, Weight: 134 g, Width: 79 mm. Quantity per pack: 1 pc(s), Package width: 95 mm, Package depth: 125 mm. Country of origin: Taiwan
