InLine 94450S aurinkosähkön asennuskaapeli H1Z2Z2-K, 4 mm2, 50 m, musta

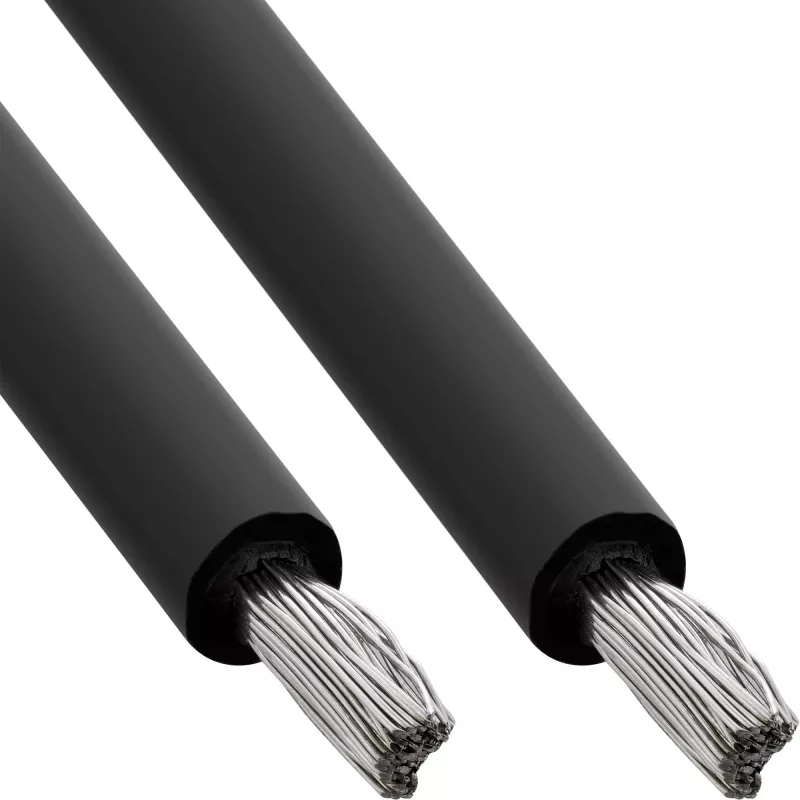

The InLine 94450S is a solar installation cable of type H1Z2Z2-K with a 4 mm² conductor cross-section, supplied in a 50 m length and black colour. It is designed for the cabling of photovoltaic systems and features a tinned copper conductor, halogen-free XLPO insulation, and resistance to ozone, weather, and UV.

Key features

• Type H1Z2Z2-K solar cable
• Conductor cross-section: 4 mm², fine-wired
• Conductor material: copper, tinned
• Insulation: halogen-free, low-smoking, cross-linked polyolefin (XLPO)
• Ozone, weather, and UV resistance tested according to EN 60 811 / 50618
• Flame resistance complies with EN 60332-1-2, LSOH (Low Smoke Zero Halogen)
• Unshielded
• Length: 50 m
• Colour: Black

Specifications

• Brand: InLine
• MPN: 94450S
• Nominal voltage: 1.0/1.0 kV AC
• Working voltage: 1.5 kV DC in accordance with EN 50618
• External cable diameter: 5.5 mm
• Nominal wall thickness of insulation: 0.7 mm
• Nominal wall thickness of coating: 0.8 mm
• DC line resistance: 5.09 Ohm/km
• Voltage test on cable: AC 6.5 kV, DC 15 kV
• Current carrying capacity: tested according to EN 50618
• Ambient temperature: -40°C to +90°C
• Min. bending radius: 22 mm
• Bending radius (static): >22 mm
• Operation temperature: -40 to +90°C
• Signal: Power
• Type: Solar cables
• Manufacturer No.: 94450S
• EAN Barcode: 4043718334506
• Country of origin: Taiwan
