InLine ammattimainen puristustyökalu RJ45-Western-liittimille 74110 InLine

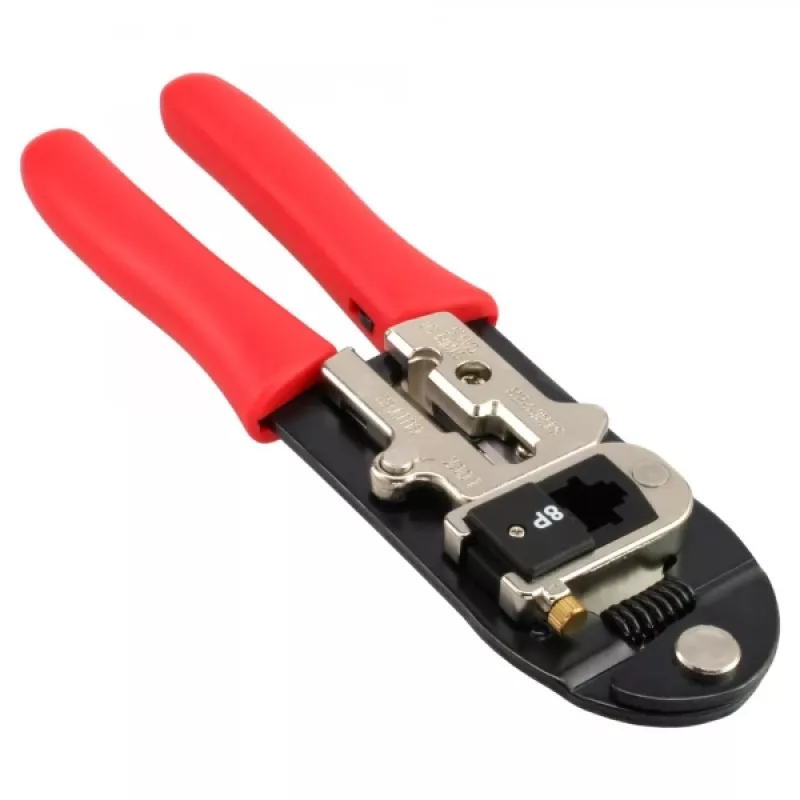

The InLine Professional Crimping Tool for RJ45 western connectors (model 74110) is designed for precise assembly of network patch cables and ISDN telephone cables using RJ45 (8P8C) plugs. The tool has a compact form factor, a comfortable grip and a robust construction suitable for repeated use in professional or home network installations. A removable crimping module is available optionally to support smaller plugs such as RJ11/RJ12 (6P6C) and RJ10 (4P4C).

Advantages

The tool provides reliable and repeatable crimping for RJ45 connectors, ensuring secure contacts and stable network connections. It combines durable materials with an ergonomic handle for comfortable operation during extended use. The removable module increases versatility by allowing work with RJ11/RJ12 and RJ10 plugs when required.

Suitable for

• Assembly of Ethernet patch cables (Cat5e/Cat6) with RJ45 (8P8C) plugs
• ISDN telephone cable termination using RJ45
• Optional termination of RJ11/RJ12 (6P6C) and RJ10 (4P4C) connectors with an additional module
• Professional network installers and DIY home network projects

Key specifications

• Model: InLine 74110
• Connector compatibility: RJ45 (8P8C); optional module for RJ11/RJ12 (6P6C) and RJ10 (4P4C)
• Brand: InLine
• EAN: 4043718136629
• Application: Network patch and ISDN telephone cable crimping

How to use

Strip the cable jacket to the appropriate length, arrange the wires in the required pinout and insert them fully into the RJ45 plug. Place the plug into the crimping jaw and squeeze the handles firmly until the crimp is completed. If terminating RJ11/RJ12 or RJ10 plugs, install the removable crimping module before crimping and follow the same procedure. Verify the crimped connection with a cable tester after assembly.

Recommendations

Use the tool on compatible 8P8C connectors and only use the optional module for 6P6C/4P4C connectors. Regularly inspect the crimping jaws for wear and clean contacts to maintain reliable performance. Test each cable with an appropriate cable tester to confirm correct wiring and continuity.
