InLine asennuskaapeli Cat.7a PiMF 4x2x0.58 AWG23, 1200MHz, LSZH, 50m

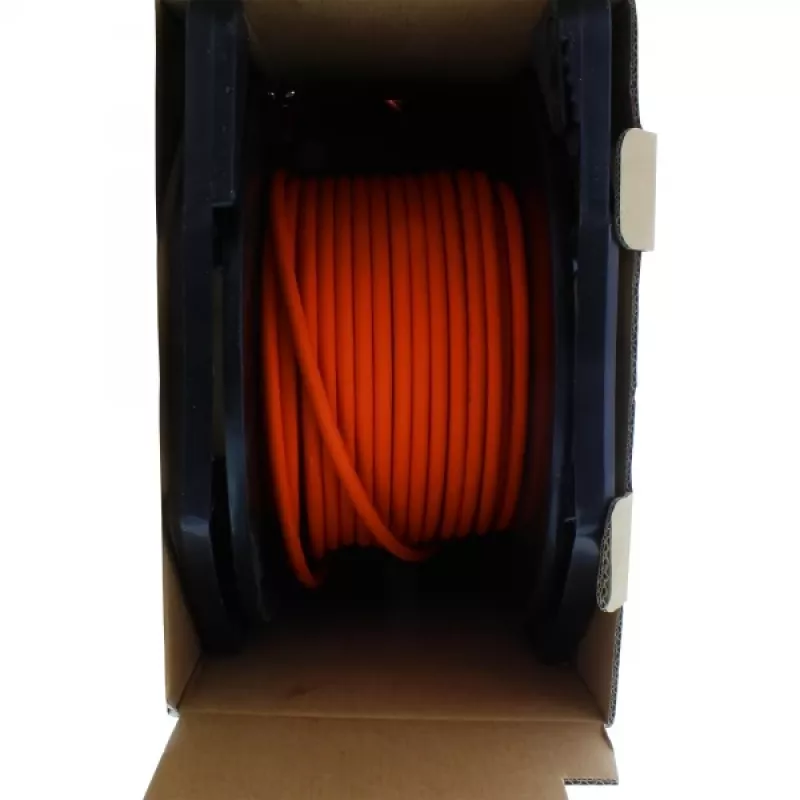

The InLine installation cable Cat.7a PiMF 4x2x0.58 (AWG23) in LSZH jacket is supplied on a cardboard drum box for simple unwinding and measurement on site. The orange S-FTP cable supports transmission up to 1200 MHz, uses full copper conductors and pair-in-metal-foil (PiMF) construction with overall braid shielding. Meter-printing along the sheath and a halogen-free outer jacket make it suitable for indoor installations where low smoke and zero halogen emission are required.

Advantages

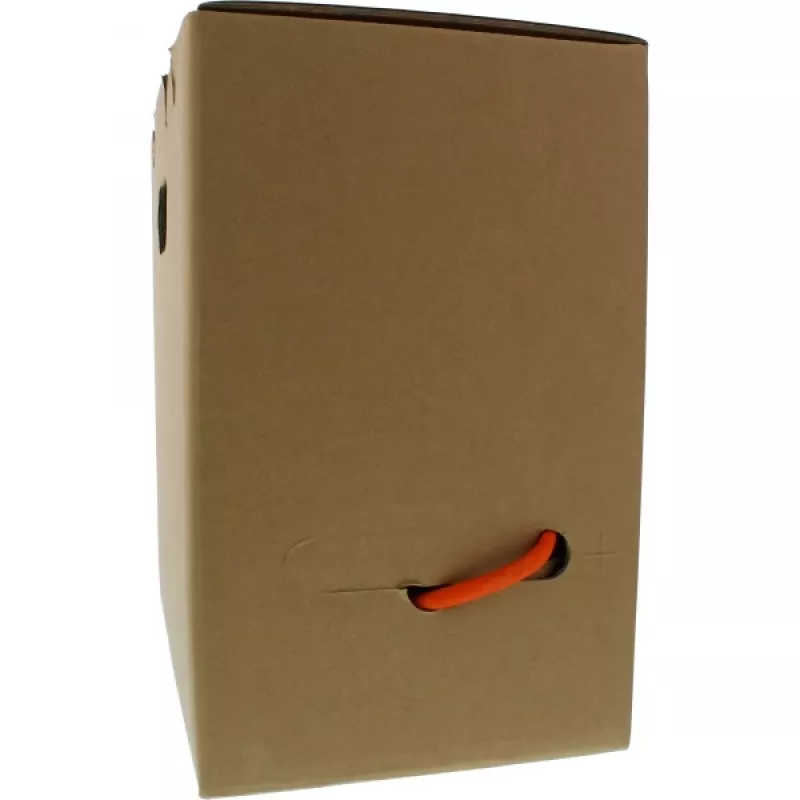

The drum box packaging enables easy handling and unwinding without additional tooling, reduces transport and handling costs for small quantities, and protects the cable from dirt and damage during storage and installation. The lightweight, stackable carton is easy to carry and can be shipped by parcel service. The cable construction with full copper conductors, S-FTP shielding and LSZH jacket provides reliable signal performance and safety in enclosed spaces.

Suitable for

• Structured cabling in offices and commercial buildings
• High-bandwidth network backbones and horizontal cabling up to 10 Gbit/s
• Indoor installations where low smoke and halogen-free materials are required
• Projects requiring easy on-site handling and precise length dispensing

Key specifications

• Cable type: Cat.7a installation cable, S-FTP, PiMF
• Conductor: full copper, 4x2xAWG23/0.58 mm
• Bandwidth: up to 1200 MHz; suitable up to 10 Gbit/s
• Impedance: 100 Ohm; DC resistance: max. 87 Ohm/km
• Sheath: LSZH (halogen-free), colour: orange

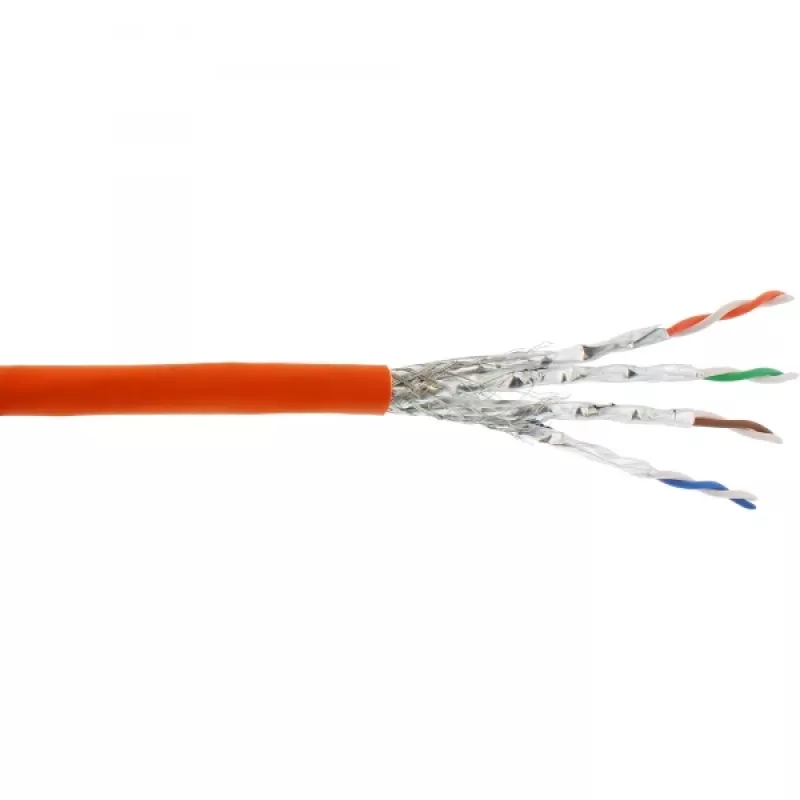

• Structure: pairs in metal foil with overall braid shielding
• Cable diameter: approx. 8.2 mm
• Temperature range: installation 0 to 50 °C; operation -20 to 60 °C
• Fire reaction: Eca according to EN 50575:2014 / A1:2016
• Marking: meter-printing on cable
• Packaging: cardboard drum box for 50 m (also available in 100 m and 300 m drum boxes; 500 m supplied on cable drum)

How to use

Unpack the drum box and place the plastic roller in the intended mounting position or simply use the box on the floor to pull out the required length. Cut the cable to length at the meter markings, strip the outer LSZH sheath and individual pair shieldings according to the connector or outlet manufacturer instructions, and terminate using appropriate connectors for Cat.7a/S-FTP cables. Follow standard practices for maintaining pair integrity and shielding continuity during termination and grounding.

Recommendations

Use the drum box packaging for quick, small-quantity deployments to reduce handling time. For runs longer than 300 m or for permanent reel-based installations, choose the 500 m cable drum option. Store and install the cable within the specified temperature range and avoid sharp bends to maintain performance.
