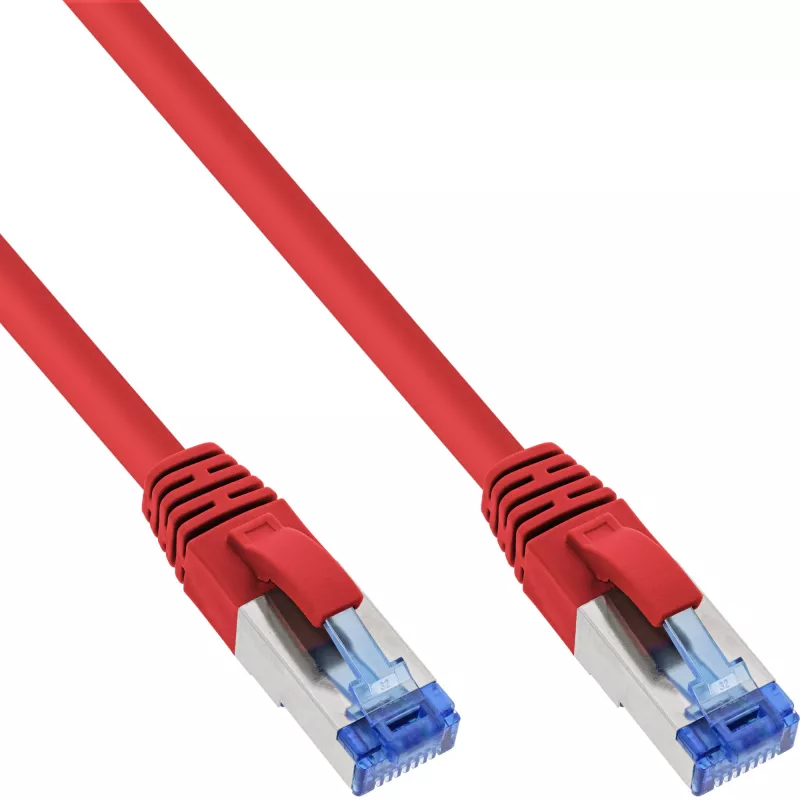

InLine B-76807R Cat.6A S/FTP (PiMf) halogeeniton patch-kaapeli, 7,5 m, punainen, 15 kpl:n pakkaus (B-Pack)

The InLine B-76807R is a Cat.6A S/FTP (PiMf) halogen-free patch cable supplied in a 15-pack. It features a red LSZH jacket and RJ45 connectors with 50µ" gold-plated contacts and snap-in protection.

Key features

• Cat.6A patch cable
• S/FTP (PiMf) shielding: overall braided shield with pair-wise foil shielding
• Halogen-free LSZH jacket
• RJ45 connectors with 50µ" gold-plated contacts and snap-in protection
• Blue-coloured connector for differentiation
• Suitable for Gigabit and 10 Gigabit applications
• Up to 500 MHz
• Includes enclosed test report
• PoE/PoE+/PoE++ support
• 15-pack (B-Pack)

Specifications

• Brand: InLine
• MPN: B-76807R
• Product colour: Red
• Cable construction: S/FTP (PiMf) 4x2xAWG26/7, solid copper wire
• Conductor material: CU (copper)
• Outer diameter: 6.2 mm
• Length: 7.5 m
• Connector type: RJ45 plug straight on both ends
• Assignment: 1:1
• Assignment according to TIA/EIA 568B2.1
• Max. supported data transfer rate: 10 Gb/s
• Max. supported PoE standard: 802.3bt
• Max. supported power: 90 W
• Operating temperature: -10 to +60°C
• Storage temperature: -20 to +70°C
• Jacket compliance: IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034
• Country of origin: Taiwan
