InLine® DC-adapteri, 4,0 x 1,7 mm, pistoke/liitin, kulma, musta

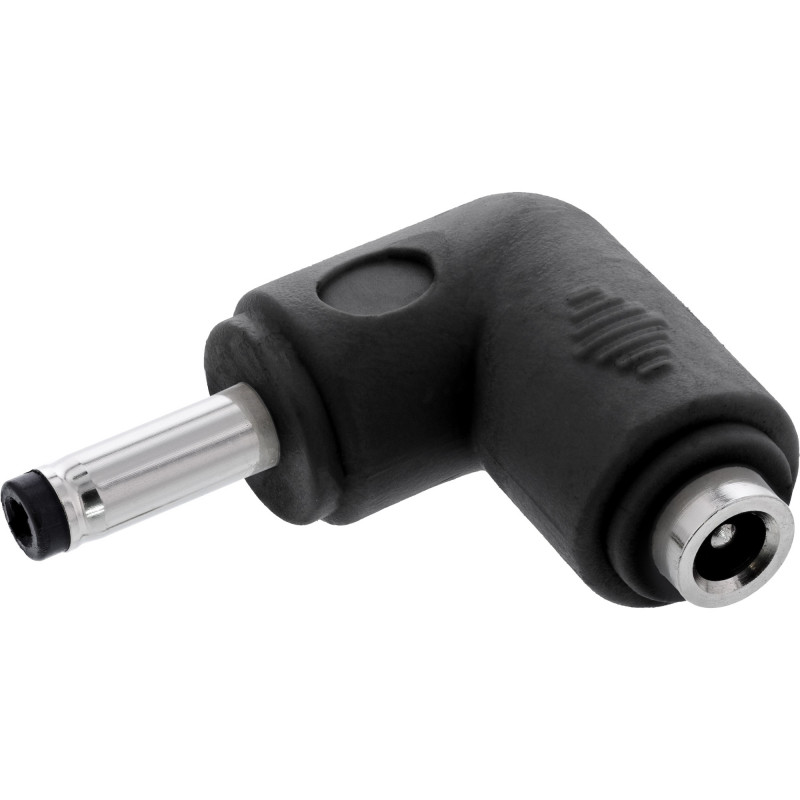

The InLine® DC adapter, 4.0 x 1.7 mm, plug/socket, angled, black is a passive adapter that connects a 4.0 x 1.7 mm DC male plug to a DC female socket of the same size. Its angled design directs the connected cable to the side, reducing the space required in front of the device connection and facilitating cable routing behind devices, close to walls, or within compact enclosures. It is rated for 12 V, a maximum of 2 A, and up to 24 W, and does not alter voltage or current.

Key features

• Angled DC adapter for space-saving and tidy cable management
• Connects a 4.0 x 1.7 mm DC male plug to a DC female socket of the same size
• 90° design facilitates cable routing behind devices, close to walls, or within compact enclosures
• Passive operation; does not alter voltage or current
• Rated for 12 V, maximum 2 A, up to 24 W
• Easy to retrofit between a compatible power supply and device connection

Specifications

• Brand: InLine®
• MPN: 26899B
• Product colour: Black
• Connection 1: DC male plug
• Connection 2: DC female socket
• Side A: 4.0 x 1.7 mm DC male plug
• Side B: 4.0 x 1.7 mm DC female socket
• Design: 4,0 x 1,7mm
• Type: Angled
• Operating voltage: 12 V
• Maximum operating current: 2 A
• Maximum power: 24 W
• Housing material: PVC
• Metal sleeves: Nickel-plated
• Signal: Power
• Article width: 2.40 cm
• Article height: 1.00 cm
• Article length: 3.00 cm
• Net weight: 0005 kg
• Weight: 0008 kg
• Packaging height: 0.015 m
• Packaging width: 0.070 m
• Packaging length: 0.125 m
• Packaging volume: 0.001 m³
• Country of origin: China
• Customs tariff number: 8536699099
• EAN Barcode: 4043718350018
• Manufacturer No.: 26899B
• Manufacturer information: INTOS ELECTRONIC AG
