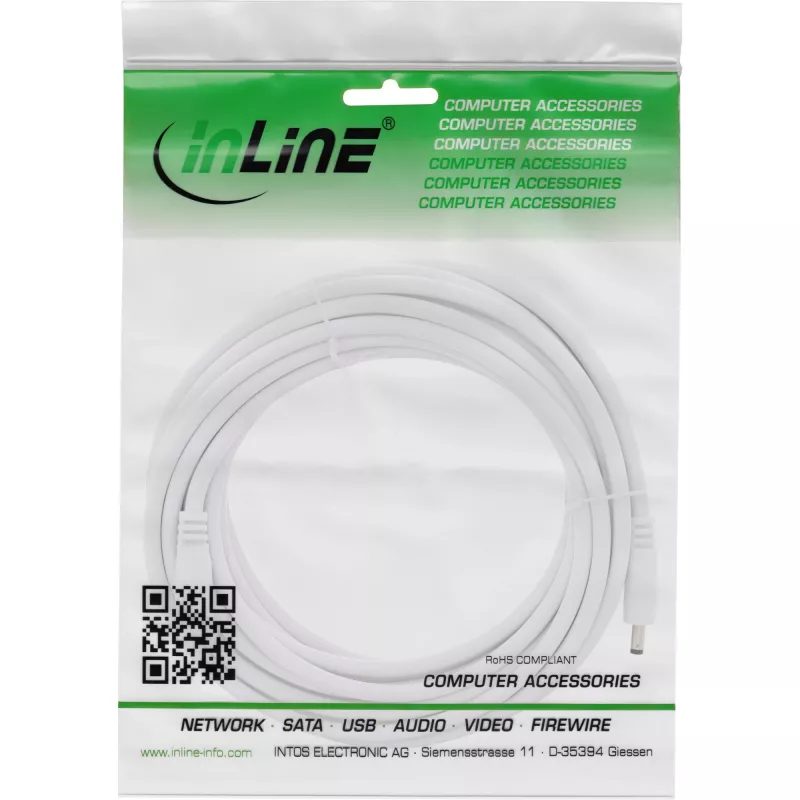

InLine DC-jatkojohto, DC-pistoke/liitin 4,0x1,7 mm, AWG 18, valkoinen 3 m

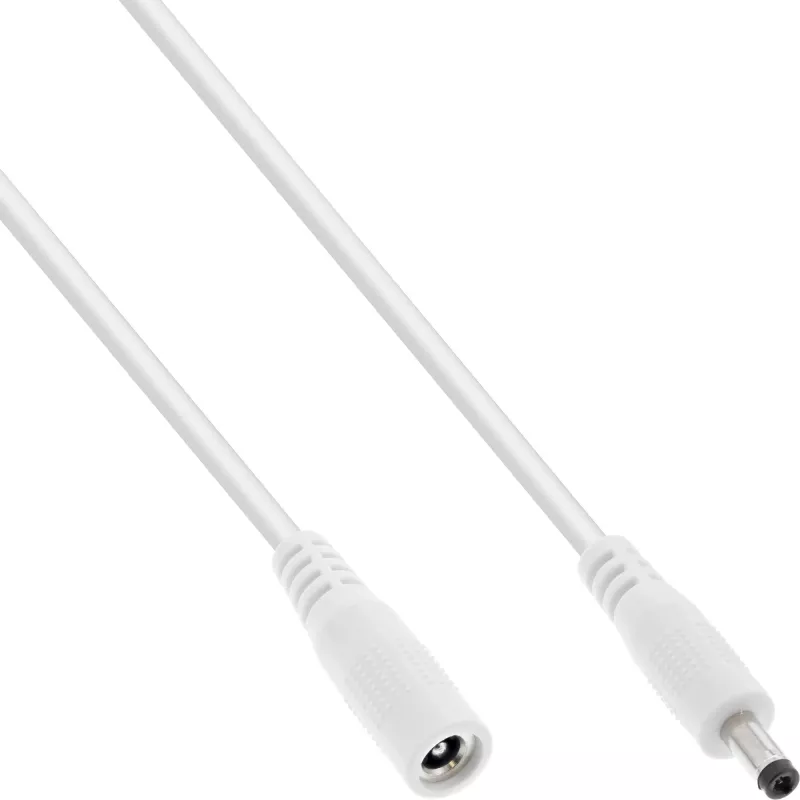

The InLine DC extension cable with 4.0 x 1.7 mm male and female connectors is designed to extend 12 V power connections. It is a 3 m white cable with AWG 18 conductors and supports an input current of up to 11.6 A, suitable for extending power to compatible devices.

Advantages

This DC extension cable provides a standardized 4.0 x 1.7 mm connection on both ends and a generous 3 m length for flexible placement of 12 V equipment. The AWG 18 conductor gauge allows safe transmission of currents up to 11.6 A, while the white jacket offers a neutral appearance for installations where color matching is required.

Suitable for

• Extending power cables for 12 V devices
• Connecting external power adapters to equipment with 4.0 x 1.7 mm DC jacks
• Home A/V and small electronics installations requiring an additional 3 m reach

Key specifications

• Connector 1: 4.0 x 1.7 mm (male)
• Connector 2: 4.0 x 1.7 mm (female)
• Cable length: 3 m
• Cable rating: AWG 18
• Maximum input current: 11.6 A
• Intended voltage: 12 V
• Colour: White

How to use

Connect the male 4.0 x 1.7 mm plug to the power output of the adapter or source and insert the female 4.0 x 1.7 mm jack into the device's DC input. Ensure the polarity matches and that the connected power source provides the correct 12 V rating. Route the 3 m cable to avoid sharp bends and protect it from pinching or heat sources.

Recommendations

Use this cable only with compatible 4.0 x 1.7 mm DC connectors and devices rated for 12 V. Do not exceed the specified current of 11.6 A. Inspect the cable and connectors periodically for damage and replace if insulation or contacts are compromised.
