InLine® DC-jatkokaapeli, kulmaliitin, 3,5 x 1,35 mm, musta, 0,5 m

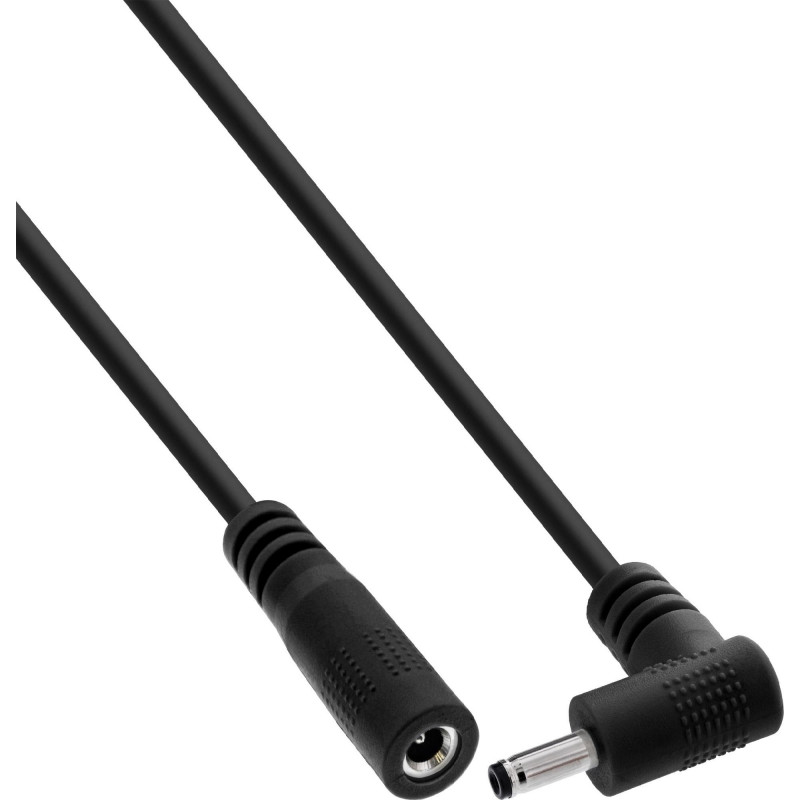

The InLine® DC extension cable with right-angle plug extends your existing DC power connection for more flexible positioning of compatible devices. Its angled DC plug and straight DC socket both measure 3.5 x 1.35 mm, allowing you to bridge the gap between power supply and device without changing adaptors. The 2-core cable features an AWG 18 conductor, a PVC sheath, and is suitable for 12–24 V DC applications.

Key features

• Extends existing DC power connections for flexible device positioning
• Angled DC plug and straight DC socket for space-saving installation
• Connector dimensions 3.5 x 1.35 mm – no adaptor changes needed
• 2-core cable with AWG 18 conductor and PVC sheath
• Suitable for 12–24 V DC power supply
• Nickel-plated contact housing
• Unshielded

Specifications

• Brand: InLine
• MPN: 26955P
• Product colour: Black
• Product type: Power Cord
• Cable length: 0.5 m
• Jacket material: Polyvinyl chloride (PVC)
• AWG wire size: 18
• Connector A: DC plug, angled
• Connector B: DC socket, straight
• Connector dimensions: 3.5 x 1.35 mm
• Cable construction: 2-core
• Outer cable diameter: 5.0 ± 0.2 mm
• Contact housing: Nickel-plated
• Operating voltage: 12–24 V (DC)
• Maximum power: 140 W
• Shielding: Unshielded
• UL: No
• EAN: 4043718349548
• Country of origin: China
