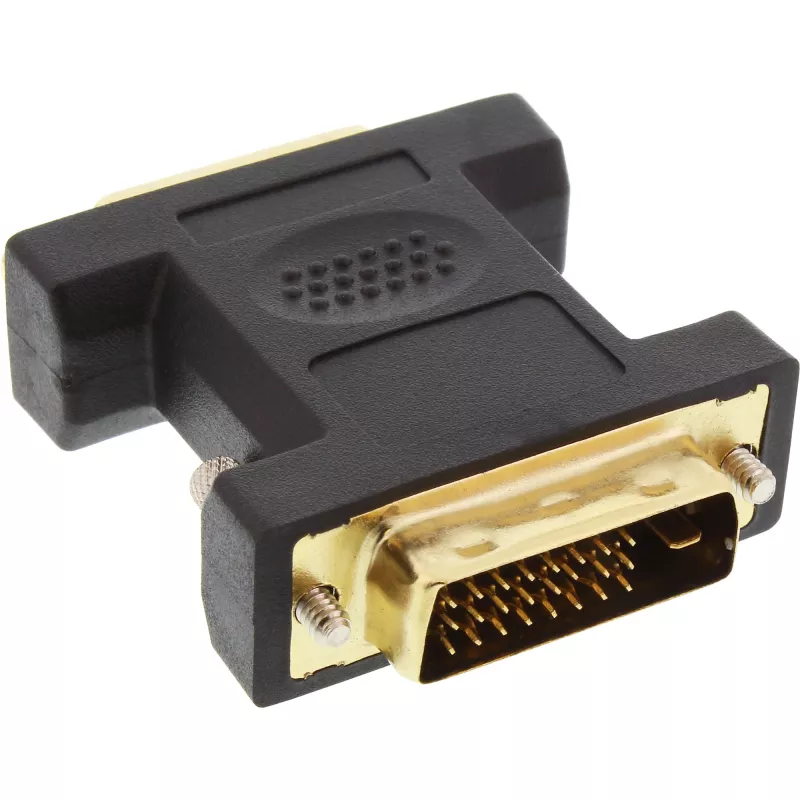

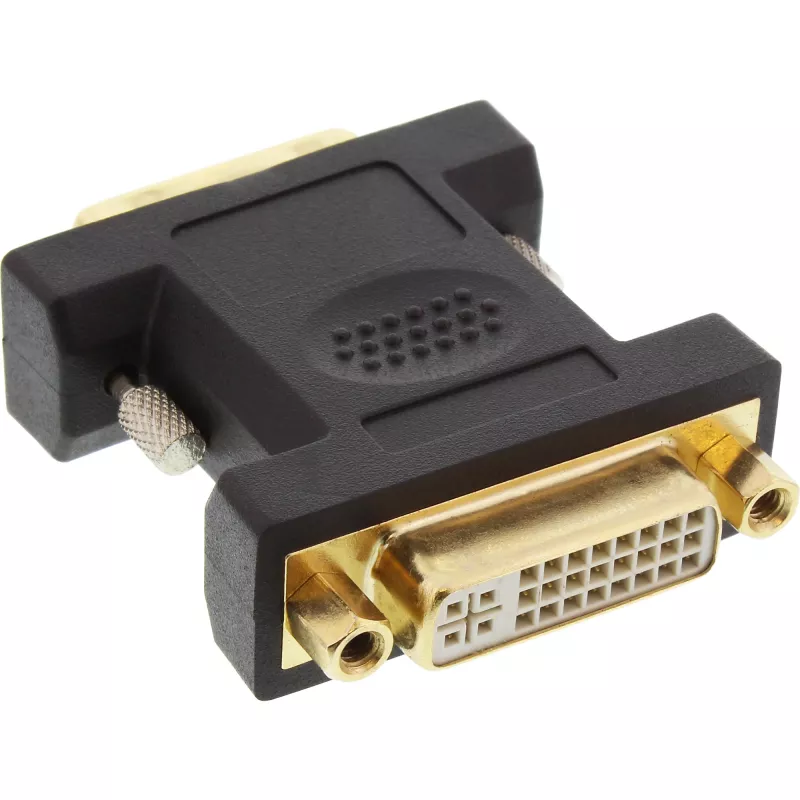

InLine DVI-D-sovitin DVI-I 24+5 naaras / DVI-D 24+1 uros, kullattu

The InLine DVI-D Adapter provides a compact solution for connecting DVI-I and DVI-D devices. It features a DVI-I 24+5 female connector on one side and a DVI-D 24+1 male connector on the other, with gold-plated contacts to improve signal transfer and resist corrosion. The adapter comes in a black finish and is intended for straightforward, short-distance signal routing between compatible video sources and displays.

Advantages

The gold-plated contacts reduce contact resistance and help maintain signal integrity. The combination of a DVI-I female and DVI-D male connector allows connection of digital-only DVI-D displays to devices with mixed DVI-I ports. Its compact, passive design requires no external power and introduces minimal additional components between source and display. The neutral black housing blends with most AV setups.

Suitable for

• Connecting a DVI-I equipped graphics card to a DVI-D monitor or projector
• Converting cable gender in desktop or rack-mounted AV installations
• Temporary setups for presentations, testing, or equipment rearrangement

Key specifications

• Connector 1: DVI-I 24+5 female (accepts analog and digital pins)
• Connector 2: DVI-D 24+1 male (digital-only output)
• Contact plating: gold-plated contacts for improved conductivity and corrosion resistance
• Housing colour: black
• Design: passive adapter, no active signal conversion

How to use

Align the DVI-D 24+1 male connector of the adapter with the DVI input on the monitor or projector and insert gently until it seats securely. Connect the DVI-I 24+5 cable or port to the female side of the adapter, ensuring proper pin alignment. No software or power supply is required. Verify the display settings on your source device and adjust resolution or refresh rate as needed to match the monitor capabilities.

Recommendations

Use this adapter for direct digital connections only; it does not convert analog signals to digital. For longest life, avoid bending connected cables sharply at the adapter and keep the contact area clean. If the connected device requires analog signals, use an appropriate converter rather than this passive adapter.
