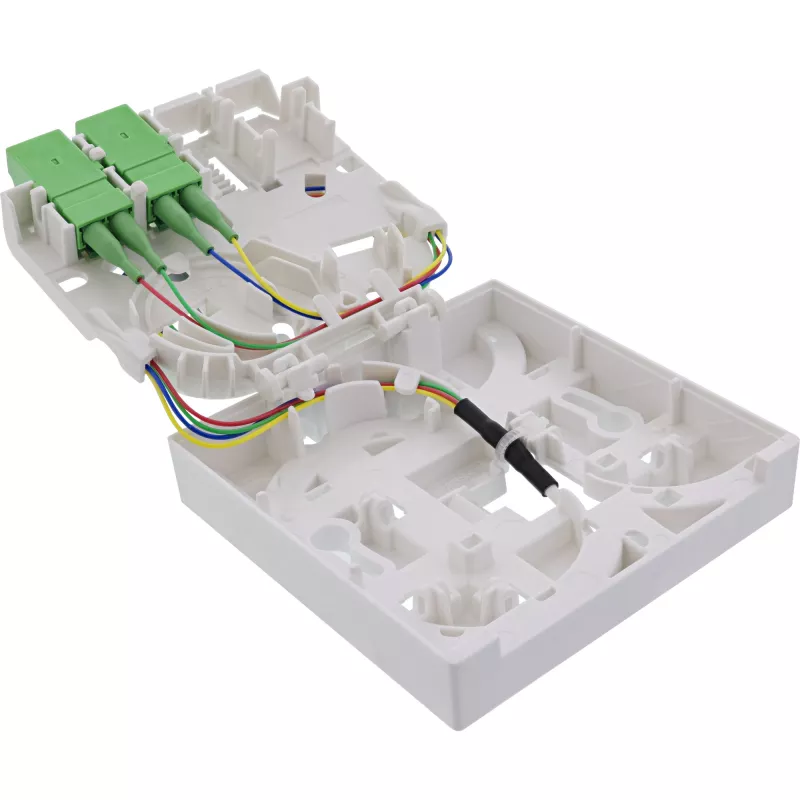

InLine FTTH-liitäntärasia valmiiksi koottu 4x LC/APC 9/125µm 40 m

Fast and secure FTTH extension:Pre-terminated OS2 single-mode cable with 4x LC/APC 8° connectors for time-saving installations without splicing.
Reliable signal quality:High-quality fiber optic connection (9/125 µm) for minimal attenuation losses and high transmission stability.
Flexible application options:Ideal for surface mounting in residential and technical areas as well as for retrofitting existing infrastructures.
Multiple connections possible:Four connections for the simultaneous supply of multiple end devices or residential units – perfect for apartment buildings.
Installation-friendly design:Compact, unobtrusive housing in white with pull-in aid and mounting material for quick on-site use.

The InLine® FTTH extension box offers system houses and installation companies a well-designed solution for fiber optic extension from the house connection point (HÜP) to the desired end points – for example, in server rooms, technical centers, or residential units. It enables flexible and efficient cabling, especially in buildings with unfavorably located HÜPs.

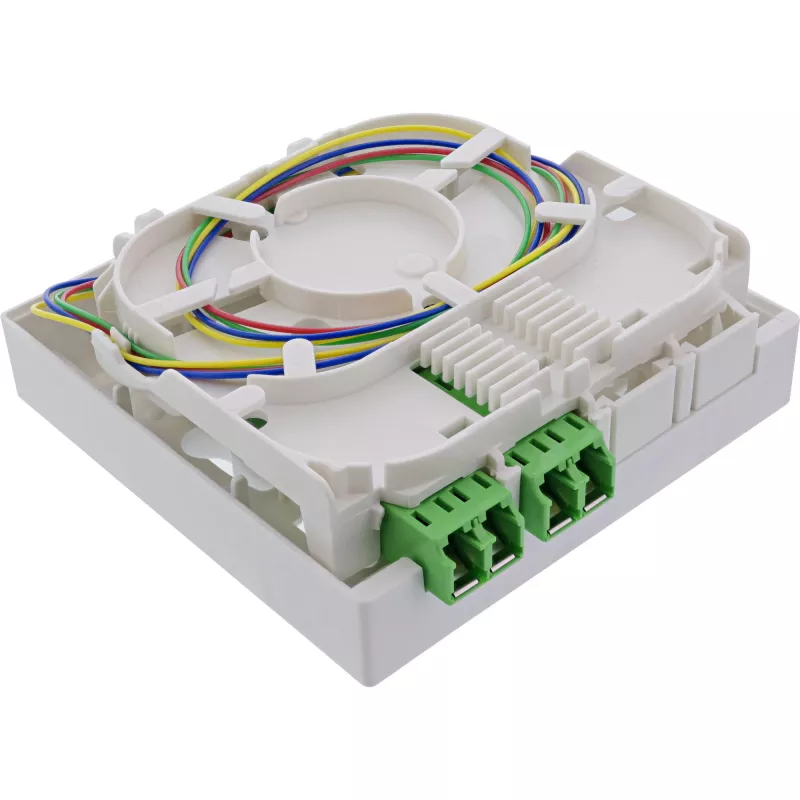

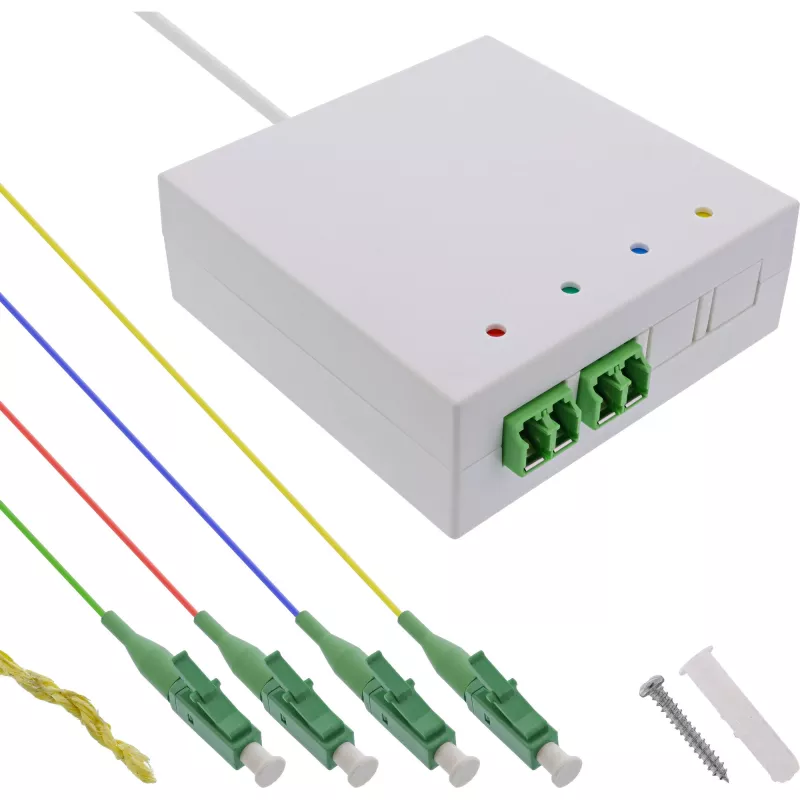

The four-fiber OS2 single-mode cable (9/125 µm) is equipped with LC/APC 8° connectors on both sides and is pre-assembled. This significantly reduces installation times and ensures a fail-safe connection without time-consuming splicing work. The four integrated LC sockets allow the connection of multiple fiber optic cables – for example, to supply four apartments or end devices via a central patch panel.

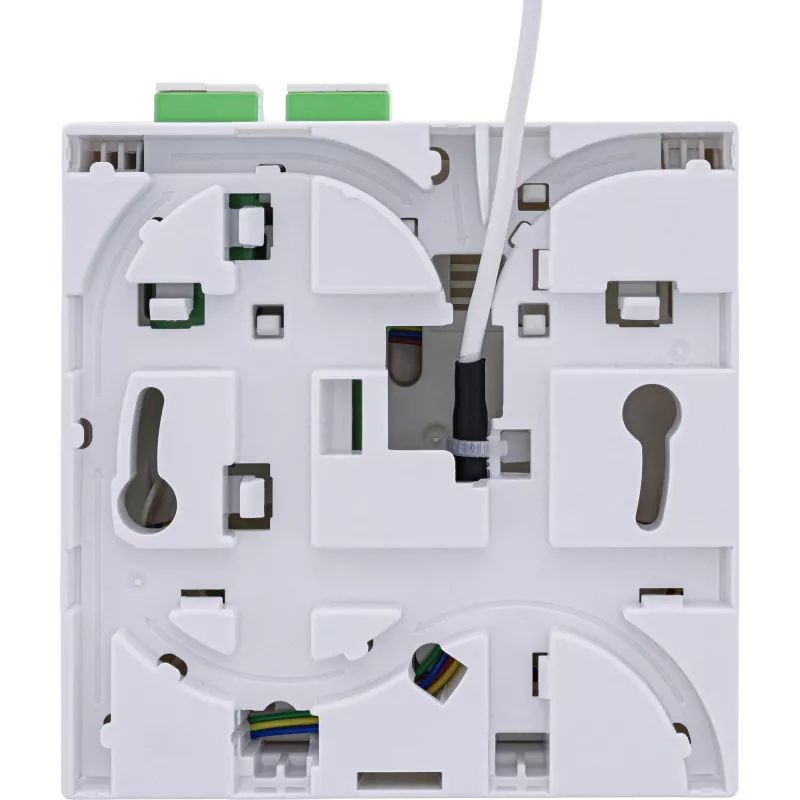

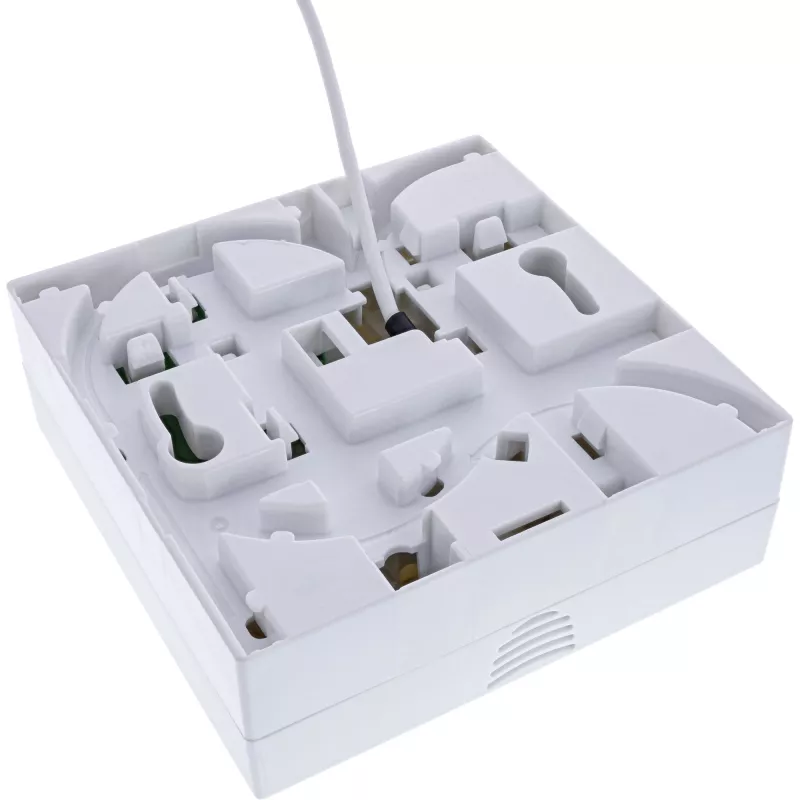

The connection box is suitable for simple surface mounting on walls or on a flush-mounted box with 60 mm screw spacing. The neutral white housing color blends harmoniously into a wide variety of environments – from technical rooms to living areas.

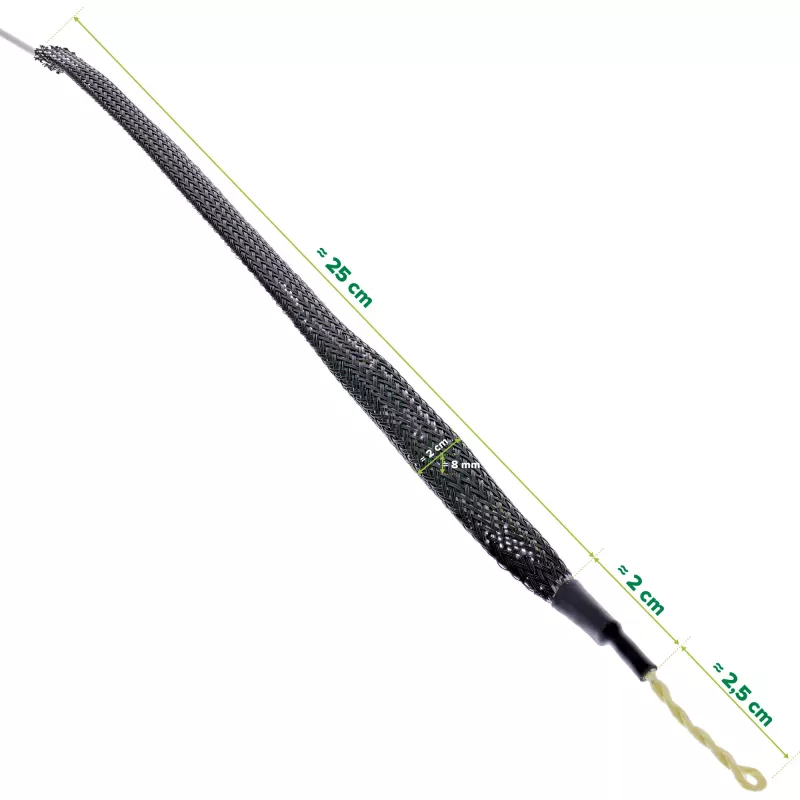

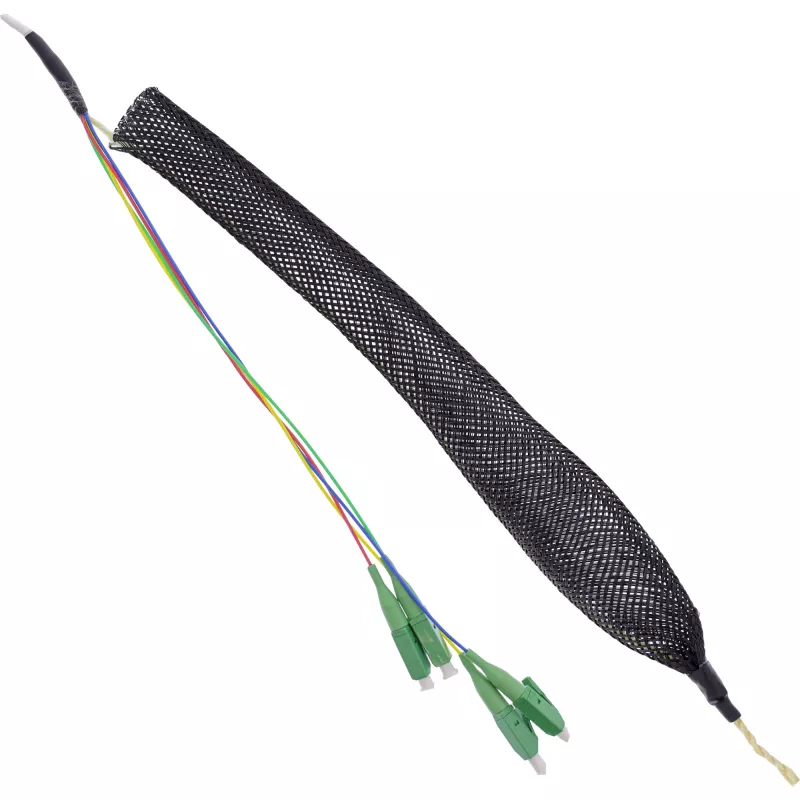

Thanks to the included pull-through aid, the cable can be easily laid through empty conduits with a minimum diameter of 20 mm. Mounting screws are included in the scope of delivery.The minimum bending radius for pulling cables into conduit pipes is 300 mm.
Whether for new installations or retrofits, this extension box provides professional installers with a powerful, easy-to-install, and reliable component for FTTH expansion.

Housing dimensions: 80 × 80 × 28 mm
Mounting type: Surface-mounted
Minimum diameter of conduit: 20 mm
Fiber: 4 fibers according to G657.A2, OS2 single mode 9/125µm, color-coded (yellow, green, blue, red)
Halogen-free jacket, CPR B2ca-s1a.d0.a1, color: white, diameter approx. 2.2 mm
Tensile strength: 100 N
Compressive strength: 100 N / 100 mm
Color: White
Screw spacing: 60 mm (for flush-mounted boxes)
Includes: Pull-in aid, mounting screws

InLine FTTH connection box pre-assembled 4x LC/APC 9/125µm 40m. Connector type: LC/APC, Connector gender: Male/Female, Fibre optic type: OS2. Width: 80 mm, Depth: 80 mm, Height: 30 mm. Package width: 235 mm, Package depth: 250 mm, Package height: 50 mm. Country of origin: Germany, Package volume: 2900 cm³
