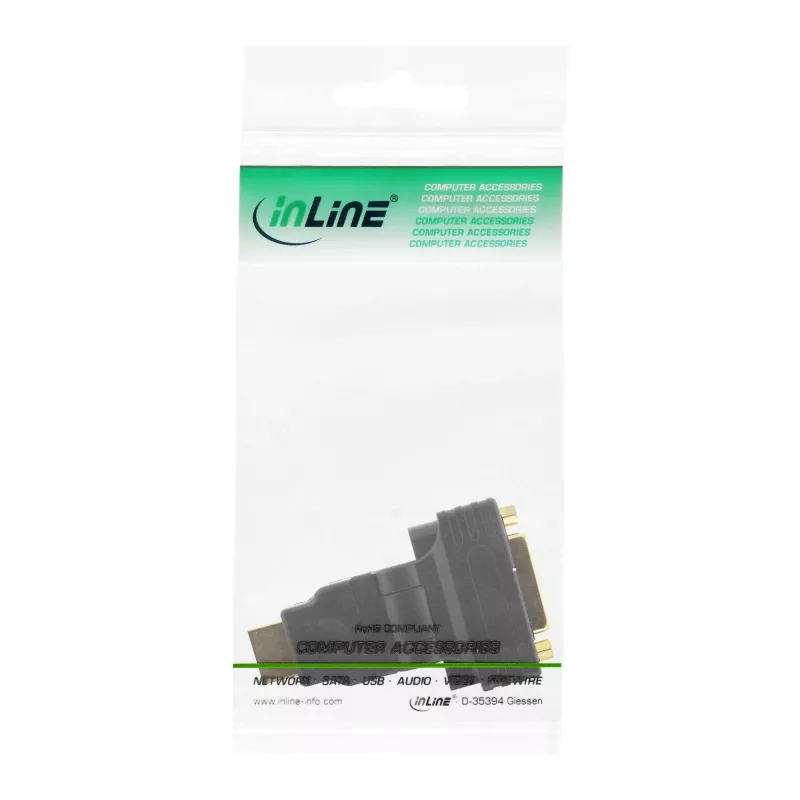

InLine HDMI–DVI-adapteri HDMI-uros / 24+1 naaras 180° kulma kullattu

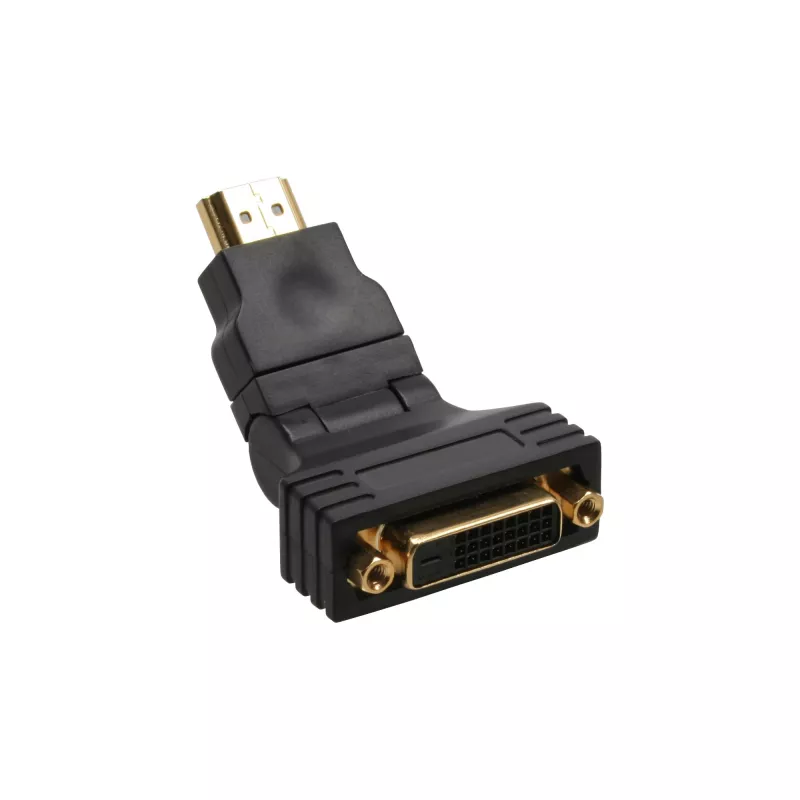

The InLine HDMI to DVI Adapter HDMI male 24+1 female 180° angled gold plated provides a compact interface solution for connecting HDMI-equipped sources to DVI displays. The adapter combines an HDMI male 24+1 contact arrangement with a DVI-D female port in a 180° angled housing. Gold-plated contacts improve contact reliability and resist corrosion, while the black housing is designed for unobtrusive installation in constrained or behind-equipment spaces.

Advantages

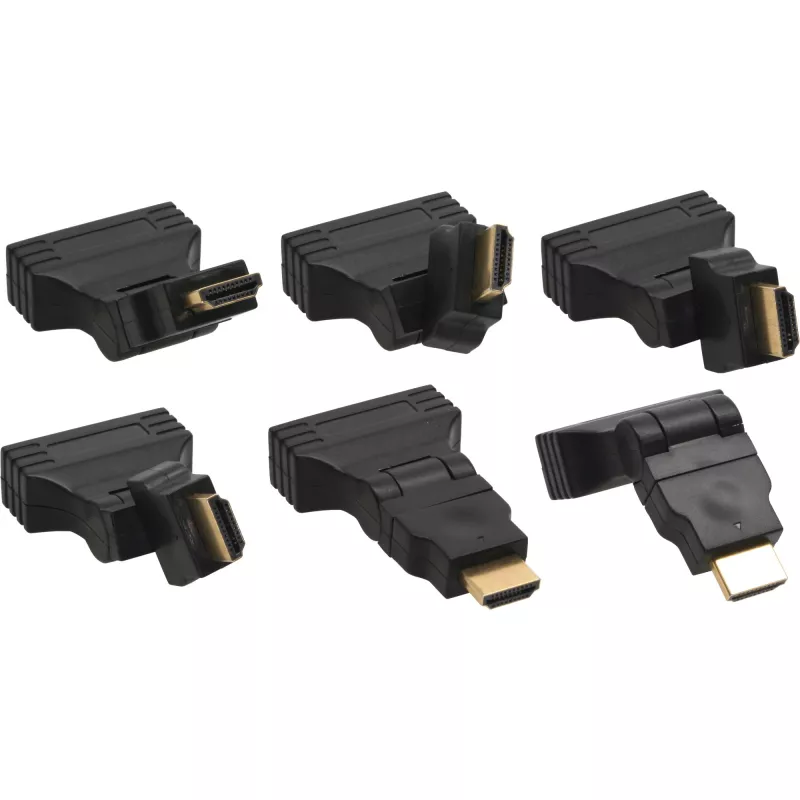

The 180° angled design reduces stress on cables and allows connection in tight or recessed mounting locations. Gold-plated contacts contribute to consistent signal transmission and increased resistance to oxidation. The adapter's small form factor and black finish enable discreet placement behind monitors, PCs, or AV equipment without adding bulk.

Suitable for

• Connecting HDMI source devices to DVI-D displays or projectors
• Use in tight spaces where a straight connector would not fit
• Home entertainment setups, office workstations, and presentation systems

Key specifications

• Connector 1: DVI-D female
• Connector 2: DVI-D (HDMI male 24+1 compatible wiring)
• Orientation: 180° angled connector
• Contacts: gold plated
• Colour: black

How to use

Ensure both source and display devices are powered off before making the connection. Insert the HDMI male 24+1 end into the HDMI output of the source device and connect a DVI-D cable to the adapter's DVI-D female port, then connect the other end of the DVI-D cable to the display or projector. After secure connections are made, power on the devices and select the appropriate input on the display. Verify image resolution and settings on both devices to ensure compatibility.

Recommendations

Use the adapter in equipment racks or behind displays to minimize cable strain; avoid excessive bending at the adapter and ensure connectors are clean and free of debris. This passive adapter transmits digital video signals but does not convert analog signals or add audio support—verify that the target display supports the required DVI-D digital signal format.
